AE81-FEKDS (1983)
Toyota Sprinter

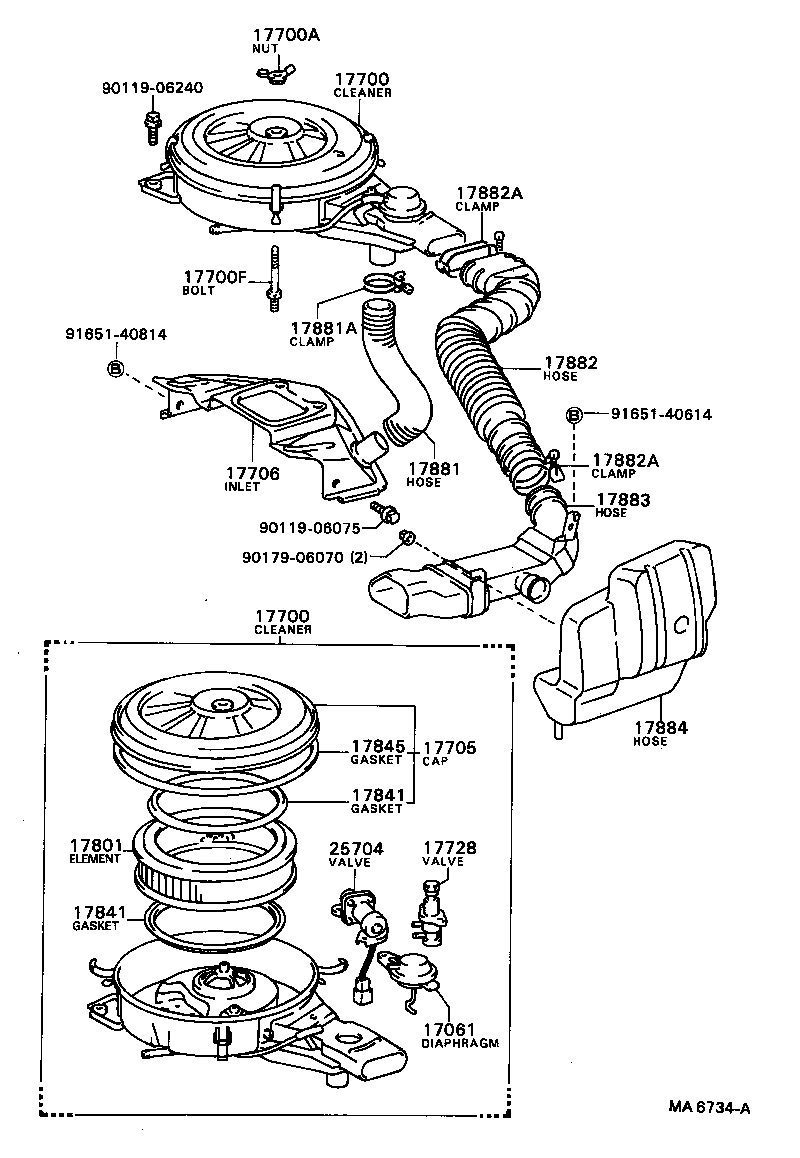

(8305-8505)2ALU,3ALU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-15040 |
3ALU..AE81 |
1 | ||
| 17061-15030 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15210 |
3ALU..AE81 |
1 | ||
| 17700-15160 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700-15161 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15210 |
3ALU..AE81 |
1 | ||
| 17700-15160 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700-15161 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06009 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06039 |
2ALU,3ALU..AE80,81 |
1 | ||
| 90116-06142 |
3ALU..AE81 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15070 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17705-15100 |
3ALU..AE81 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-15080 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-15060 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17728-15040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17728-15040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17801-10030 |
3ALU..AE81 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2ALU,3ALU..AE80,81 |
2 | ||
| 17845-10020 |
3ALU..AE81 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2ALU,3ALU..AE80,81 |
2 | ||
| 17845-10020 |
3ALU..AE81 |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-37020 |
2ALU,3ALU..AE80,81 *G,L=1060 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-74040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17881-63010 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17881-16110 |
3ALU..AE81 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90929-01117 |
2ALU,3ALU..AE80,81 |
1 | ||
| 90929-01073 |
2ALU,3ALU..AE80,81 |
1 | ||
| 90929-01145 |
3ALU..AE81 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-12060 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2ALU,3ALU..AE80,81 AIR CLEANER SIDE |
1 | ||
| 96111-10650 |
2ALU,3ALU..AE80,81 BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2ALU,3ALU..AE80,81 AIR CLEANER SIDE |
1 | ||
| 96111-10650 |
2ALU,3ALU..AE80,81 BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-12020 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-12020 |
2ALU,3ALU..AE80,81 |
1 | ||
| 25704 - VALVE SUB-ASSY, ELECTRIC AIR CONTROL | ||||
| 25704-15030 |
2ALU,3ALU..AE80,81 |
1 | ||
| 25704-15060 |
3ALU..AE81 |
1 | ||
| Common parts | ||||
| 90119-06075 | ||||
| 90119-06240 | ||||
| 90179-06070 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||

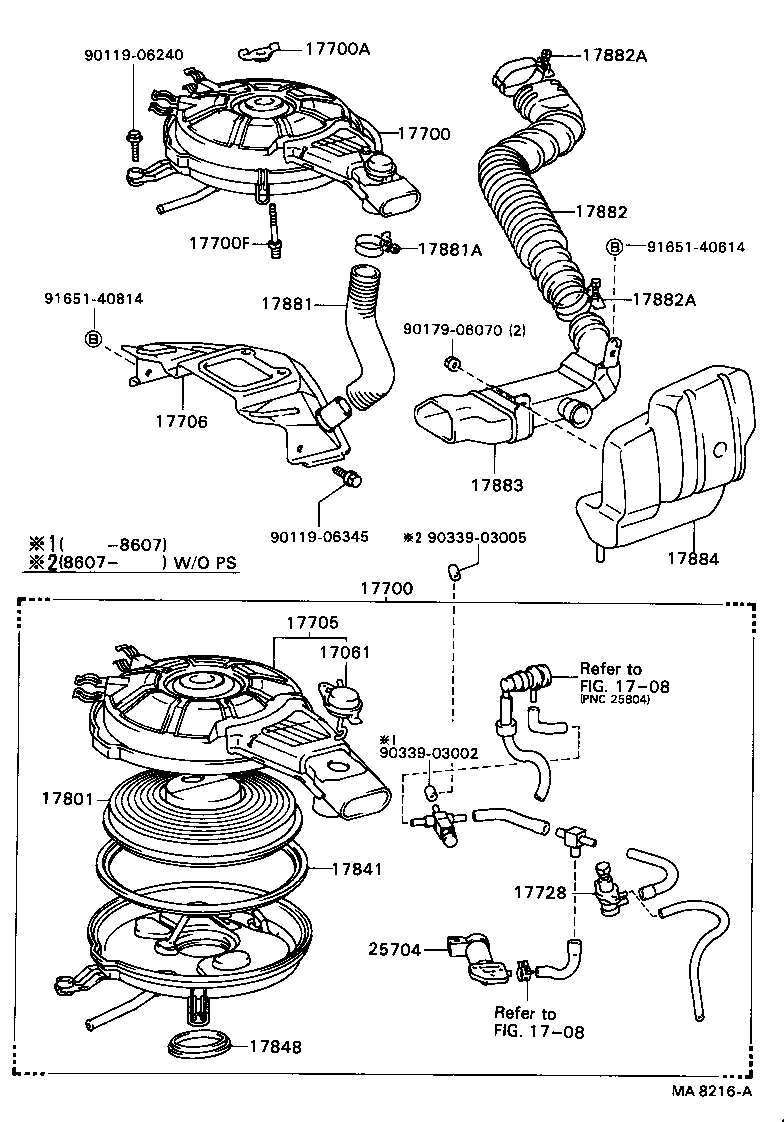

(8505- )3ALU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-15040 |
3ALU..AE81 |
1 | ||
| 17061-15030 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15210 |
3ALU..AE81 |
1 | ||
| 17700-15160 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700-15161 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15210 |
3ALU..AE81 |
1 | ||
| 17700-15160 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700-15161 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06009 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06039 |
2ALU,3ALU..AE80,81 |
1 | ||
| 90116-06142 |
3ALU..AE81 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15070 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17705-15100 |
3ALU..AE81 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-15080 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-15060 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17728-15040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17728-15040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17801-10030 |
3ALU..AE81 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2ALU,3ALU..AE80,81 |
2 | ||
| 17845-10020 |
3ALU..AE81 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-10020 |
3ALU..AE81 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-74040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17881-63010 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17881-16110 |
3ALU..AE81 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90929-01117 |
2ALU,3ALU..AE80,81 |
1 | ||
| 90929-01073 |
2ALU,3ALU..AE80,81 |
1 | ||
| 90929-01145 |
3ALU..AE81 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-12060 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2ALU,3ALU..AE80,81 AIR CLEANER SIDE |
1 | ||
| 96111-10650 |
2ALU,3ALU..AE80,81 BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2ALU,3ALU..AE80,81 AIR CLEANER SIDE |
1 | ||
| 96111-10650 |
2ALU,3ALU..AE80,81 BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-12020 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-12020 |
2ALU,3ALU..AE80,81 |
1 | ||
| 25704 - VALVE SUB-ASSY, ELECTRIC AIR CONTROL | ||||
| 25704-15030 |
2ALU,3ALU..AE80,81 |
1 | ||
| 25704-15060 |
3ALU..AE81 |
1 | ||
| Common parts | ||||
| 90119-06240 | ||||
| 90119-06345 | ||||
| 90179-06070 | ||||
| 90339-03002 | ||||
| 90339-03005 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1708 | ||||
