AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2ALU,3ALU

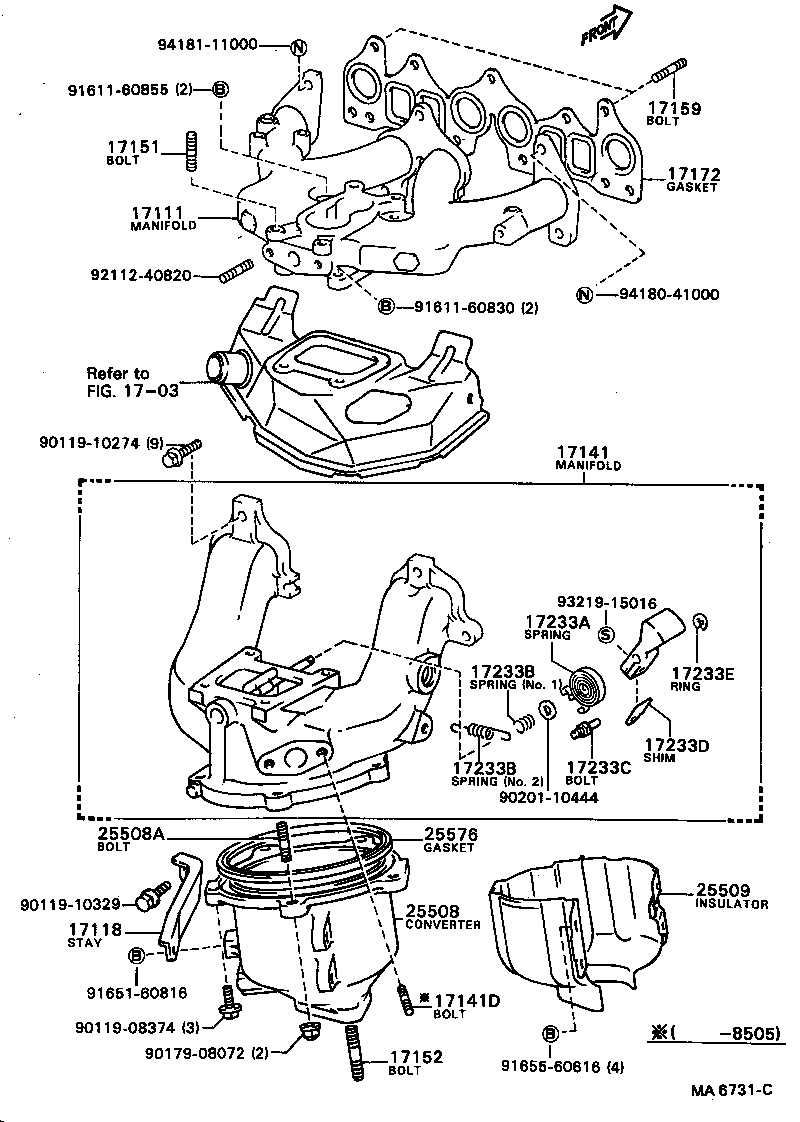

Click highlighted areas on diagram

diagram 1703 17111 17118 17141 17141D 17151 17152 17159 17172 17233A 17233B 17233B 17233C 17233D 17233E 25508 25508A 25509 25576 9011908374 9011910274 9011910329 9017908072 9020110444 9161160830 9161160855 9165160816 9165560616 9211240820 9321915016 9418041000 9418111000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-15030

2ALU,3ALU..AE80,81

 1
17118 - STAY, MANIFOLD
17118-15050

2ALU,3ALU,4AELU..AE8#

 1
17141 - MANIFOLD, EXHAUST
17140-15110

3ALU..AE81

 1
17140-15090

2ALU,3ALU..AE80,81

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

2ALU,3ALU,4AELU..AE8#

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-40832

2ALU,3ALU..AE80,81

 4
90116-08214

2ALU,3ALU..AE80,81

 4
90116-08216

2ALU,3ALU..AE80,81

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2ALU,3ALU,4A#..AE8#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

2ALU,3ALU..AE80,81

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-15010

2ALU,3ALU..AE80,81

 1
17233A - SPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
90510-06001

2ALU,3ALU..AE80,81

 1
17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
90507-08006

2ALU,3ALU..AE80,81

NO.2

 1
90501-08022

2ALU,3ALU..AE80,81

NO.1

 1
17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
90507-08006

2ALU,3ALU..AE80,81

NO.2

 1
90501-08022

2ALU,3ALU..AE80,81

NO.1

 1
17233C - BOLT(FOR COUNTER WEIGHT)
90109-10045

2ALU,3ALU..AE80,81

 1
17233D - SHIM(FOR COUNTER WEIGHT)
90910-10005

2ALU,3ALU..AE80,81

 1
17233E - RING, E(FOR COUNTER WEIGHT)
96160-00800

2ALU,3ALU..AE80,81

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-15010

2ALU,3ALU,4AELU..AE8#

 1
25508-16020

3ALU,4AELU..AE8#

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-08171

2ALU,3ALU,4AELU..AE8#

 2
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25509-15010

2ALU,3ALU,4AELU..AE8#

 1
25576 - GASKET, MANIFOLD CONVERTER
25576-15010

2ALU,3ALU,4AELU..AE8#

 1
Common parts
90119-08374
90119-10274
90119-10329
90179-08072
90201-10444
91611-60830
91611-60855
91651-60816
91655-60616
92112-40820
93219-15016
94180-41000
94181-11000
