AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

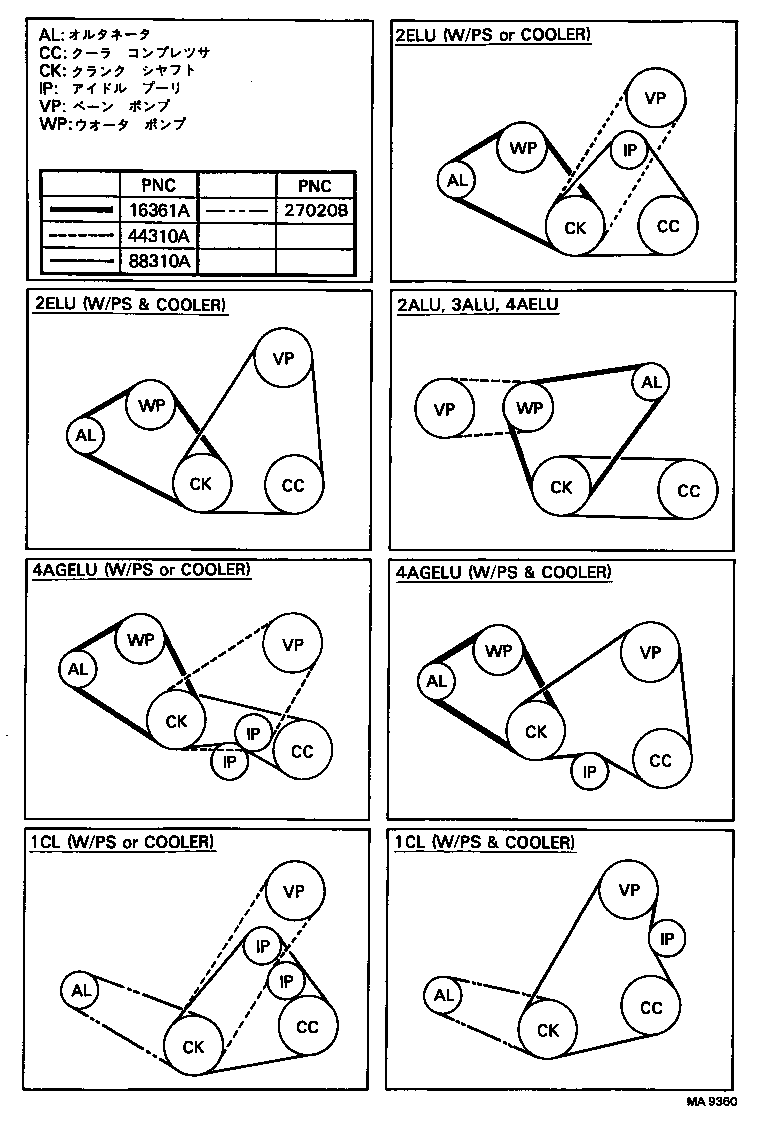

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-00970

2ALU,3ALU,4AELU..AE8#

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50630

AE8#..DX,SE,XL,ZX

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00870

AE8#..DX,SE,SPD,SR,SX,XL,ZX

 1
