AE80-FEKBS (1983)
Toyota Sprinter
Production
May 1983
-
May 1985
Engine
2ALU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

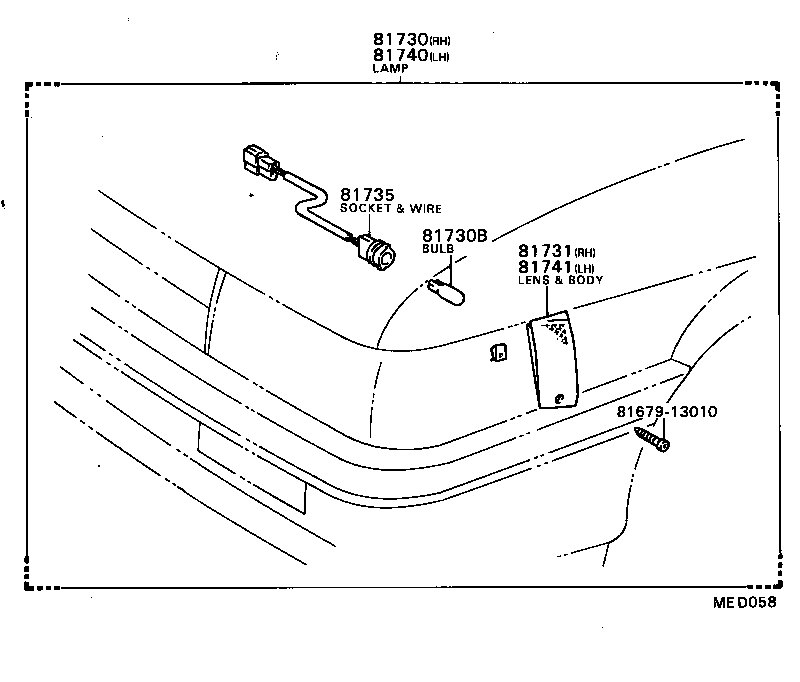

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-12190 |
AE8#,CE80,EE80 |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 99132-12050 |
AE8#,CE80,EE80 12V 5W,12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-12190 |
AE8#,CE80,EE80 |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 81735-12190 |
AE8#,CE80,EE80 |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-12180 |
AE8#,CE80,EE80 |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81741-12180 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 81679-13010 | ||||
