AE80-FEKBS (1983)

Toyota Sprinter

Production May 1983 - May 1985
Engine 2ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

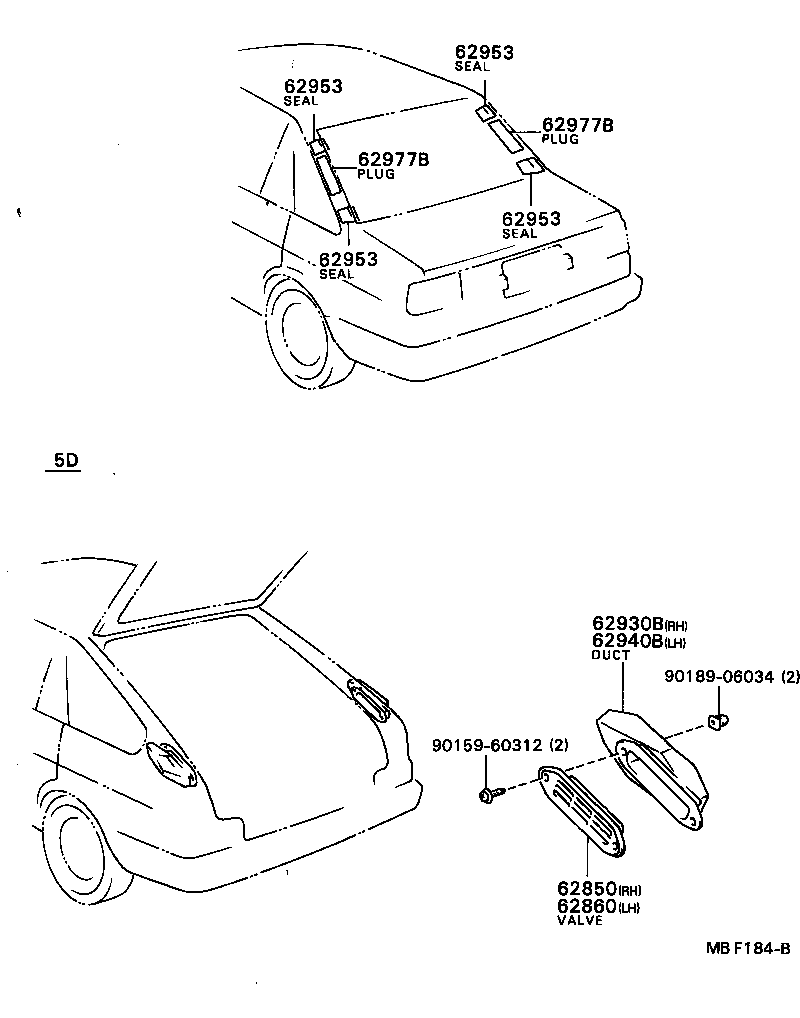

Click highlighted areas on diagram

diagram 62850 62860 62930B 62940B 62953 62953 62953 62953 62977B 62977B 9015960312 9018906034
Part # Description Qty Price
62953 - SEAL, QUARTER VENT DUCT, NO.1
62957-12060

AE8#,CE80,EE80..4D

 4
62953 - SEAL, QUARTER VENT DUCT, NO.1
62957-12060

AE8#,CE80,EE80..4D

 4
62953 - SEAL, QUARTER VENT DUCT, NO.1
62957-12060

AE8#,CE80,EE80..4D

 4
62953 - SEAL, QUARTER VENT DUCT, NO.1
62957-12060

AE8#,CE80,EE80..4D

 4
62977B - PLUG, ROOF SIDE DUST, NO.1
62977-12010

AE8#,CE80,EE80..4D

 2
62977B - PLUG, ROOF SIDE DUST, NO.1
62977-12010

AE8#,CE80,EE80..4D

 2
Common parts
90159-60312
90189-06034
