AE80-FEKBS (1983)
Toyota Sprinter
Production
May 1983
-
May 1985
Engine
2ALU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

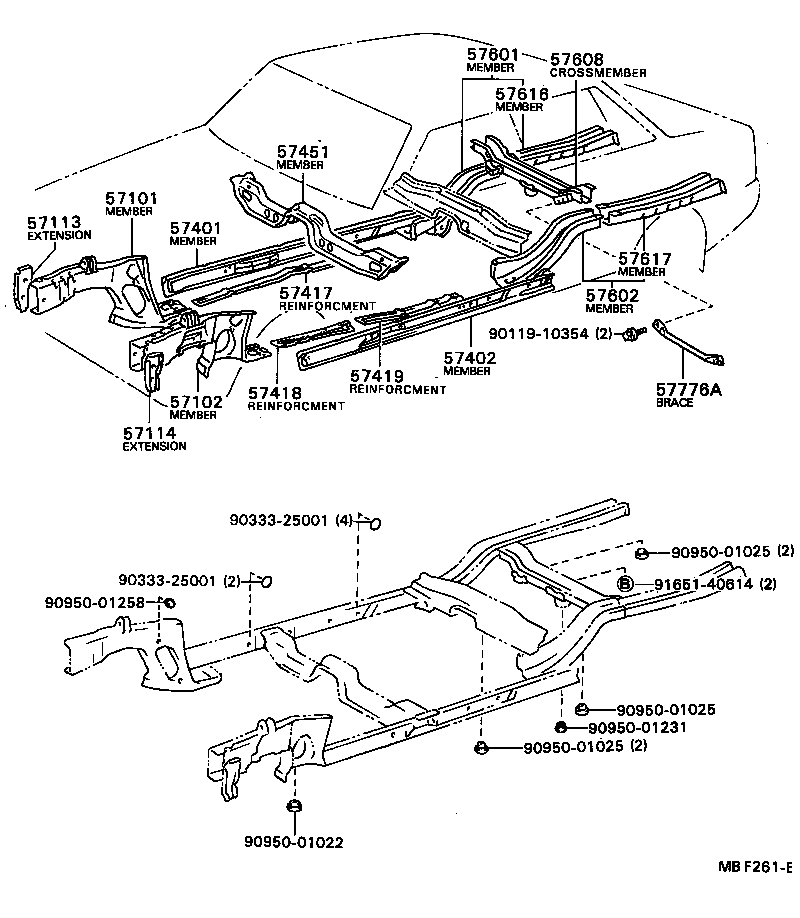

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12230 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12230 |
AE8#,EE80..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12090 |
AE8#,CE80,EE80 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12090 |
AE8#,CE80,EE80 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-12180 |
AE8#,CE80,EE80 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-12180 |
AE8#,CE80,EE80 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12060 |
AE8#,CE80 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-20030 |
AE8#,CE80 |
1 | ||
| 57419 - REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2 | ||||
| 57419-12010 |
AE8#,CE80 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-12040 |
AE8#,CE80,EE80 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12370 |
AE8#..DX,GT,SE,SPD,SR,SX,XL W/O *FFS |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12310 |
AE8#,CE80..DX,GT,SE,SPD,SR,SX,XL W/O *FFS |
1 | ||
| 57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 57606-12050 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 57616 - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-16902 |
AE8#,CE80,EE80 |
1 | ||
| 57617 - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-16902 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90119-10354 | ||||
| 90333-25001 | ||||
| 90950-01022 | ||||
| 90950-01025 | ||||
| 90950-01231 | ||||
| 90950-01258 | ||||
| 91651-40614 | ||||
