AE70-FSMES (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(7903-8108)

Click highlighted areas on diagram

diagram 86011 86120 86124 86124 86125 86125 9017009167 9017009167 9020109365 9020109365
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-19365

AE70,KE70,TE7#

AM/FM,MULTIPLEX

 1
86120 - RECEIVER ASSY, RADIO
86120-12230

AE70,KE70,TE7#

AM

 1
86120-14420

AE70,CE70,KE70,TE71

AM

 1
86120-12240

AE70,KE70,TE7#

AM/FM,MULTIPLEX

 1
86120-19015

AE70,CE70,KE70,TE71

AM/FM,MULTIPLEX

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-14040

AE70,KE70,TE7#

BALANCE

 1
86124-12010

AE70,KE70,TE7#

 2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-14040

AE70,KE70,TE7#

BALANCE

 1
86124-12010

AE70,KE70,TE7#

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

AE70,KE70,TE7#

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

AE70,KE70,TE7#

 2
Common parts
90170-09167
90201-09365

ILLUST NO. 4 OF 5(7903-8108)

Click highlighted areas on diagram

diagram 86180 86270 86280
Part # Description Qty Price
86180 - TUNER ASSY, STEREO COMPONENT
86180-12020

AE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D

AM/FM MULTIPLEX

 1
86270 - DECK ASSY, STEREO COMPONENT
86270-12010

AE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-12010

AE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL

 1

ILLUST NO. 5 OF 5(7903-8108)HT,SED

Click highlighted areas on diagram

diagram 8202 8202 86011A 86011A 86011A 86011A 86011C 86011C 86022A 86022A 86022B 86022B 86101A 86203D 86211A 86211A 86265A 86266A 9011906005 9015950048 9098209002 9098209002 9165141016 9331915008 9331915008 9331915008 9331915008 9338516016 9338516016 9338555012 9356055016 9356055016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE70,TE7#

REGULATOR

 1
90980-04043

AE70,CE70,KE70

REGULATOR

 1
90980-04036

AE70,KE70,TE7#

IG COIL

 1
90980-04023

AE70,CE70,KE70

REGULATOR

 1
90980-04030

AE70,KE70,TE7#

IG COIL

 1
90980-04041

AE70,KE70

IG COIL

 1
90980-04010

AE70,KE70,TE7#

REGULATOR

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE70,TE7#

REGULATOR

 1
90980-04043

AE70,CE70,KE70

REGULATOR

 1
90980-04036

AE70,KE70,TE7#

IG COIL

 1
90980-04023

AE70,CE70,KE70

REGULATOR

 1
90980-04030

AE70,KE70,TE7#

IG COIL

 1
90980-04041

AE70,KE70

IG COIL

 1
90980-04010

AE70,KE70,TE7#

REGULATOR

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE70,TE7#

REGULATOR

 1
90980-04043

AE70,CE70,KE70

REGULATOR

 1
90980-04036

AE70,KE70,TE7#

IG COIL

 1
90980-04023

AE70,CE70,KE70

REGULATOR

 1
90980-04030

AE70,KE70,TE7#

IG COIL

 1
90980-04041

AE70,KE70

IG COIL

 1
90980-04010

AE70,KE70,TE7#

REGULATOR

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE70,TE7#

REGULATOR

 1
90980-04043

AE70,CE70,KE70

REGULATOR

 1
90980-04036

AE70,KE70,TE7#

IG COIL

 1
90980-04023

AE70,CE70,KE70

REGULATOR

 1
90980-04030

AE70,KE70,TE7#

IG COIL

 1
90980-04041

AE70,KE70

IG COIL

 1
90980-04010

AE70,KE70,TE7#

REGULATOR

 1
86011C - FILTER, NOISE
90980-05022

AE70,CE70,KE70,TE71

WIPER(NO.2)

 1
90980-05078

AE70,CE70,KE70,TE71

TURN SIGNAL

 1
90980-05049

AE70,CE70,KE70,TE7#

WIPER(NO.1)

 1
90980-05077

AE70,CE70,KE70,TE71

BLOWER MOTOR

 1
90980-05080

AE70,CE70,KE70,TE71

STOP LAMP

 1
86011C - FILTER, NOISE
90980-05022

AE70,CE70,KE70,TE71

WIPER(NO.2)

 1
90980-05078

AE70,CE70,KE70,TE71

TURN SIGNAL

 1
90980-05049

AE70,CE70,KE70,TE7#

WIPER(NO.1)

 1
90980-05077

AE70,CE70,KE70,TE71

BLOWER MOTOR

 1
90980-05080

AE70,CE70,KE70,TE71

STOP LAMP

 1

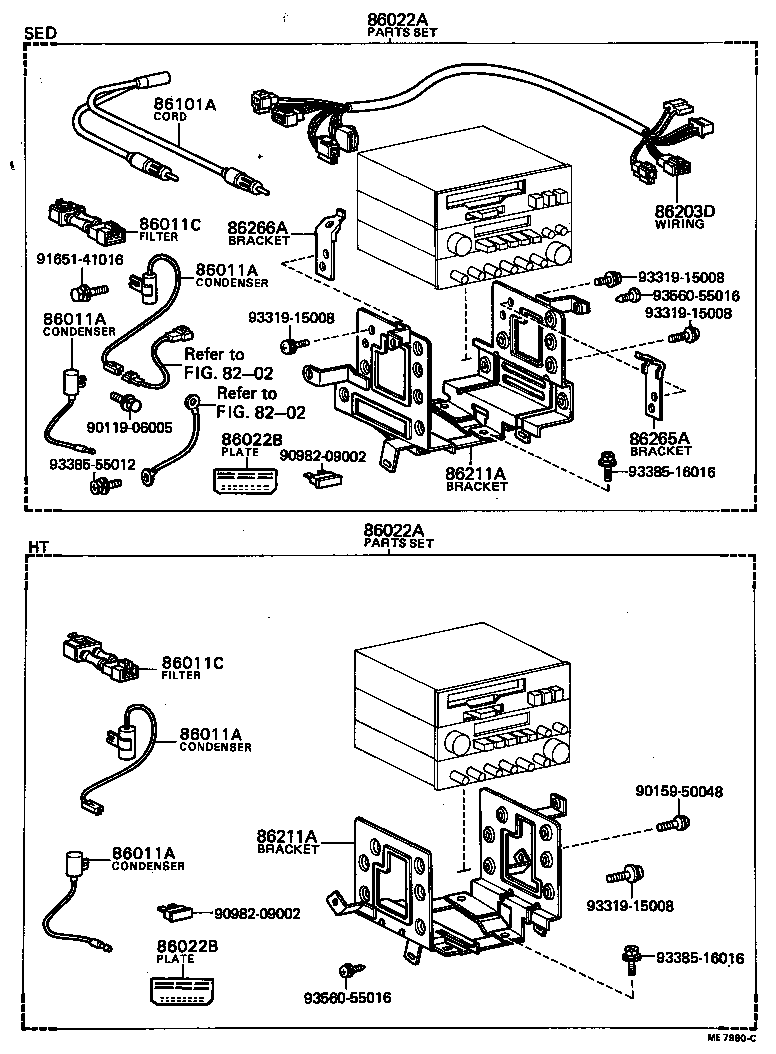

86022A - PARTS SET, STEREO COMPONENT SETTING
86022-19055

AE70,KE70,TE7#..HT..(GT,SE,XL)

 1
86022A - PARTS SET, STEREO COMPONENT SETTING
86022-19055

AE70,KE70,TE7#..HT..(GT,SE,XL)

 1
86022B - PLATE, CAUTION
74555-12030

AE70,KE70,TE71..GT,SE,SR,ST,TRR,XL

 1
86022B - PLATE, CAUTION
74555-12030

AE70,KE70,TE71..GT,SE,SR,ST,TRR,XL

 1
86211A - BRACKET, STEREO COMPONENT, NO.1
86211-12110

AE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D

 1
86211A - BRACKET, STEREO COMPONENT, NO.1
86211-12110

AE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D

 1
Common parts
90119-06005
90159-50048
90982-09002
91651-41016
93319-15008
93385-16016
93385-55012
93560-55016
Linked diagrams
8202

ILLUST NO. 3 OF 5(7903-8108)

Click highlighted areas on diagram

diagram 86021 86202B 86260 86265 86266 86267 86268 9331915008 9331915008 9331915008 9331915008 9331915008 9356755016 9356755016
Part # Description Qty Price
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-12170

AE70,KE70,TE7#..2D

 1
86260 - TAPE PLAYER ASSY
86021-12170

AE70,KE70,TE7#

 1
Common parts
93319-15008
93567-55016

ILLUST NO. 2 OF 5(7903-8108)

Click highlighted areas on diagram

diagram 8202 86011A 86011C 86126 86211 86211 86211 86212 86212 9015950082 9165141016 9166640616 9331915008 9331915008 9331915008 9331915008 9338515014 9356615514 9356755016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE70,TE7#

REGULATOR

 1
90980-04043

AE70,CE70,KE70

REGULATOR

 1
90980-04036

AE70,KE70,TE7#

IG COIL

 1
90980-04023

AE70,CE70,KE70

REGULATOR

 1
90980-04030

AE70,KE70,TE7#

IG COIL

 1
90980-04041

AE70,KE70

IG COIL

 1
90980-04010

AE70,KE70,TE7#

REGULATOR

 1
86011C - FILTER, NOISE
90980-05022

AE70,CE70,KE70,TE71

WIPER(NO.2)

 1
90980-05078

AE70,CE70,KE70,TE71

TURN SIGNAL

 1
90980-05049

AE70,CE70,KE70,TE7#

WIPER(NO.1)

 1
90980-05077

AE70,CE70,KE70,TE71

BLOWER MOTOR

 1
90980-05080

AE70,CE70,KE70,TE71

STOP LAMP

 1
86211 - BRACKET, RADIO, NO.1
86201-12030

AE70,TE7#..2D

CONSOLE TYPE,W/*RCM

 1
86207-12011

AE70,KE70,TE71..2D

 1
86211 - BRACKET, RADIO, NO.1
86201-12030

AE70,TE7#..2D

CONSOLE TYPE,W/*RCM

 1
86207-12011

AE70,KE70,TE71..2D

 1
86211 - BRACKET, RADIO, NO.1
86201-12030

AE70,TE7#..2D

CONSOLE TYPE,W/*RCM

 1
86207-12011

AE70,KE70,TE71..2D

 1
86212 - BRACKET, RADIO, NO.2
86208-12011

AE70,KE70,TE71..2D

 1
86212 - BRACKET, RADIO, NO.2
86208-12011

AE70,KE70,TE71..2D

 1
Common parts
90159-50082
91651-41016
91666-40616
93319-15008
93385-15014
93566-15514
93567-55016
Linked diagrams
8202

(8108- )

Click highlighted areas on diagram

diagram 8202 86011A 86011C 86011C 86120 86120 86211 86211 86212 86212 86221A 86221A 9165141016 9322915008 9322915008 9331515010 9331515010 9338515010 9338515010 9356755016 9356755016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE70,TE7#

REGULATOR

 1
90980-04043

AE70,CE70,KE70

REGULATOR

 1
90980-04036

AE70,KE70,TE7#

IG COIL

 1
90980-04023

AE70,CE70,KE70

REGULATOR

 1
90980-04030

AE70,KE70,TE7#

IG COIL

 1
90980-04041

AE70,KE70

IG COIL

 1
90980-04010

AE70,KE70,TE7#

REGULATOR

 1
86011C - FILTER, NOISE
90980-05022

AE70,CE70,KE70,TE71

WIPER(NO.2)

 1
90980-05078

AE70,CE70,KE70,TE71

TURN SIGNAL

 1
90980-05049

AE70,CE70,KE70,TE7#

WIPER(NO.1)

 1
90980-05077

AE70,CE70,KE70,TE71

BLOWER MOTOR

 1
90980-05080

AE70,CE70,KE70,TE71

STOP LAMP

 1
86011C - FILTER, NOISE
90980-05022

AE70,CE70,KE70,TE71

WIPER(NO.2)

 1
90980-05078

AE70,CE70,KE70,TE71

TURN SIGNAL

 1
90980-05049

AE70,CE70,KE70,TE7#

WIPER(NO.1)

 1
90980-05077

AE70,CE70,KE70,TE71

BLOWER MOTOR

 1
90980-05080

AE70,CE70,KE70,TE71

STOP LAMP

 1
86120 - RECEIVER ASSY, RADIO
86120-12230

AE70,KE70,TE7#

AM

 1
86120-14420

AE70,CE70,KE70,TE71

AM

 1
86120-12240

AE70,KE70,TE7#

AM/FM,MULTIPLEX

 1
86120-19015

AE70,CE70,KE70,TE71

AM/FM,MULTIPLEX

 1
86120 - RECEIVER ASSY, RADIO
86120-12230

AE70,KE70,TE7#

AM

 1
86120-14420

AE70,CE70,KE70,TE71

AM

 1
86120-12240

AE70,KE70,TE7#

AM/FM,MULTIPLEX

 1
86120-19015

AE70,CE70,KE70,TE71

AM/FM,MULTIPLEX

 1
86211 - BRACKET, RADIO, NO.1
86201-12030

AE70,TE7#..2D

CONSOLE TYPE,W/*RCM

 1
86207-12011

AE70,KE70,TE71..2D

 1
86211 - BRACKET, RADIO, NO.1
86201-12030

AE70,TE7#..2D

CONSOLE TYPE,W/*RCM

 1
86207-12011

AE70,KE70,TE71..2D

 1
86212 - BRACKET, RADIO, NO.2
86208-12011

AE70,KE70,TE71..2D

 1
86212 - BRACKET, RADIO, NO.2
86208-12011

AE70,KE70,TE71..2D

 1
Common parts
91651-41016
93229-15008
93315-15010
93385-15010
93567-55016
Linked diagrams
8202
