AE70-FSMES (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )HT

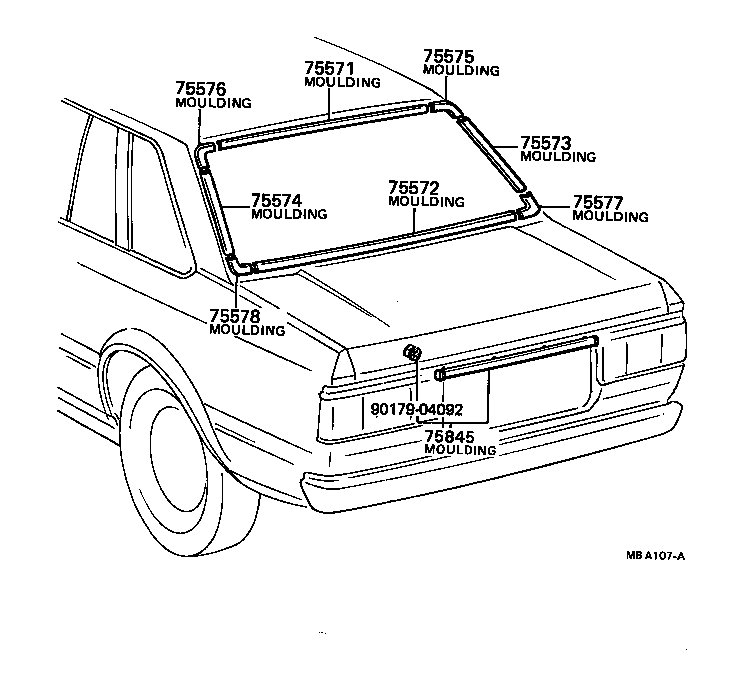

Click highlighted areas on diagram

diagram 75571 75572 75573 75574 75575 75576 75577 75578 75845 9017904092
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12200

AE70,KE70,TE70..HT..(DX,SE,XL)

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-12140

AE70,KE70,TE70..HT..(DX,SE,XL)

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-12180

AE70,KE70,TE70..HT..(DX,SE,XL)

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75573-12180

AE70,KE70,TE70..HT..(DX,SE,XL)

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-12090

AE70,KE70,TE70..HT..(DX,SE,XL)

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-12090

AE70,KE70,TE70..HT..(DX,SE,XL)

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75583-12080

AE70,KE70,TE70..HT..(DX,SE,XL)

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75583-12080

AE70,KE70,TE70..HT..(DX,SE,XL)

 1
75845 - MOULDING, BODY LOWER BACK PANEL, CENTER
75840-19035

AE70,TE70..HT..SE

 1
75840-12100

AE70..HT..(3FC,5F)..SE

LIMITED EDITION

 1
75840-19095

AE70,KE70,TE71..HT

 1
Common parts
90179-04092
