AE70-FSMES (1979)
Toyota Sprinter
ILLUST NO. 1 OF 3(7903-8108)
| Part # | Description | Qty | Price |
|---|

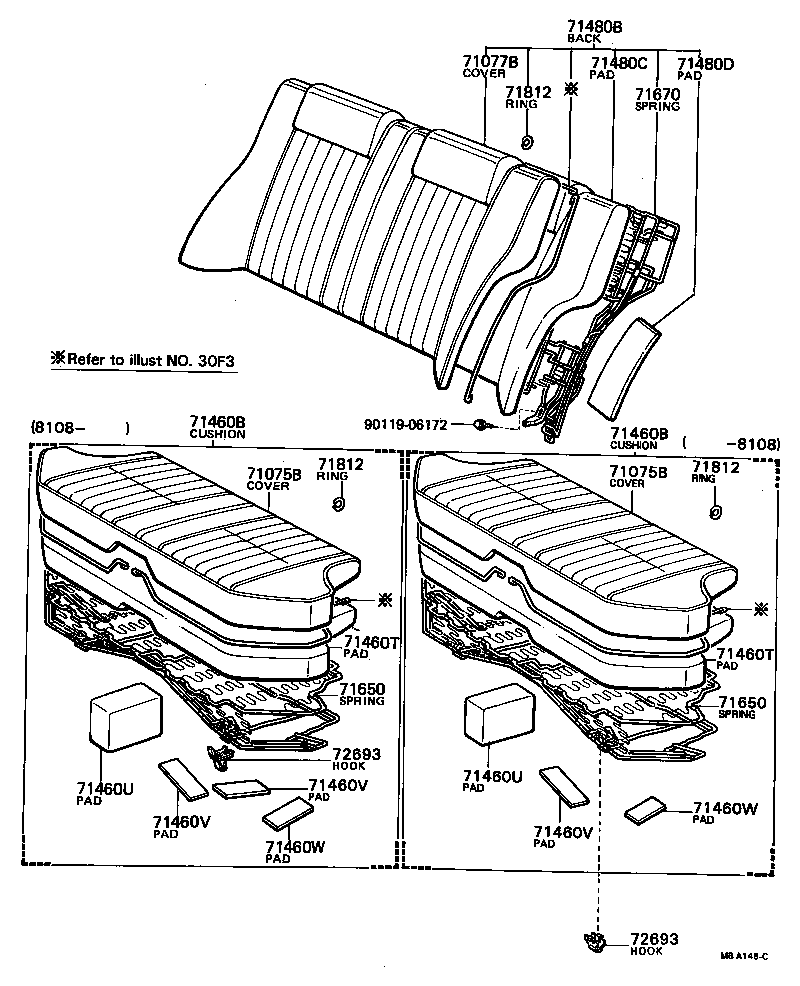

ILLUST NO. 2 OF 3(7903-8108)HT,SED ; (8108- )CE70,TE71..4D ; (8108- )AE70,KE70..SE..4D ; (8108
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A20001 |
AE70,TE70..HT..SE FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71075-1A20004 |
AE70,TE70..HT..SE FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71075-1A20006 |
AE70,TE70..HT..SE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71075-1A34106 |
AE70,KE70..SE..2D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A34101 |
AE70,KE70..SE..2D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A34104 |
AE70,KE70..SE..2D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A20001 |
AE70,TE70..HT..SE FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71075-1A20004 |
AE70,TE70..HT..SE FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71075-1A20006 |
AE70,TE70..HT..SE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71075-1A34106 |
AE70,KE70..SE..2D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A34101 |
AE70,KE70..SE..2D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A34104 |
AE70,KE70..SE..2D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1A56004 |
AE70,TE70..HT..SE FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71077-1A56006 |
AE70,TE70..HT..SE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71077-1A56001 |
AE70,TE70..HT..SE FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A05004 |
AE70,TE70..HT..SE FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71460-1A05006 |
AE70,TE70..HT..SE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A05001 |
AE70,TE70..HT..SE FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71460-1A20104 |
AE70,KE70..SE..2D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A20101 |
AE70,KE70..SE..2D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A20106 |
AE70,KE70..SE..2D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A05004 |
AE70,TE70..HT..SE FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71460-1A05006 |
AE70,TE70..HT..SE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A05001 |
AE70,TE70..HT..SE FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71460-1A20104 |
AE70,KE70..SE..2D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A20101 |
AE70,KE70..SE..2D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A20106 |
AE70,KE70..SE..2D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12310 |
AE70,KE70,TE7#..HT |
1 | ||
| 71611-12331 |
AE70,KE70,TE71..HT..(GT,SE) |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12310 |
AE70,KE70,TE7#..HT |
1 | ||
| 71611-12331 |
AE70,KE70,TE71..HT..(GT,SE) |
1 | ||
| 71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3 | ||||
| 71621-12240 |
AE70,KE70,TE7#..HT,LB,SED |
2 | ||
| 71621-12240 |
AE70,KE70,TE71..HT,LB |
2 | ||
| 71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3 | ||||
| 71621-12240 |
AE70,KE70,TE7#..HT,LB,SED |
2 | ||
| 71621-12240 |
AE70,KE70,TE71..HT,LB |
2 | ||
| 71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3 | ||||
| 71621-12240 |
AE70,KE70,TE7#..HT,LB,SED |
2 | ||
| 71621-12240 |
AE70,KE70,TE71..HT,LB |
2 | ||
| 71460W - PAD, REAR SEAT CUSHION SILENCER, NO.4 | ||||
| 71622-12070 |
AE70,KE70,TE7#..HT,LB |
2 | ||
| 71460W - PAD, REAR SEAT CUSHION SILENCER, NO.4 | ||||
| 71622-12070 |
AE70,KE70,TE7#..HT,LB |
2 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1A56001 |
AE70,TE70..HT..SE FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71480-1A56004 |
AE70,TE70..HT..SE FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71480-1A56006 |
AE70,TE70..HT..SE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE) | ||||
| 71407-12160 |
AE70,TE7#..HT..(GT,SE) |
1 | ||
| 71480D - PAD, REAR SEAT BACK, NO.2 (FOR BENCH TYPE) | ||||
| 71665-12040 |
AE70,KE70,TE7#..HT..(GT,SE,XL) |
2 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-12190 |
AE70,KE70,TE7#..HT,LB |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-12190 |
AE70,KE70,TE7#..HT,LB |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-12170 |
AE70,KE70,TE7#..HT..(GT,SE,XL) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE7# |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE7# |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| Common parts | ||||
| 90119-06172 | ||||
ILLUST NO. 3 OF 3(7903-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16003 | ||||
| 90580-16010 | ||||
| 90580-16015 | ||||
| 90580-16019 | ||||
| 90580-16020 | ||||
| 90580-16021 | ||||
| 90580-16056 | ||||
| 90580-16057 | ||||
| 90580-20001 | ||||
| 90580-20006 | ||||
| 90580-20007 | ||||
| 90580-20010 | ||||
| 90580-20011 | ||||
| 90580-20016 | ||||
| 90580-20041 | ||||
| 90580-20048 | ||||
| 90580-20095 | ||||
| 90580-20099 | ||||
| 90580-20106 | ||||
| 90580-20107 | ||||
| 90580-20108 | ||||
| 90580-20122 | ||||
| 90580-25004 | ||||
| 90580-25034 | ||||
| 90580-25100 | ||||
| 90580-26008 | ||||
| 90580-32011 | ||||
| 90580-32013 | ||||
| 90680-16056 | ||||
ILLUST NO. 3 OF 3(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16003 | ||||
| 90580-16010 | ||||
| 90580-16014 | ||||
| 90580-16020 | ||||
| 90580-16021 | ||||
| 90580-16023 | ||||
| 90580-16030 | ||||
| 90580-20006 | ||||
| 90580-25004 | ||||
| 90580-25015 | ||||
| 90580-26008 | ||||

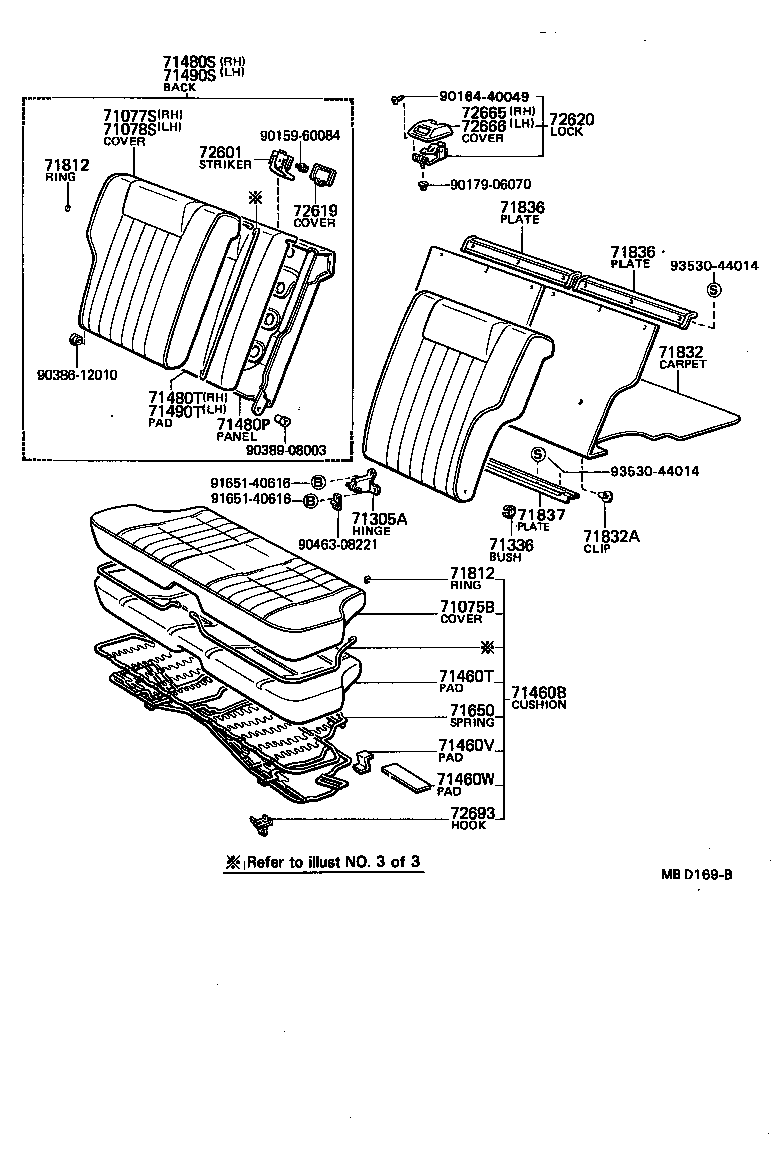

ILLUST NO. 2 OF 3(8108- )HT..GT,SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A20001 |
AE70,TE70..HT..SE FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71075-1A20004 |
AE70,TE70..HT..SE FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71075-1A20006 |
AE70,TE70..HT..SE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71075-1A34106 |
AE70,KE70..SE..2D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A34101 |
AE70,KE70..SE..2D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A34104 |
AE70,KE70..SE..2D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E24006 |
AE70,KE70..HT..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1E24004 |
AE70,KE70..HT..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E24001 |
AE70,KE70..HT..SE FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1255001 |
AE70,KE70..HT..SE FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1255004 |
AE70,KE70..HT..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1255006 |
AE70,KE70..HT..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12020 |
AE70,KE70,TE71..HT..(GT,SE) |
1 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-12010 |
AE70,KE70,TE71..HT..(GT,SE) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A05004 |
AE70,TE70..HT..SE FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71460-1A05006 |
AE70,TE70..HT..SE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A05001 |
AE70,TE70..HT..SE FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71460-1A20104 |
AE70,KE70..SE..2D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A20101 |
AE70,KE70..SE..2D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A20106 |
AE70,KE70..SE..2D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12310 |
AE70,KE70,TE7#..HT |
1 | ||
| 71611-12331 |
AE70,KE70,TE71..HT..(GT,SE) |
1 | ||
| 71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3 | ||||
| 71621-12240 |
AE70,KE70,TE7#..HT,LB,SED |
2 | ||
| 71621-12240 |
AE70,KE70,TE71..HT,LB |
2 | ||
| 71460W - PAD, REAR SEAT CUSHION SILENCER, NO.4 | ||||
| 71622-12070 |
AE70,KE70,TE7#..HT,LB |
2 | ||
| 71480P - PANEL SUB-ASSY, REAR SEAT BACK | ||||
| 71202-12050 |
AE70,KE70,TE71..HT..(GT,SE) RH |
1 | ||
| 71203-12030 |
AE70,KE70,TE71..HT..(GT,SE) LH |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1E29004 |
AE70,KE70..HT..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1E29001 |
AE70,KE70..HT..SE FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1E29006 |
AE70,KE70..HT..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480T - PAD, REAR SEAT BACK, RH (FOR SEPARATE SEAT) | ||||
| 71651-12350 |
AE70,KE70,TE71..HT..(GT,SE) |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1255001 |
AE70,KE70..HT..SE FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1255006 |
AE70,KE70..HT..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1255004 |
AE70,KE70..HT..SE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490T - PAD, REAR SEAT BACK, LH (FOR SEPARATE SEAT) | ||||
| 71652-12260 |
AE70,KE70,TE71..HT..(GT,SE) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-12190 |
AE70,KE70,TE7#..HT,LB |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 71832 - CARPET OR MAT, REAR SEAT BACK | ||||
| 71885-1201001 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
1 | ||
| 71885-1201004 |
AE70,KE70,TE71..HT..(GT,SE) BLUE,BLUE,TRIM8# |
1 | ||
| 71885-1201011 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
1 | ||
| 71885-1201006 |
AE70,KE70,TE71..HT..(GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0601624 |
AE70,KE70,TE71..HT..(GT,SE) BLUE,BLUE,TRIM8# |
4 | ||
| 90467-0601616 |
AE70,KE70,TE71..HT..(GT,SE) L-BROWN,BROWN,TRIM4# |
4 | ||
| 90467-0601601 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
4 | ||
| 71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER | ||||
| 58573-1202005 |
AE70,KE70,TE71..HT..(GT,SE) BEIGE,BEIGE,TRIM4# |
2 | ||
| 58573-1202001 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
2 | ||
| 58573-1202004 |
AE70,KE70,TE71..HT..(GT,SE) BLUE,BLUE,TRIM8# |
2 | ||
| 71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER | ||||
| 58573-1202005 |
AE70,KE70,TE71..HT..(GT,SE) BEIGE,BEIGE,TRIM4# |
2 | ||
| 58573-1202001 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
2 | ||
| 58573-1202004 |
AE70,KE70,TE71..HT..(GT,SE) BLUE,BLUE,TRIM8# |
2 | ||
| 71837 - PLATE, REAR SEAT BACK MAT SUPPORT, LOWER | ||||
| 58573-16010 |
AE70,KE70,TE71..HT..(GT,SE) |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12060 |
AE70,KE70,TE71..HT..(GT,SE) |
2 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-1202001 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
2 | ||
| 72615-1202004 |
AE70,KE70,TE71..HT..(GT,SE) BLUE,BLUE,TRIM8# |
2 | ||
| 72615-1202006 |
AE70,KE70,TE71..HT..(GT,SE) DARK BROWN,BROWN,TRIM4# |
2 | ||
| 72620 - LOCK ASSY, REAR SEAT BACK | ||||
| 72630-1205006 |
AE70,KE70,TE71..HT..(GT,SE) DARK BROWN,BROWN,TRIM4# |
2 | ||
| 72630-1205004 |
AE70,KE70,TE71..HT..(GT,SE) BLUE,BLUE,TRIM8# |
2 | ||
| 72630-1205001 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-1201001 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
1 | ||
| 72665-1201004 |
AE70,KE70,TE71..HT..(GT,SE) BLUE,BLUE,TRIM8# |
1 | ||
| 72665-1201006 |
AE70,KE70,TE71..HT..(GT,SE) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-1201006 |
AE70,KE70,TE71..HT..(GT,SE) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72665-1201004 |
AE70,KE70,TE71..HT..(GT,SE) BLUE,BLUE,TRIM8# |
1 | ||
| 72665-1201001 |
AE70,KE70,TE71..HT..(GT,SE) BLACK,BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE7# |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| Common parts | ||||
| 90159-60084 | ||||
| 90164-40049 | ||||
| 90179-06070 | ||||
| 90386-12010 | ||||
| 90389-08003 | ||||
| 90463-08221 | ||||
| 91651-40616 | ||||
| 93530-44014 | ||||
ILLUST NO. 3 OF 3(7903- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16004 | ||||
| 90580-16005 | ||||
| 90580-16010 | ||||
| 90580-16020 | ||||
| 90580-16027 | ||||
| 90580-20007 | ||||
| 90580-20021 | ||||
| 90580-20095 | ||||
| 90580-20096 | ||||
| 90580-20107 | ||||
| 90580-20116 | ||||
| 90580-20122 | ||||
| 90580-20132 | ||||
| 90580-25004 | ||||
| 90580-25006 | ||||
| 90580-25015 | ||||
| 90580-25020 | ||||
| 90580-25029 | ||||
| 90580-25031 | ||||
| 90580-25032 | ||||
| 90580-25034 | ||||
| 90580-25100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
