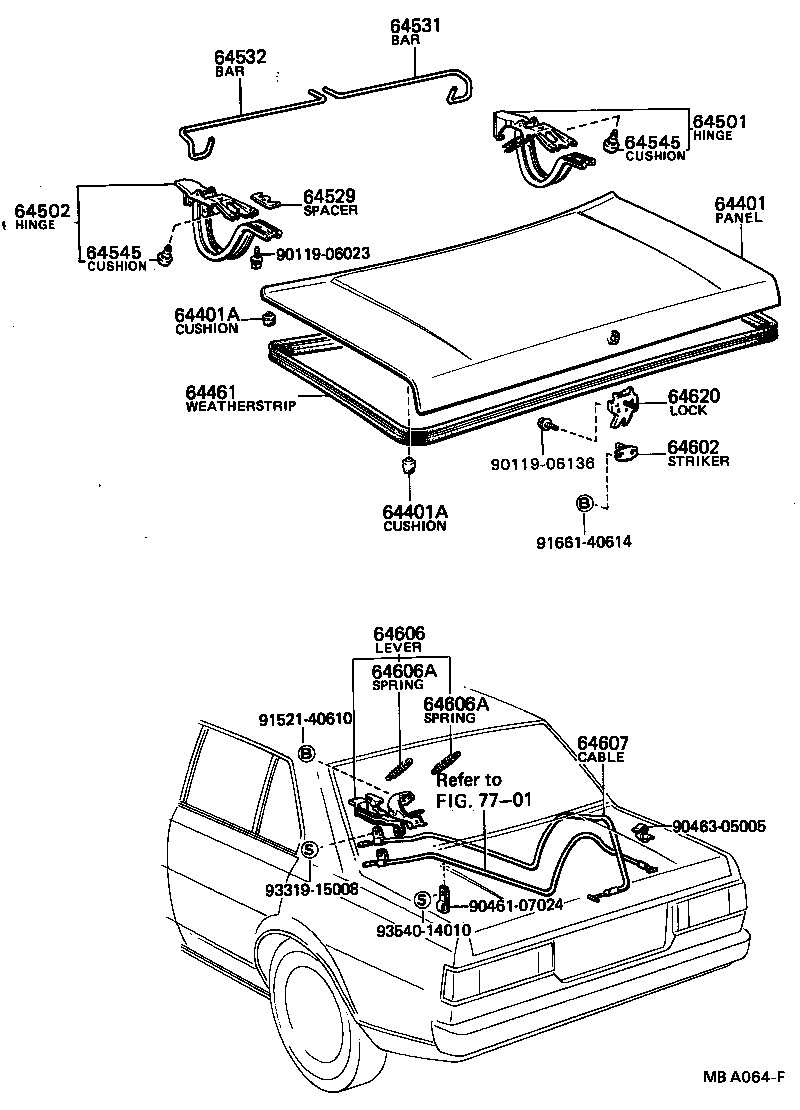

AE70-FSMES (1979)
Toyota Sprinter
(7903- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-12907 |
AE70,KE70,TE7#..HT |
1 | ||
| 64401-12912 |
AE70,KE70,TE7#..HT |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09130 |
AE70,KE70,TE71..HT FR |
2 | ||
| 90541-07003 |
AE70,KE70,TE7#..HT,SED FR |
2 | ||
| 90541-09007 |
AE70,CE70,KE70,TE7#..HT,SED RR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09130 |
AE70,KE70,TE71..HT FR |
2 | ||
| 90541-07003 |
AE70,KE70,TE7#..HT,SED FR |
2 | ||
| 90541-09007 |
AE70,CE70,KE70,TE7#..HT,SED RR |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-12190 |
AE70,KE70,TE7#..HT |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-12160 |
AE70,KE70,TE7#..HT |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-12150 |
AE70,KE70,TE7#..HT |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-22010 |
AE70,KE70,TE7#..HT |
4 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-12120 |
AE70,KE70,TE7#..HT |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-12110 |
AE70,KE70,TE7#..HT |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AE70,KE70,TE7#..HT |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AE70,KE70,TE7#..HT |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-22030 |
AE70,CE70,KE70,TE7#..HT,SED |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-12030 |
AE70,CE70,KE70,TE71..(HT,SED)..(DX,GT,SE,SX,XL) |
1 | ||
| 64606-12030 |
AE70,KE70,TE7#..(HT,SED)..(GT,SE,XL) |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AE70,CE70,KE70,TE71..(HT,SED)..(DX,GT,SE,SX,XL) |
2 | ||
| 90506-09004 |
AE70,KE70,TE7#..(HT,SED)..(GT,SE,XL) |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AE70,CE70,KE70,TE71..(HT,SED)..(DX,GT,SE,SX,XL) |
2 | ||
| 90506-09004 |
AE70,KE70,TE7#..(HT,SED)..(GT,SE,XL) |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12060 |
AE70,CE70,KE70,TE71..(HT,SED)..(DX,GT,SE,SX,XL) |
1 | ||
| 64607-12060 |
AE70,KE70,TE7#..(HT,SED)..(GT,SE,XL) |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12020 |
AE70,CE70,KE70,TE7#..HT,SED |
1 | ||
| Common parts | ||||
| 90119-06023 | ||||
| 90119-06136 | ||||
| 90461-07024 | ||||
| 90463-05005 | ||||
| 91521-40610 | ||||
| 91661-40614 | ||||
| 93319-15008 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 7701 | ||||
