AE70-FSMES (1979)
Toyota Sprinter

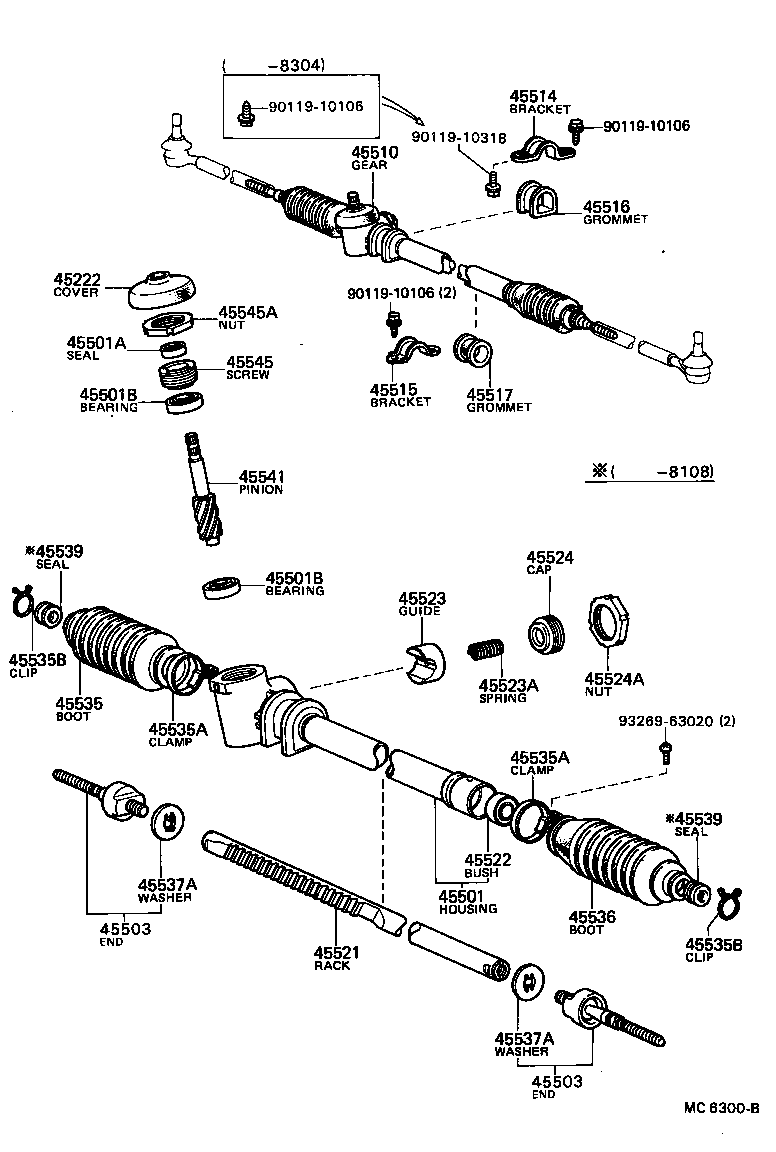

ILLUST NO. 3 OF 4(7903- )KE70 ; (8108- )AE70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
AE70,KE70 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12070 |
AE70,KE70 |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AE70,KE70 |
1 | ||
| 45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING) | ||||
| 90363-15003 |
AE70,KE70 UPR |
1 | ||
| 90363-13001 |
AE70,KE70 LWR |
1 | ||
| 45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING) | ||||
| 90363-15003 |
AE70,KE70 UPR |
1 | ||
| 90363-13001 |
AE70,KE70 LWR |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
AE70,KE70 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
AE70,KE70 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12011 |
AE70,KE70 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12020 |
AE70,KE70 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12010 |
AE70,KE70 |
1 | ||
| 45515-12020 |
AE70 W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12020 |
AE70,KE70 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12030 |
AE70 W/PS |
1 | ||
| 45517-12020 |
AE70,KE70 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12030 |
AE70,KE70 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10030 |
AE70,KE70 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-10010 |
AE70,KE70 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AE70,KE70 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AE70,KE70 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36001 |
AE70,KE70 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE70,KE70 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE70,KE70 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE70,KE70 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE70,KE70 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE70,KE70 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-12011 |
AE70,KE70 |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AE70,KE70 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AE70,KE70 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12011 |
AE70,KE70 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AE70,KE70 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AE70,KE70 |
1 | ||
| Common parts | ||||
| 90119-10106 | ||||
| 90119-10318 | ||||
| 93269-63020 | ||||
ILLUST NO. 1 OF 4(7903-8108)AE70,TE7# ; (8108- )CE70,TE71..SPD,TRS,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12070 |
AE70,TE7# |
1 | ||
| 45210-22050 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL W/TILT STRG ,W/TILT STRG & PS |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE70,KE70,TE7# UPR |
2 | ||
| 90363-28001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
AE70,KE70 LWR |
1 | ||
| 90363-18001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL UPR,W/TILT STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AE70,KE70,TE7# 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
AE70,CE70,KE70,TE7# 厚さ=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AE70,KE70,TE7# 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
AE70,CE70,KE70,TE7# 厚さ=1.20,T=1.2 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
AE70,TE7# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12120 |
AE70,KE70..DX,SE,SR,SX,XL W/TILT STRG |
1 | ||
| 45870-12100 |
AE70,TE7# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
AE70,TE7# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12030 |
AE70,TE7# |
1 | ||
| 45025-12090 |
AE70,KE70..DX,SE,SR,SX,XL W/TILT STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12020 |
AE70,TE7# |
1 | ||
| 45254-12030 |
AE70,KE70 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
AE70,TE7# |
1 | ||
| 45255-12030 |
AE70,KE70 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
AE70,KE70 |
1 | ||
| 90301-45202 |
AE70,TE7# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
AE70,KE70,TE7# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12020 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL W/TILT STRG |
1 | ||
| 45020-12130 |
AE70,KE70,TE7# |
1 | ||
| 45280-12021 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL W/TILT STRG |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1210004 |
AE70,KE70,TE70..SE,SR,ST,XL UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1208006 |
AE70,KE70,TE7#..(GT,SE,XL)..2D LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1210001 |
AE70,KE70,TE7# UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1208004 |
AE70,KE70,TE70..SE,SR,ST,XL LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1210006 |
AE70,KE70,TE7#..(GT,SE,XL)..2D UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1292606 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45287-1208001 |
AE70,KE70,TE7# LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1292601 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-1292604 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1210004 |
AE70,KE70,TE70..SE,SR,ST,XL UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1208006 |
AE70,KE70,TE7#..(GT,SE,XL)..2D LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1210001 |
AE70,KE70,TE7# UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1208004 |
AE70,KE70,TE70..SE,SR,ST,XL LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1210006 |
AE70,KE70,TE7#..(GT,SE,XL)..2D UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1292606 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45287-1208001 |
AE70,KE70,TE7# LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1292601 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-1292604 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1210004 |
AE70,KE70,TE70..SE,SR,ST,XL UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1208006 |
AE70,KE70,TE7#..(GT,SE,XL)..2D LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1210001 |
AE70,KE70,TE7# UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1208004 |
AE70,KE70,TE70..SE,SR,ST,XL LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1210006 |
AE70,KE70,TE7#..(GT,SE,XL)..2D UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1292606 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45287-1208001 |
AE70,KE70,TE7# LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1292601 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-1292604 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
AE70,CE70,KE70,TE7# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
AE70,CE70,KE70,TE7# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-12040 |
AE70,TE7# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-12090 |
AE70,TE7# |
1 | ||
| 45082-12010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL W/TILT STRG |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
AE70,TE7# |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90119-08185 | ||||
| 90119-10060 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91666-40620 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(7903-8108)AE70,TE7# ; (8202- )CE70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-12010 |
AE70,TE70..DX,SE,ST,XL VARIABLE TYPE |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
TE70..SR;AE70,TE71 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
TE70..SR;AE70,TE71 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17092 |
AE70,TE7# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22020 |
AE70,TE7# |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
AE70,TE7# |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-12170 |
AE70..DX,SE,ST,XL VARIABLE TYPE |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
AE70,TE7# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-12151 |
AE70..DX,SE,ST,XL VARIABLE TYPE |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-12020 |
AE70..DX,SE,ST,XL |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
AE70,TE7# |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
AE70,TE7# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14030 |
AE70,TE7# 厚さ=2.08,T=2.08 |
1 | ||
| 45352-14010 |
AE70,TE7# 厚さ=2.00,T=2.00 |
1 | ||
| 45352-14020 |
AE70,TE7# 厚さ=2.04,T=2.04 |
1 | ||
| 45352-14060 |
AE70,TE7# 厚さ=2.20,T=2.20 |
1 | ||
| 45352-14040 |
AE70,TE7# 厚さ=2.12,T=2.12 |
1 | ||
| 45352-14050 |
AE70,TE7# 厚さ=2.16,T=2.16 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
AE70..DX,SE,ST,XL |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
AE70,TE7# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19175 |
TE70..SR;AE70,TE71 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
AE70,TE7# |
1 | ||
| Common parts | ||||
| 90101-10092 | ||||
| 90179-10178 | ||||
| 90461-08293 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94612-11001 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 4(8108- )DX,GT,SE,SR,SX,TRR,TRS,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 長さ=107.5 |
1 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07195 |
AE70,KE70..DX,SE,SR,SX,XL W/TILT STRG |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1210004 |
AE70,KE70,TE70..SE,SR,ST,XL UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1208006 |
AE70,KE70,TE7#..(GT,SE,XL)..2D LWR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1210001 |
AE70,KE70,TE7# UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1208004 |
AE70,KE70,TE70..SE,SR,ST,XL LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1210006 |
AE70,KE70,TE7#..(GT,SE,XL)..2D UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1292606 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45287-1208001 |
AE70,KE70,TE7# LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1292601 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-1292604 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
AE70,CE70,KE70,TE7# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
AE70,CE70,KE70,TE7# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-12090 |
AE70,TE7# |
1 | ||
| 45082-12010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL W/TILT STRG |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-22020 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22050 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-22040 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 外径=18.000−18.018,D=18.000-18.018 |
1 | ||
| 45814-22010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22060 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 厚さ=0.2,T=0.2 |
1 | ||
| 45815-22070 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 厚さ=0.5,T=0.5 |
1 | ||
| 45815-22100 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 厚さ=1.8,T=1.8 |
1 | ||
| 45815-22090 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 厚さ=1.4,T=1.4 |
1 | ||
| 45815-22080 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL 厚さ=0.8,T=0.8 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-12010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| Common parts | ||||
| 90114-08002 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 91611-60840 | ||||
| 91655-60620 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 4(8108- )AE70,KE70..DX,SE,SR,SX,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12070 |
AE70,TE7# |
1 | ||
| 45210-22050 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL W/TILT STRG ,W/TILT STRG & PS |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE70,KE70,TE7# UPR |
2 | ||
| 90363-28001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
AE70,KE70 LWR |
1 | ||
| 90363-18001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL UPR,W/TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE70,KE70,TE7# UPR |
2 | ||
| 90363-28001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
AE70,KE70 LWR |
1 | ||
| 90363-18001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL UPR,W/TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE70,KE70,TE7# UPR |
2 | ||
| 90363-28001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
AE70,KE70 LWR |
1 | ||
| 90363-18001 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL UPR,W/TILT STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AE70,KE70,TE7# 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
AE70,CE70,KE70,TE7# 厚さ=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE70,KE70 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-12060 |
AE70,KE70..DX,SE,SR,SX,XL |
1 | ||
| 45220-12070 |
AE70 W/PS |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12120 |
AE70,KE70..DX,SE,SR,SX,XL W/TILT STRG |
1 | ||
| 45870-12100 |
AE70,TE7# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14030 |
AE70,KE70 |
1 | ||
| 45209-12030 |
AE70 W/PS |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12030 |
AE70,TE7# |
1 | ||
| 45025-12090 |
AE70,KE70..DX,SE,SR,SX,XL W/TILT STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12020 |
AE70,TE7# |
1 | ||
| 45254-12030 |
AE70,KE70 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
AE70,TE7# |
1 | ||
| 45255-12030 |
AE70,KE70 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
AE70,KE70 |
1 | ||
| 90301-45202 |
AE70,TE7# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AE70,KE70 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12020 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL W/TILT STRG |
1 | ||
| 45020-12130 |
AE70,KE70,TE7# |
1 | ||
| 45280-12021 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL W/TILT STRG |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
AE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AE70,KE70 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
AE70,KE70 |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
AE70,KE70 |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90105-10022 | ||||
| 90119-08042 | ||||
| 90179-06097 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91666-40620 | ||||
| 94512-00800 | ||||
ILLUST NO. 4 OF 4(8108- )AE70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
AE70 |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
AE70 |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
AE70 |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
AE70 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
AE70 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12010 |
AE70 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AE70 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AE70 |
2 | ||
| 44201D - BEARING, THRUST NEEDLE ROLLER(FOR CONTROL VALVE) | ||||
| 90374-30003 |
AE70 |
1 | ||
| 44201E - WASHER, PLATE(FOR POWER STEERING CONTROL VALVE) | ||||
| 90201-30003 |
AE70 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12010 |
AE70 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-30002 |
AE70 INNER |
1 | ||
| 90562-34001 |
AE70 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-30002 |
AE70 INNER |
1 | ||
| 90562-34001 |
AE70 OUTER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-12010 |
AE70 |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-46001 |
AE70 |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-24002 |
AE70 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-12010 |
AE70 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
AE70 |
2 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-12010 |
AE70 |
1 | ||
| 44211A - RING, O(FOR CONTROL VALVE HOUSING) | ||||
| 90301-26001 |
AE70 ID=27.7,INNER |
1 | ||
| 90301-38002 |
AE70 ID=38.8,OUTER |
1 | ||
| 44211A - RING, O(FOR CONTROL VALVE HOUSING) | ||||
| 90301-26001 |
AE70 ID=27.7,INNER |
1 | ||
| 90301-38002 |
AE70 ID=38.8,OUTER |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 90562-29002 |
AE70 ID=29.9,UPR |
1 | ||
| 90562-24002 |
AE70 ID=24.4,LWR |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 90562-29002 |
AE70 ID=29.9,UPR |
1 | ||
| 90562-24002 |
AE70 ID=24.4,LWR |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12010 |
AE70 |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-12010 |
AE70 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99119 |
AE70 |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-12010 |
AE70 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-12010 |
AE70 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12010 |
AE70 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12010 |
AE70 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05005 |
AE70 HOUSING SIDE |
2 | ||
| 90410-02001 |
AE70 VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05005 |
AE70 HOUSING SIDE |
2 | ||
| 90410-02001 |
AE70 VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05005 |
AE70 HOUSING SIDE |
2 | ||
| 90410-02001 |
AE70 VALVE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12010 |
AE70 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19015 |
AE70 |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19015 |
AE70 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE70 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE70 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12010 |
AE70 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-20041 |
AE70 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AE70 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AE70 |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-12030 |
AE70 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10568 |
AE70 |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10568 |
AE70 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE70 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE70 |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-12030 |
AE70 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
ILLUST NO. 3 OF 4(8108- )AE70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210K - GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL | ||||
| 04455-20010 |
AE70 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12010 |
AE70 |
1 | ||
| 44250K - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12010 |
AE70 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12020 |
AE70,KE70 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12010 |
AE70,KE70 |
1 | ||
| 45515-12020 |
AE70 W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12020 |
AE70,KE70 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12030 |
AE70 W/PS |
1 | ||
| 45517-12020 |
AE70,KE70 |
1 | ||
| Common parts | ||||
| 90119-10106 | ||||
| 90119-10318 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
