AE70-FLMNS (1979)

Toyota Sprinter

Production Mar 1979 - Aug 1981
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

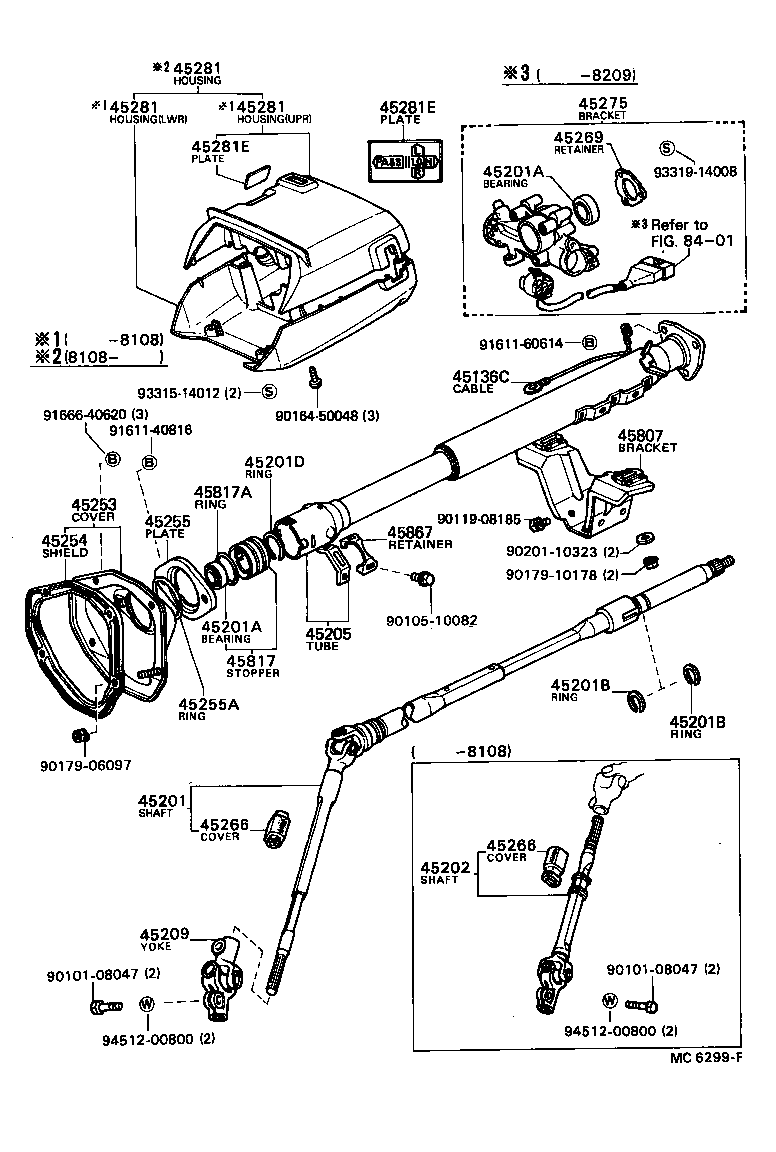

ILLUST NO. 1 OF 4(7903- )KE70 ; (8108- )AE70..DX,SX,XL

Click highlighted areas on diagram

diagram 45136C 45201 45201A 45201A 45201B 45201B 45201D 45202 45205 45209 45253 45254 45255 45255A 45266 45266 45269 45275 45281 45281 45281 45281E 45281E 45807 45817 45817A 45867 8401 9010108047 9010108047 9010510082 9011908185 9016450048 9017906097 9017910178 9020110323 9161140816 9161160614 9166640620 9331514012 9331914008 9451200800 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-12070

AE70,TE7#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

AE70,KE70,TE7#

UPR

 2
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

AE70,KE70,TE7#

UPR

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

AE70,KE70,TE7#

厚さ=1.35−1.45,T=1.4

 2
90520-17042

AE70,CE70,KE70,TE7#

厚さ=1.20,T=1.2

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

AE70,KE70,TE7#

厚さ=1.35−1.45,T=1.4

 2
90520-17042

AE70,CE70,KE70,TE7#

厚さ=1.20,T=1.2

 2
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-12100

AE70,TE7#

 1
45253 - COVER, STEERING COLUMN HOLE
45025-12030

AE70,TE7#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-12020

AE70,TE7#

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-12020

AE70,TE7#

 1
45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
90301-45202

AE70,TE7#

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-35010

AE70,KE70,TE7#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45020-12130

AE70,KE70,TE7#

 1
45281 - HOUSING, STEERING COLUMN
45286-1210004

AE70,KE70,TE70..SE,SR,ST,XL

UPR,BLUE,BLUE,TRIM8#

 1
45287-1208006

AE70,KE70,TE7#..(GT,SE,XL)..2D

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-1210001

AE70,KE70,TE7#

UPR,BLACK,BLACK,TRIM2#

 1
45287-1208004

AE70,KE70,TE70..SE,SR,ST,XL

LWR,BLUE,BLUE,TRIM8#

 1
45286-1210006

AE70,KE70,TE7#..(GT,SE,XL)..2D

UPR,DARK BROWN,BROWN,TRIM4#

 1
45287-1208001

AE70,KE70,TE7#

LWR,BLACK,BLACK,TRIM2#

 1
45281 - HOUSING, STEERING COLUMN
45286-1210004

AE70,KE70,TE70..SE,SR,ST,XL

UPR,BLUE,BLUE,TRIM8#

 1
45287-1208006

AE70,KE70,TE7#..(GT,SE,XL)..2D

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-1210001

AE70,KE70,TE7#

UPR,BLACK,BLACK,TRIM2#

 1
45287-1208004

AE70,KE70,TE70..SE,SR,ST,XL

LWR,BLUE,BLUE,TRIM8#

 1
45286-1210006

AE70,KE70,TE7#..(GT,SE,XL)..2D

UPR,DARK BROWN,BROWN,TRIM4#

 1
45287-1208001

AE70,KE70,TE7#

LWR,BLACK,BLACK,TRIM2#

 1
45281 - HOUSING, STEERING COLUMN
45286-1210004

AE70,KE70,TE70..SE,SR,ST,XL

UPR,BLUE,BLUE,TRIM8#

 1
45287-1208006

AE70,KE70,TE7#..(GT,SE,XL)..2D

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-1210001

AE70,KE70,TE7#

UPR,BLACK,BLACK,TRIM2#

 1
45287-1208004

AE70,KE70,TE70..SE,SR,ST,XL

LWR,BLUE,BLUE,TRIM8#

 1
45286-1210006

AE70,KE70,TE7#..(GT,SE,XL)..2D

UPR,DARK BROWN,BROWN,TRIM4#

 1
45287-1208001

AE70,KE70,TE7#

LWR,BLACK,BLACK,TRIM2#

 1
45281E - PLATE, SAFETY CAUTION
45283-12010

AE70,CE70,KE70,TE7#

 1
45281E - PLATE, SAFETY CAUTION
45283-12010

AE70,CE70,KE70,TE7#

 1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45807-12090

AE70,TE7#

 1
Common parts
90101-08047
90105-10082
90119-08185
90164-50048
90179-06097
90179-10178
90201-10323
91611-40816
91611-60614
91666-40620
93315-14012
93319-14008
94512-00800
Linked diagrams
8401

ILLUST NO. 3 OF 4(7903- )KE70 ; (8108- )AE70

Click highlighted areas on diagram

diagram 45222 45501 45501A 45501B 45501B 45503 45503 45510 45514 45515 45516 45517 45521 45522 45523 45523A 45524 45524A 45535 45535A 45535A 45535B 45535B 45536 45537A 45537A 45539 45539 45541 45545 45545A 9011910106 9011910106 9011910106 9011910318 9326963020
Part # Description Qty Price
Common parts
90119-10106
90119-10318
93269-63020

ILLUST NO. 1 OF 4(7903-8108)AE70,TE7# ; (8108- )CE70,TE71..SPD,TRS,XL

Click highlighted areas on diagram

diagram 45201 45201A 45201B 45201B 45201E 45205 45230 45253 45254 45255 45255A 45269 45275 45281 45281 45281 45281E 45281E 45292 45807 45877 8401 9010108047 9011908185 9011910060 9016450048 9017906097 9017910178 9020110323 9161140816 9161160614 9166640620 9331514012 9331913012 9331914008 9411050800 9451200800 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-12070

AE70,TE7#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

AE70,KE70,TE7#

UPR

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

AE70,KE70,TE7#

厚さ=1.35−1.45,T=1.4

 2
90520-17042

AE70,CE70,KE70,TE7#

厚さ=1.20,T=1.2

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

AE70,KE70,TE7#

厚さ=1.35−1.45,T=1.4

 2
90520-17042

AE70,CE70,KE70,TE7#

厚さ=1.20,T=1.2

 2
45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT)
90333-21008

AE70,TE7#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-12100

AE70,TE7#

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-14020

AE70,TE7#

 1
45253 - COVER, STEERING COLUMN HOLE
45025-12030

AE70,TE7#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-12020

AE70,TE7#

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-12020

AE70,TE7#

 1
45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
90301-45202

AE70,TE7#

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-35010

AE70,KE70,TE7#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45020-12130

AE70,KE70,TE7#

 1
45281 - HOUSING, STEERING COLUMN
45286-1210004

AE70,KE70,TE70..SE,SR,ST,XL

UPR,BLUE,BLUE,TRIM8#

 1
45287-1208006

AE70,KE70,TE7#..(GT,SE,XL)..2D

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-1210001

AE70,KE70,TE7#

UPR,BLACK,BLACK,TRIM2#

 1
45287-1208004

AE70,KE70,TE70..SE,SR,ST,XL

LWR,BLUE,BLUE,TRIM8#

 1
45286-1210006

AE70,KE70,TE7#..(GT,SE,XL)..2D

UPR,DARK BROWN,BROWN,TRIM4#

 1
45287-1208001

AE70,KE70,TE7#

LWR,BLACK,BLACK,TRIM2#

 1
45281 - HOUSING, STEERING COLUMN
45286-1210004

AE70,KE70,TE70..SE,SR,ST,XL

UPR,BLUE,BLUE,TRIM8#

 1
45287-1208006

AE70,KE70,TE7#..(GT,SE,XL)..2D

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-1210001

AE70,KE70,TE7#

UPR,BLACK,BLACK,TRIM2#

 1
45287-1208004

AE70,KE70,TE70..SE,SR,ST,XL

LWR,BLUE,BLUE,TRIM8#

 1
45286-1210006

AE70,KE70,TE7#..(GT,SE,XL)..2D

UPR,DARK BROWN,BROWN,TRIM4#

 1
45287-1208001

AE70,KE70,TE7#

LWR,BLACK,BLACK,TRIM2#

 1
45281 - HOUSING, STEERING COLUMN
45286-1210004

AE70,KE70,TE70..SE,SR,ST,XL

UPR,BLUE,BLUE,TRIM8#

 1
45287-1208006

AE70,KE70,TE7#..(GT,SE,XL)..2D

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-1210001

AE70,KE70,TE7#

UPR,BLACK,BLACK,TRIM2#

 1
45287-1208004

AE70,KE70,TE70..SE,SR,ST,XL

LWR,BLUE,BLUE,TRIM8#

 1
45286-1210006

AE70,KE70,TE7#..(GT,SE,XL)..2D

UPR,DARK BROWN,BROWN,TRIM4#

 1
45287-1208001

AE70,KE70,TE7#

LWR,BLACK,BLACK,TRIM2#

 1
45281E - PLATE, SAFETY CAUTION
45283-12010

AE70,CE70,KE70,TE7#

 1
45281E - PLATE, SAFETY CAUTION
45283-12010

AE70,CE70,KE70,TE7#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-12040

AE70,TE7#

 1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45807-12090

AE70,TE7#

 1
45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)
45877-12010

AE70,TE7#

 1
Common parts
90101-08047
90119-08185
90119-10060
90164-50048
90179-06097
90179-10178
90201-10323
91611-40816
91611-60614
91666-40620
93315-14012
93319-13012
93319-14008
94110-50800
94512-00800
Linked diagrams
8401

ILLUST NO. 3 OF 4(7903-8108)AE70,TE7# ; (8202- )CE70

Click highlighted areas on diagram

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010110092 9017910178 9046108293 9161160820 9412041000 9451102000 9461211001 9538103020
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-12010

AE70,TE70..DX,SE,ST,XL

VARIABLE TYPE

 1
45240A - BEARING(FOR STEERING WORM)
90369-40059

TE70..SR;AE70,TE71

 2
45240A - BEARING(FOR STEERING WORM)
90369-40059

TE70..SR;AE70,TE71

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-17092

AE70,TE7#

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-22020

AE70,TE7#

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-22020

AE70,TE7#

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-12170

AE70..DX,SE,ST,XL

VARIABLE TYPE

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-28027

AE70,TE7#

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-12151

AE70..DX,SE,ST,XL

VARIABLE TYPE

 1
45331 - COVER, SECTOR SHAFT END
45304-12020

AE70..DX,SE,ST,XL

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-22020

AE70,TE7#

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

AE70,TE7#

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-14030

AE70,TE7#

厚さ=2.08,T=2.08

 1
45352-14010

AE70,TE7#

厚さ=2.00,T=2.00

 1
45352-14020

AE70,TE7#

厚さ=2.04,T=2.04

 1
45352-14060

AE70,TE7#

厚さ=2.20,T=2.20

 1
45352-14040

AE70,TE7#

厚さ=2.12,T=2.12

 1
45352-14050

AE70,TE7#

厚さ=2.16,T=2.16

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-30040

AE70..DX,SE,ST,XL

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

AE70,TE7#

 1
45401 - ARM SUB-ASSY, PITMAN
45401-19175

TE70..SR;AE70,TE71

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-12028

AE70,TE7#

 1
Common parts
90101-10092
90179-10178
90461-08293
91611-60820
94120-41000
94511-02000
94612-11001
95381-03020
