AE70-FEKES (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )4D

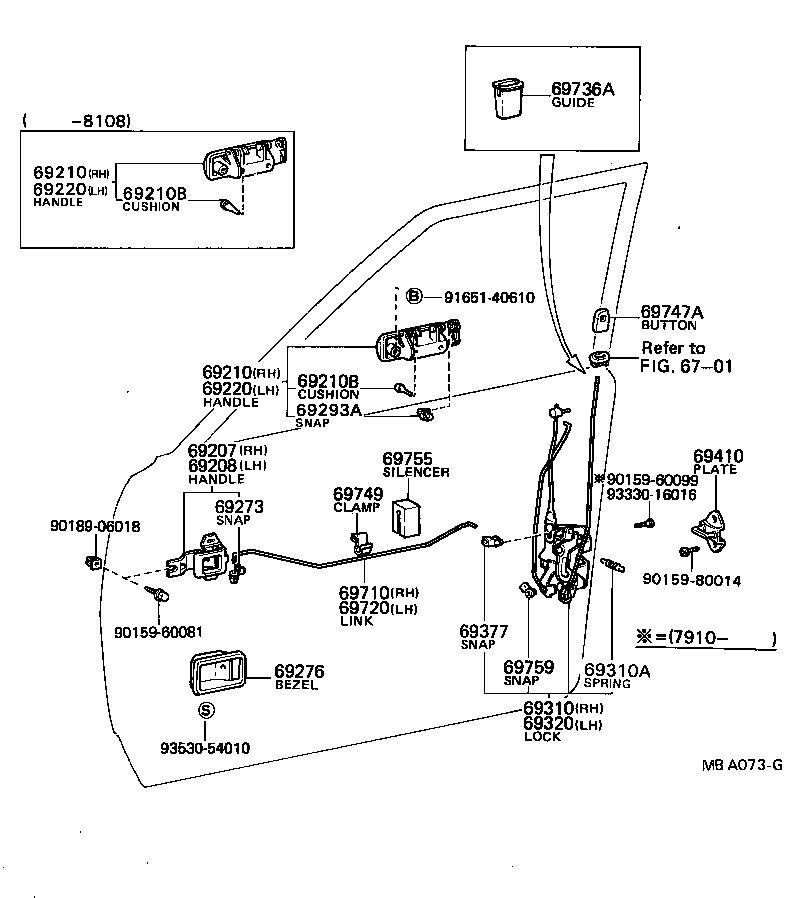

Click highlighted areas on diagram

diagram 6701 69207 69208 69210 69210 69210B 69210B 69220 69220 69273 69276 69293A 69310 69310A 69320 69377 69410 69710 69720 69736A 69747A 69749 69755 69759 9015960081 9015960099 9015980014 9018906018 9165140610 9333016016 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20020

AE70,CE70,KE70,TE7#..(GT,SE)..4D

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20020

AE70,CE70,KE70,TE7#..GT,SE

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12040

AE70,CE70,KE70,TE7#..4D

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12040

AE70,CE70,KE70,TE7#..4D

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

AE70,CE70,KE70,TE7#

 2
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

AE70,CE70,KE70,TE7#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12040

AE70,CE70,KE70,TE7#..4D

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12040

AE70,CE70,KE70,TE7#..4D

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69273-30020

AE70,KE70,TE70..2D;AE70,KE70,TE70..SE..4D;CE70,TE71..GT,SE,TRR,TRS

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604005

AE70,KE70,TE7#..4D

BEIGE,BEIGE,TRIM4#

 2
69277-1604016

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 2
69277-1604001

AE70,CE70,KE70,TE7#..4D

BLACK,BLACK,TRIM2#

 2
69277-1604006

AE70,CE70,KE70,TE71..4D

DARK BROWN,BROWN,TRIM4#

 2
69277-1604004

AE70,CE70,KE70,TE7#..4D

BLUE,BLUE,TRIM8#

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-22010

AE70,CE70,KE70,TE71..4D

RH

 1
69293-22020

AE70,CE70,KE70,TE71..4D

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12081

AE70,CE70,KE70,TE7#..4D

 1
69310-12080

AE70,KE70,TE7#..4D

 1
69310A - SPRING(FOR FRONT DOOR LOCK)
90506-08031

AE70,CE70,KE70,TE7#..4D

 2
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12080

AE70,KE70,TE7#..4D

 1
69320-12081

AE70,CE70,KE70,TE7#..4D

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

AE70,CE70,KE70,TE7#..4D

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-12040

AE70,CE70,KE70,TE7#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-12050

AE70,CE70,KE70,TE7#..4D

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-12050

AE70,CE70,KE70,TE7#..4D

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-22020

AE70,KE70,TE7#..(GT,SE,XL)..4D

 2
69736-22021

AE70,CE70,KE70,TE71..(GT,SE,SX,XL)..4D

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-2002001

AE70,CE70,KE70,TE7#..4D

BLACK,BLACK,TRIM2#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

AE70,CE70,KE70,TE7#..4D

 2
69749-30020

AE70,CE70,KE70,TE71..4D

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-12011

AE70,CE70,KE70,TE7#..4D

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

AE70,CE70,KE70,TE7#..4D

 4
Common parts
90159-60081
90159-60099
90159-80014
90189-06018
91651-40610
93330-16016
93530-54010
Linked diagrams
6701
