AE70-FEKDS (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )4D

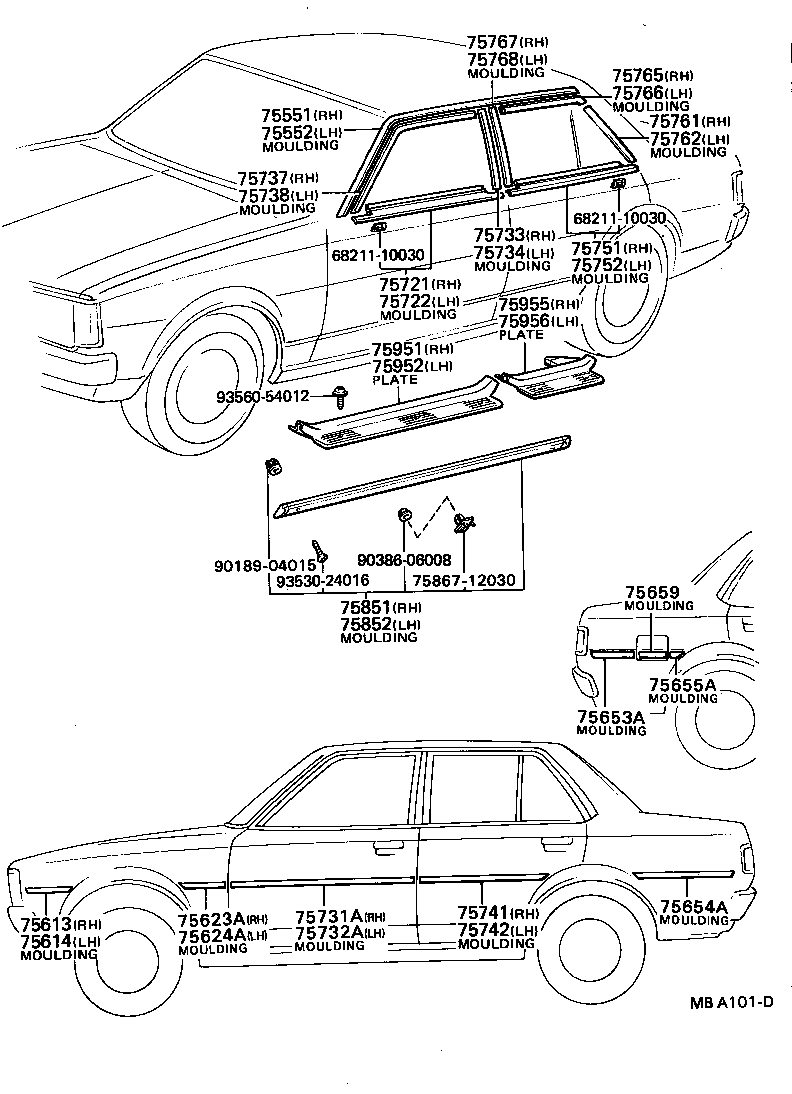

Click highlighted areas on diagram

diagram 6821110030 6821110030 75551 75552 75613 75614 75623A 75624A 75653A 75654A 75655A 75659 75721 75722 75731A 75732A 75733 75734 75737 75738 75741 75742 75751 75752 75761 75762 75765 75766 75767 75768 75851 75852 7586712030 75951 75952 75955 75956 9018904015 9038606008 9353024016 9356054012
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-12250

AE70,CE70,KE70,TE7#..4D

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-12250

AE70,CE70,KE70,TE7#..4D

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75611-12250

AE70,CE70,KE70,TE71..4D

 1
75611-12170

AE70,KE70,TE7#..4D

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75612-12210

AE70,CE70,KE70,TE71..4D

 1
75612-12130

AE70,KE70,TE7#..4D

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-12020

AE70,KE70,TE7#..4D

 1
75623-12100

AE70,KE70..(3FC,4F)..DX..4D

LISSE

 1
75623-12060

AE70,CE70,KE70,TE71..4D

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-12020

AE70,KE70,TE7#..4D

 1
75624-12100

AE70,KE70..(3FC,4F)..DX..4D

LISSE

 1
75624-12060

AE70,CE70,KE70,TE71..4D

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-12200

AE70,KE70,TE7#..4D

 1
75653-12270

AE70,CE70,KE70,TE71..4D

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-12170

AE70,KE70,TE7#..4D

 1
75654-12240

AE70,CE70,KE70,TE71..4D

 1
75655A - MOULDING, QUARTER, OUTSIDE CENTER RH
75655-12070

AE70,KE70,TE7#..4D

 1
75655-12100

AE70,CE70,KE70,TE71..4D

 1
75659 - MOULDING, FUEL FILLER LID
75659-12040

AE70,CE70,KE70,TE71..4D

 1
75659-12010

AE70,KE70,TE7#..4D

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-12160

AE70,KE70,TE7#..(GT,SE,XL)..4D

 1
75710-12160

AE70,CE70,KE70,TE71..(DX,GT,SE,SX,XL)..4D

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-12160

AE70,KE70,TE7#..(GT,SE,XL)..4D

 1
75720-12160

AE70,CE70,KE70,TE71..(DX,GT,SE,SX,XL)..4D

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-12330

AE70,CE70,KE70,TE71..4D

 1
75731-12270

AE70,KE70,TE7#..4D

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75731-12270

AE70,KE70,TE7#..4D

 1
75732-12170

AE70,CE70,KE70,TE71..4D

 1
75733 - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-12050

AE70,TE70..SE..4D

 1
75755-12050

AE70,CE70,KE70..(SE,XL)..4D

 1
75734 - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-12070

AE70,TE70..SE..4D

 1
75756-12070

AE70,CE70,KE70..(SE,XL)..4D

 1
75737 - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75751-12130

AE70,TE70..SE..4D

 1
75751-12130

AE70,CE70,KE70..(SE,XL)..4D

 1
75738 - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75752-12130

AE70,CE70,KE70..(SE,XL)..4D

 1
75752-12130

AE70,TE70..SE..4D

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-12180

AE70,CE70,KE70,TE71..4D

 1
75741-12150

AE70,KE70,TE7#..4D

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-12170

AE70,CE70,KE70,TE71..4D

 1
75742-12140

AE70,KE70,TE7#..4D

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-12030

AE70,CE70,KE70,TE71..(DX,GT,SE,SX,XL)..4D

 1
75730-12030

AE70,KE70,TE7#..(GT,SE,XL)..4D

 1
75752 - MOULDING, REAR DOOR BELT, LH
75740-12120

AE70,KE70,TE7#..(GT,SE,XL)..4D

 1
75740-12120

AE70,CE70,KE70,TE71..(DX,GT,SE,SX,XL)..4D

 1
75761 - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-12070

AE70,CE70,KE70..(SE,XL)..4D

 1
75765-12070

AE70,TE70..SE..4D

 1
75762 - MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75766-12070

AE70,CE70,KE70..(SE,XL)..4D

 1
75766-12070

AE70,TE70..SE..4D

 1
75765 - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-12040

AE70,CE70,KE70..(SE,XL)..4D

 1
75763-12040

AE70,TE70..SE..4D

 1
75766 - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-12040

AE70,TE70..SE..4D

 1
75764-12040

AE70,CE70,KE70..(SE,XL)..4D

 1
75767 - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75761-12030

AE70,CE70,KE70..(SE,XL)..4D

 1
75761-12030

AE70,TE70..SE..4D

 1
75768 - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75762-12030

AE70,TE70..SE..4D

 1
75762-12030

AE70,CE70,KE70..(SE,XL)..4D

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-19115

AE70,KE70..(SE,XL)..4D

 1
75850-19115

AE70,KE70,TE70..SE,ST,XL

 1
75852 - MOULDING, ROCKER PANEL, LH
75860-19115

AE70,KE70,TE70..SE,ST,XL

 1
75860-19115

AE70,KE70..(SE,XL)..4D

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1211001

AE70,CE70,KE70,TE7#..4D

BLACK,BLACK,TRIM2#

 1
67913-1211006

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67913-1211004

AE70,CE70,KE70,TE7#..4D

BLUE,BLUE,TRIM8#

 1
67913-1211026

AE70,CE70,KE70,TE71..4D

DARK BROWN,BROWN,TRIM4#

 1
67913-1211016

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-1211001

AE70,CE70,KE70,TE7#..4D

BLACK,BLACK,TRIM2#

 1
67914-1211006

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67914-1211004

AE70,CE70,KE70,TE7#..4D

BLUE,BLUE,TRIM8#

 1
67914-1211016

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67914-1211026

AE70,CE70,KE70,TE71..4D

DARK BROWN,BROWN,TRIM4#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-1204016

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67917-1204006

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67917-1204026

AE70,CE70,KE70,TE71..4D

DARK BROWN,BROWN,TRIM4#

 1
67917-1204001

AE70,CE70,KE70,TE7#..4D

BLACK,BLACK,TRIM2#

 1
67917-1204004

AE70,CE70,KE70,TE7#..4D

BLUE,BLUE,TRIM8#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67918-1204016

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67918-1204001

AE70,CE70,KE70,TE7#..4D

BLACK,BLACK,TRIM2#

 1
67918-1204006

AE70,KE70,TE7#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67918-1204026

AE70,CE70,KE70,TE71..4D

DARK BROWN,BROWN,TRIM4#

 1
67918-1204004

AE70,CE70,KE70,TE7#..4D

BLUE,BLUE,TRIM8#

 1
Common parts
68211-10030
75867-12030
90189-04015
90386-06008
93530-24016
93560-54012
