AE70-FEHDS (1979)

Toyota Sprinter

Production Oct 1979 - Apr 1983
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )ATM

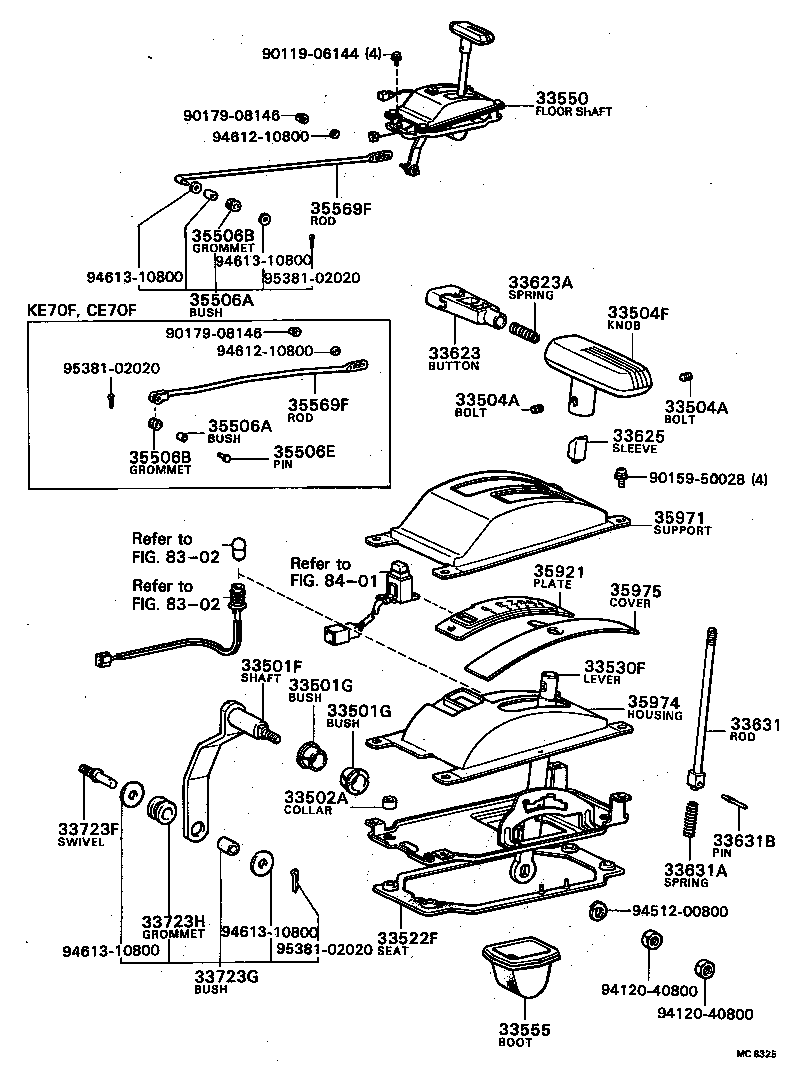

Click highlighted areas on diagram

diagram 33501F 33501G 33501G 33502A 33504A 33504A 33504F 33522F 33530F 33550 33555 33623 33623A 33625 33631 33631A 33631B 33723F 33723G 33723H 35506A 35506A 35506B 35506B 35506E 35569F 35569F 35921 35971 35974 35975 8302 8302 8401 9011906144 9015950028 9017908146 9017908146 9412040800 9412040800 9451200800 9461210800 9461210800 9461310800 9461310800 9461310800 9461310800 9538102020 9538102020 9538102020
Part # Description Qty Price
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-16045

AE70,CE70,KE70,TE70..ATM

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-16045

AE70,CE70,KE70,TE70..ATM

 2
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06005

AE70,CE70,KE70,TE70..ATM

 4
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

AE70,CE70,KE70,TE70..ATM

 2
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

AE70,CE70,KE70,TE70..ATM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-1209001

AE70,KE70,TE70..ATM..(DX,ST,XL)

BLACK,BLACK,TRIM2#

 1
33542-2403001

AE70,CE70..ATM..(DX,SR,XL)

BLACK,BLACK,TRIM2#

 1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-12051

AE70,CE70,KE70,TE70..ATM

 1
33522-12050

AE70,KE70,TE70..ATM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-12121

AE70,CE70,KE70..ATM

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-12171

AE70..3FC..SE;AE70..HT..3FC..XL

KNOB=WOODY

 1
33550-12161

AE70..3FC..(DX,SR,XL)

 1
33555 - BOOT, SHIFT LEVER
33555-12080

AE70,CE70,KE70,TE70..ATM

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-12031

AE70,KE70,TE70..ATM..(DX,ST,XL)

 1
33623-22060

AE70,CE70..ATM..(DX,SR,XL)

BLACK

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-09009

AE70,KE70,TE70..ATM..(DX,ST,XL)

 1
90501-07009

AE70,CE70..ATM..(DX,SR,XL)

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-22020

AE70,CE70,KE70,TE70..ATM

 1
33631 - ROD, DETENT
33631-12050

AE70,KE70,TE70..ATM

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005

AE70,CE70,KE70,TE70..ATM

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90256-04001

AE70,CE70,KE70..ATM

 1
90254-04017

AE70,KE70,TE70..ATM

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

AE70,CE70,KE70..ATM

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90999-99017

AE70,CE70,KE70..ATM

 1
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177

AE70,CE70,KE70..ATM

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12111

AE70..3FC

 1
35971 - SUPPORT, POSITION INDICATOR
35971-12050

AE70,KE70,TE70..ATM

 1
35971-12070

AE70,CE70,KE70..ATM

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12040

AE70,KE70,TE70..ATM

 1
35974-12060

AE70,CE70,KE70..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12071

AE70,CE70,KE70..ATM

 1
35975-12070

AE70,KE70,TE70..ATM

 1
Common parts
90119-06144
90159-50028
90179-08146
94120-40800
94512-00800
94612-10800
94613-10800
95381-02020
Linked diagrams
8302
8401
