Toyota Sprinter AE70 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
SPRINTER
AE70-FCMXS (1979)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AE70-FCMXS (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983

Engine 3AU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

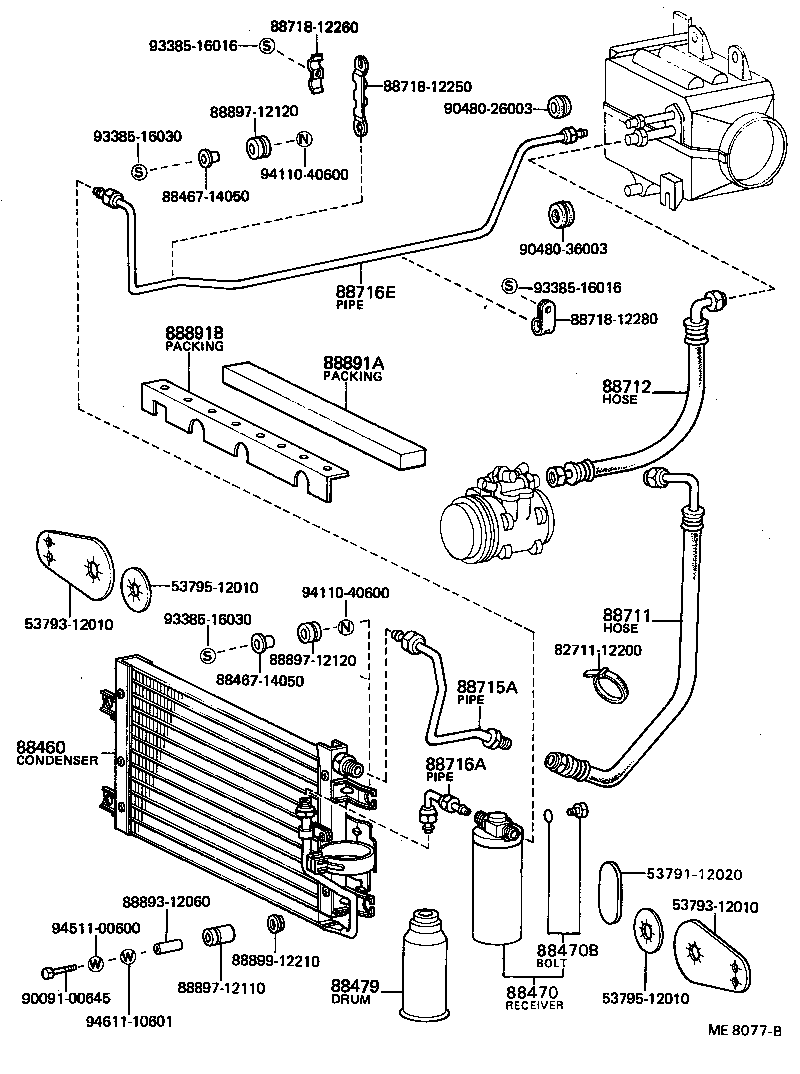

(7903-8108)AE70

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-12160	AE70	03/1979 - 07/1980	1
88460-12130	AE70 OKINAWA SPEC	03/1979 - 08/1981	1
88460-12170	AE70,TE71;KE70..3FC	08/1981 - 04/1983	1
88460-12130	AE70	07/1980 - 08/1981	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070	AE70,TE71;KE70..3FC	08/1981 - 04/1983	1
88470-12070	AE70	03/1979 - 08/1981	1
88470B - BOLT, FUSE
90099-04579	AE70,CE70,KE70,TE7#	03/1979 - 04/1983	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	AE70,CE70,KE70,TE7# 400G	03/1979 - 04/1983	2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12160	AE70..MTM	03/1979 - 08/1981	1
88711-12230	AE70	08/1981 - 04/1983	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12310	AE70	03/1979 - 04/1983	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12131	AE70	08/1981 - 04/1983	1
88715-12130	AE70	03/1979 - 08/1981	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12540	AE70,TE71;KE70..3FC	08/1981 - 04/1983	1
88716-12420	AE70,TE7#	03/1979 - 08/1981	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12460	AE70	03/1979 - 08/1981	1
88716-12550	AE70	08/1981 - 04/1983	1
88891A - PACKING A (FOR COOLER)
53291-12050	AE70,TE7#	03/1979 - 04/1983	1
88891B - PACKING B (FOR COOLER)
53381-12100	AE70,KE70,TE71	03/1979 - 05/1979	1
53381-12110	AE70,KE70,TE71	08/1979 - 04/1983	1
53381-12110	AE70,KE70,TE71	05/1979 - 08/1979	1
Common parts
53791-12020
53793-12010
53795-12010
82711-12200
88467-14050
88718-12250
88718-12260
88718-12280
88893-12060
88897-12110
88897-12120
88899-12210
90091-00645
90480-26003
90480-36003
93385-16016
93385-16030
94110-40600
94511-00600
94611-10601

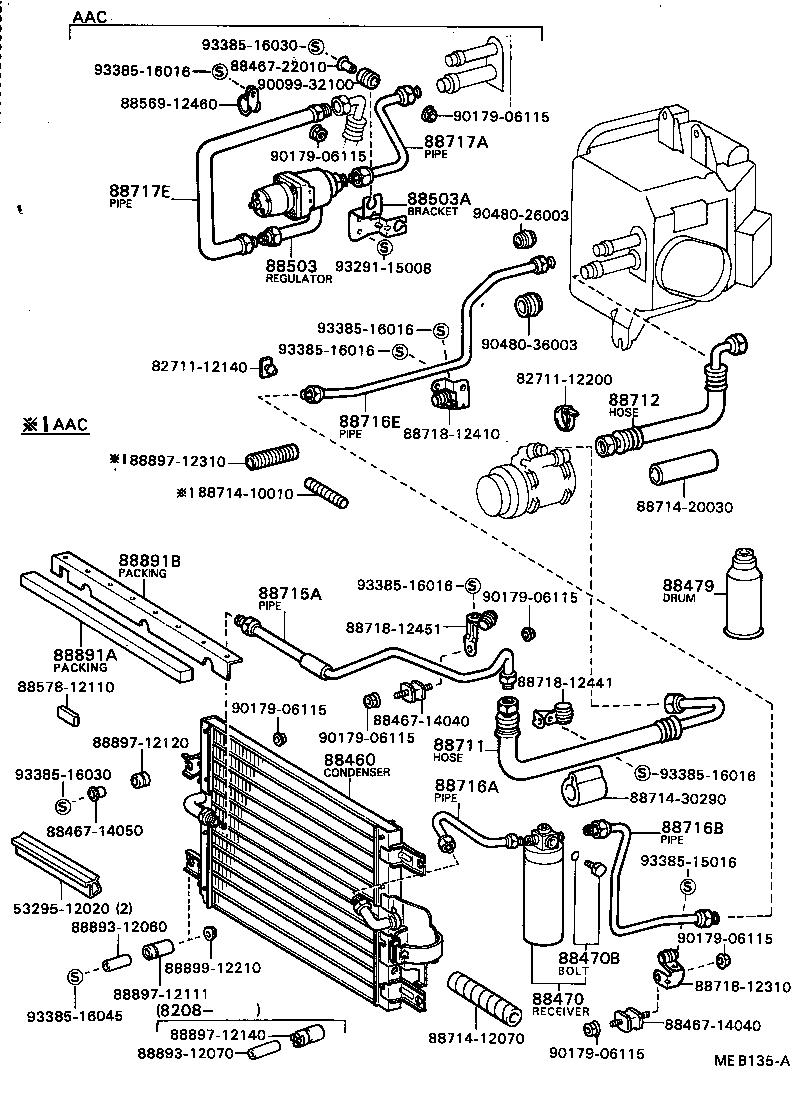

(8108- )AE70

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-12160	AE70	03/1979 - 07/1980	1
88460-12130	AE70 OKINAWA SPEC	03/1979 - 08/1981	1
88460-12170	AE70,TE71;KE70..3FC	08/1981 - 04/1983	1
88460-12130	AE70	07/1980 - 08/1981	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070	AE70,TE71;KE70..3FC	08/1981 - 04/1983	1
88470-12070	AE70	03/1979 - 08/1981	1
88470B - BOLT, FUSE
90099-04579	AE70,CE70,KE70,TE7#	03/1979 - 04/1983	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	AE70,CE70,KE70,TE7# 400G	03/1979 - 04/1983	2
88503 - REGULATOR ASSY, PRESSURE
88503-12010	AE70 W/AUTOMATIC AIR CONDITIONER	08/1981 - 04/1983	1
88503A - BRACKET, PRESSURE REGULATOR
88688-12090	AE70 W/AUTOMATIC AIR CONDITIONER	08/1981 - 04/1983	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12160	AE70..MTM	03/1979 - 08/1981	1
88711-12230	AE70	08/1981 - 04/1983	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12310	AE70	03/1979 - 04/1983	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12131	AE70	08/1981 - 04/1983	1
88715-12130	AE70	03/1979 - 08/1981	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12540	AE70,TE71;KE70..3FC	08/1981 - 04/1983	1
88716-12420	AE70,TE7#	03/1979 - 08/1981	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-12560	AE70,TE71;KE70..3FC	08/1981 - 04/1983	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12460	AE70	03/1979 - 08/1981	1
88716-12550	AE70	08/1981 - 04/1983	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12140	AE70 W/AUTOMATIC AIR CONDITIONER	08/1981 - 04/1983	1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-12150	AE70 W/AUTOMATIC AIR CONDITIONER	08/1981 - 04/1983	1
88891A - PACKING A (FOR COOLER)
53291-12050	AE70,TE7#	03/1979 - 04/1983	1
88891B - PACKING B (FOR COOLER)
53381-12100	AE70,KE70,TE71	03/1979 - 05/1979	1
53381-12110	AE70,KE70,TE71	08/1979 - 04/1983	1
53381-12110	AE70,KE70,TE71	05/1979 - 08/1979	1
Common parts
53295-12020
82711-12140
82711-12200
88467-14040
88467-14050
88467-22010
88569-12460
88578-12110
88714-10010
88714-12070
88714-20030
88714-30290
88718-12310
88718-12410
88718-12441
88718-12451
88893-12060
88893-12070
88897-12111
88897-12120
88897-12140
88897-12310
88899-12210
90099-32100
90179-06115
90480-26003
90480-36003
93291-15008
93385-15016
93385-16016
93385-16030
93385-16045

AE70-FCMXS (1979)

(7903-8108)AE70

(8108- )AE70
