AE70-FCMXS (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

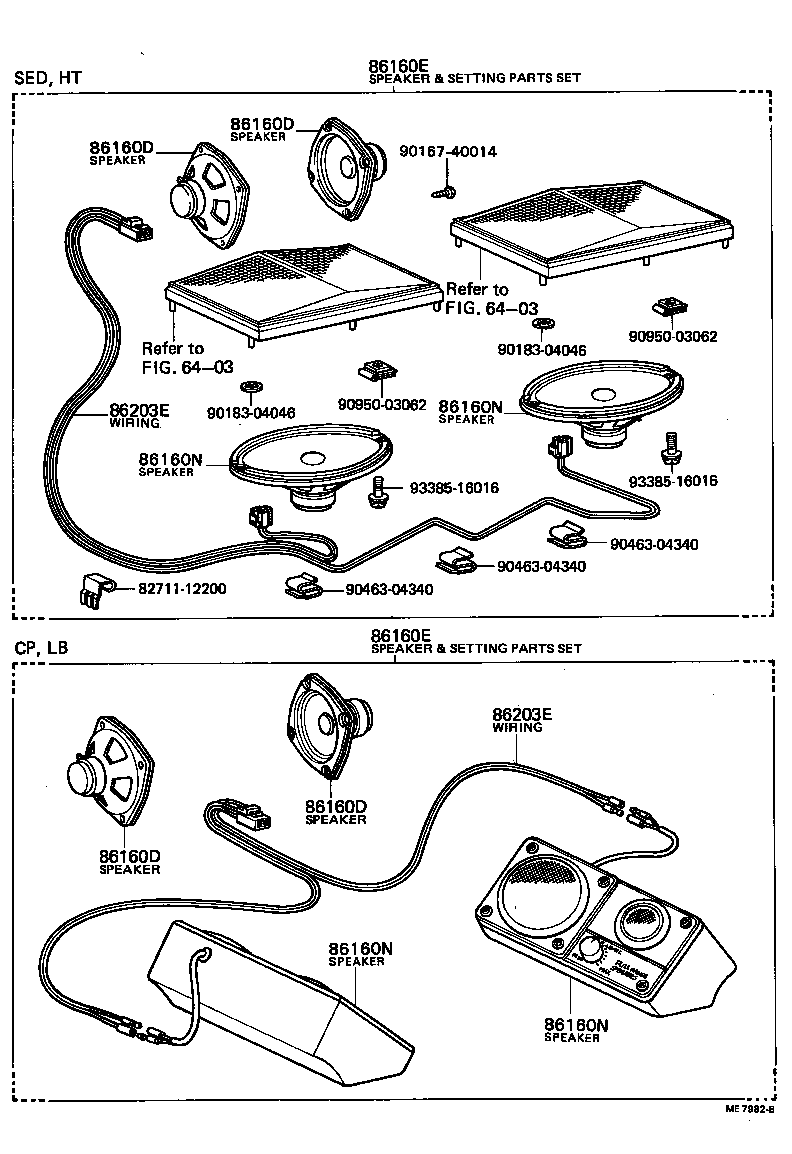

ILLUST NO. 1 OF 2(7903-8108)

Click highlighted areas on diagram

diagram 6403 6403 8271112200 86160D 86160D 86160D 86160D 86160E 86160E 86160N 86160N 86160N 86160N 86203E 86203E 9016740014 9018304046 9018304046 9046304340 9046304340 9046304340 9095003062 9095003062 9338516016 9338516016
Part # Description Qty Price
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-12080

AE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL

 2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-12080

AE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL

 2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-12080

AE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL

 2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-12080

AE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL

 2
86160E - SPEAKER SET, STEREO COMPONENT
86160-19155

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

 1
86160E - SPEAKER SET, STEREO COMPONENT
86160-19155

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

 1
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86150-12020

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

LH

 1
86150-12010

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

RH

 1
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86150-12020

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

LH

 1
86150-12010

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

RH

 1
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86150-12020

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

LH

 1
86150-12010

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

RH

 1
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86150-12020

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

LH

 1
86150-12010

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

RH

 1
86203E - WIRE, STEREO COMPONENT SPEAKER, NO.1
86203-12050

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

 1
86203E - WIRE, STEREO COMPONENT SPEAKER, NO.1
86203-12050

AE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)

 1
Common parts
82711-12200
90167-40014
90183-04046
90463-04340
90950-03062
93385-16016
Linked diagrams
6403

ILLUST NO. 1 OF 2(7903- )

Click highlighted areas on diagram

diagram 86160 86160 9016740014 9016740014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-19135

AE70,KE70,TE7#

 2
86160-19325

AE70,CE70,KE70,TE71

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-19135

AE70,KE70,TE7#

 2
86160-19325

AE70,CE70,KE70,TE71

 2
Common parts
90167-40014

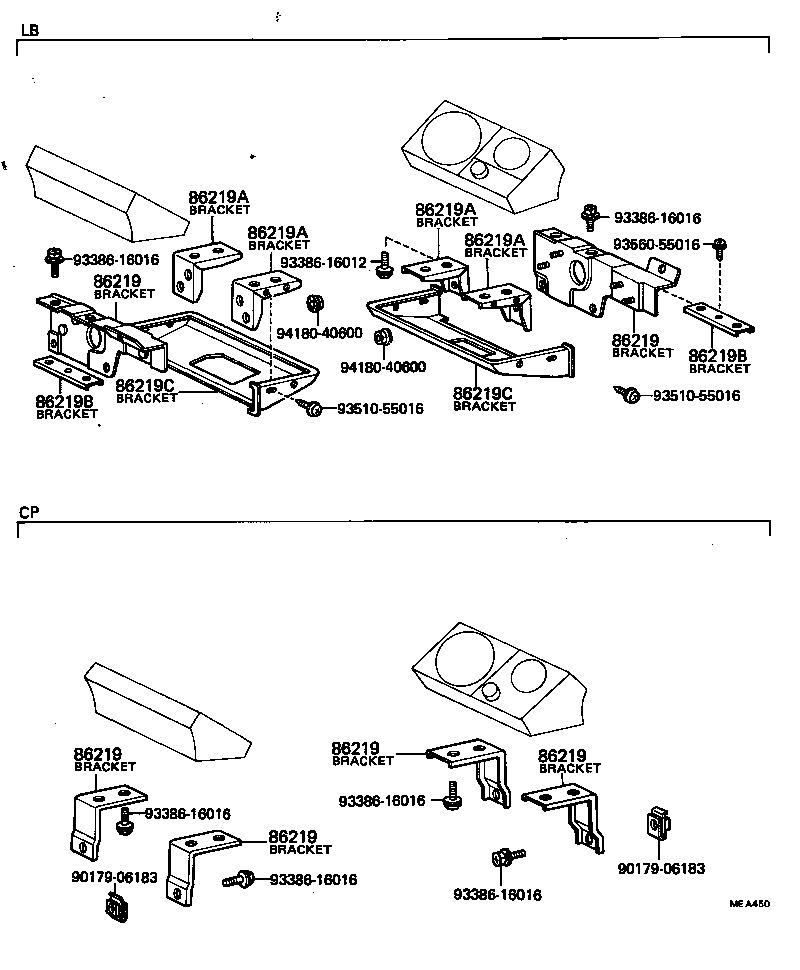

ILLUST NO. 2 OF 2(7903-8108)CP,LB

Click highlighted areas on diagram

diagram 86219 86219 86219 86219 86219 86219 86219A 86219A 86219A 86219A 86219B 86219B 86219C 86219C 9017906183 9017906183 9338616012 9338616016 9338616016 9338616016 9338616016 9338616016 9338616016 9351055016 9351055016 9356055016 9418040600 9418040600
Part # Description Qty Price
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-12010

AE70,KE70,TE7#..SR,ST,TRR

FR

 2
86219-12020

AE70,KE70,TE7#..SR,ST,TRR

RR

 2
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-12010

AE70,KE70,TE7#..SR,ST,TRR

FR

 2
86219-12020

AE70,KE70,TE7#..SR,ST,TRR

RR

 2
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-12010

AE70,KE70,TE7#..SR,ST,TRR

FR

 2
86219-12020

AE70,KE70,TE7#..SR,ST,TRR

RR

 2
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-12010

AE70,KE70,TE7#..SR,ST,TRR

FR

 2
86219-12020

AE70,KE70,TE7#..SR,ST,TRR

RR

 2
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-12010

AE70,KE70,TE7#..SR,ST,TRR

FR

 2
86219-12020

AE70,KE70,TE7#..SR,ST,TRR

RR

 2
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-12010

AE70,KE70,TE7#..SR,ST,TRR

FR

 2
86219-12020

AE70,KE70,TE7#..SR,ST,TRR

RR

 2
Common parts
90179-06183
93386-16012
93386-16016
93510-55016
93560-55016
94180-40600
