AE70-FCMXS (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )AE70,CE70,KE70,TE70

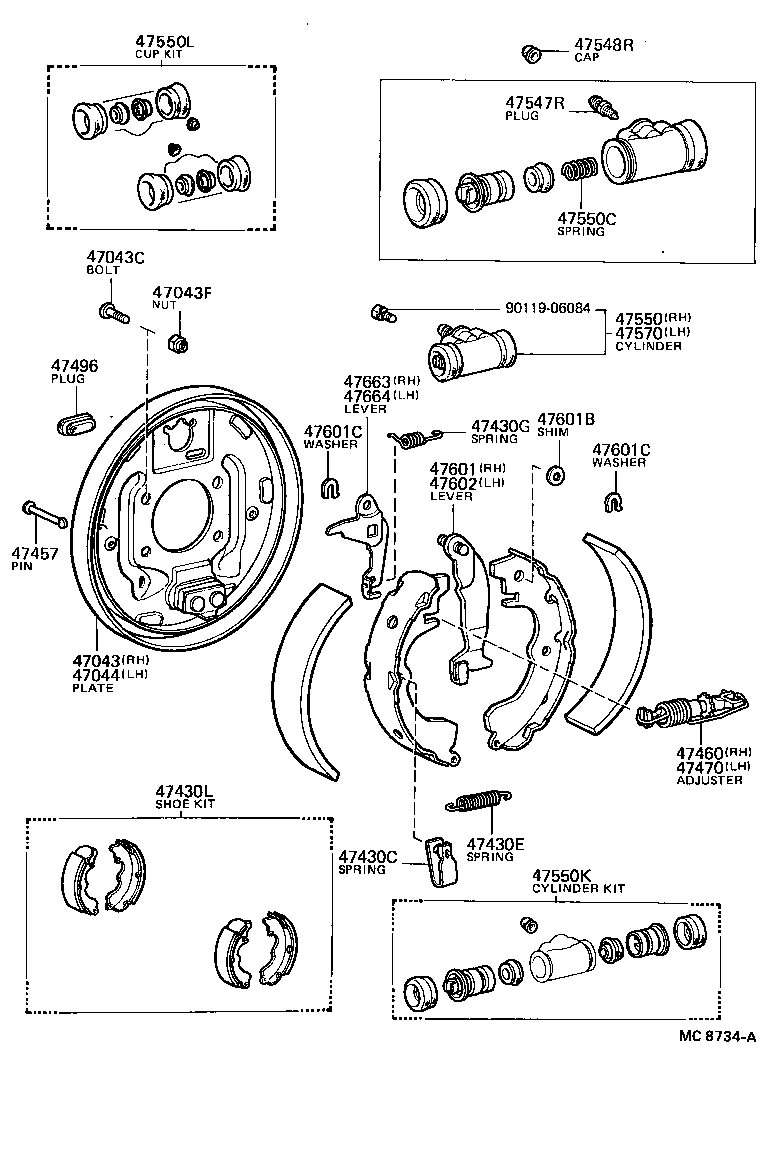

Click highlighted areas on diagram

diagram 47043 47043C 47043F 47044 47430C 47430E 47430G 47430L 47457 47460 47470 47496 47547R 47548R 47550 47550C 47550K 47550L 47570 47601 47601B 47601C 47601C 47602 47663 47664 9011906084
Part # Description Qty Price
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-12030

AE70,CE70,KE70

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-22020

AE70,CE70,KE70

*10−1.25PX26−10

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94181-11000

AE70,KE70,TE70

 8
94181-11000

AE70,CE70,KE70,TE71

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-12030

AE70,CE70,KE70

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47446-10010

AE70,CE70,KE70,TE70

 4
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-18299

AE70,CE70,KE70,TE70

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12276

AE70,CE70,KE70,TE70

 2
47430L - SHOE KIT, REAR BRAKE
04495-12060

AE70,KE70

 1
04495-12010

AE70,CE70,KE70,TE70

 1
04497-12010

AE70,CE70,KE70,TE70

REBUILT

 1
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-10010

AE70,CE70,KE70,TE70

 4
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47061-12020

AE70,CE70,KE70,TE70

 1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47062-12020

AE70,CE70,KE70,TE70

 1
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

AE70,KE70,TE70

 2
47491-20011

AE70,CE70,KE70,TE71

 2
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010

AE70,KE70,TE70

 2
47547-20010

AE70,CE70,KE70,TE71

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

AE70,KE70,TE70

 2
31478-30010

AE70,CE70,KE70,TE71

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-19117

AE70,KE70

ID=20.64

 1
47550-19116

AE70,KE70,TE70

ID=20.64

 1
47550-19165

AE70,CE70,KE70

ID=20.64

 1
47550-19115

AE70,KE70,TE70

ID=20.64

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-07006

AE70,CE70,KE70,TE70

 1
47550K - CYLINDER KIT, REAR WHEEL
04474-11030

AE70,KE70,TE70

 2
04474-12020

AE70,CE70,KE70

 2
04474-11031

AE70,KE70,TE70

 2
04474-11032

AE70,KE70

 2
47550L - CUP KIT, REAR WHEEL CYLINDER
04906-11031

AE70,CE70,KE70,TE70

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-19117

AE70,KE70

ID=20.64

 1
47550-19115

AE70,KE70,TE70

ID=20.64

 1
47550-19116

AE70,KE70,TE70

ID=20.64

 1
47550-19165

AE70,CE70,KE70

ID=20.64

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47611-12011

AE70,CE70,KE70,TE70

 1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-08173

AE70,KE70,TE70

厚さ=0.4,T=0.4

 2
90564-08151

AE70,KE70,TE70

厚さ=0.6,T=0.6

 2
90564-08150

AE70,CE70,KE70,TE71

厚さ=0.3,T=0.3

 2
90564-08152

AE70,KE70,TE70

厚さ=0.9,T=0.9

 2
90564-08172

AE70,KE70,TE70

厚さ=0.2,T=0.2

 2
90564-08173

AE70,CE70,KE70,TE71

厚さ=0.4,T=0.4

 2
90564-08174

AE70,KE70,TE70

厚さ=0.5,T=0.5

 2
90564-08150

AE70,KE70,TE70

厚さ=0.3,T=0.3

 2
90564-08172

AE70,CE70,KE70,TE71

厚さ=0.2,T=0.2

 2
90564-08152

AE70,CE70,KE70,TE71

厚さ=0.9,T=0.9

 2
90564-08174

AE70,CE70,KE70,TE71

厚さ=0.5,T=0.5

 2
90564-08151

AE70,CE70,KE70,TE71

厚さ=0.6,T=0.6

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

AE70,KE70,TE70

厚さ=1.2

 4
90213-06013

AE70,CE70,KE70,TE71

厚さ=1.2

 4
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

AE70,KE70,TE70

厚さ=1.2

 4
90213-06013

AE70,CE70,KE70,TE71

厚さ=1.2

 4
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47612-12011

AE70,CE70,KE70,TE70

 1
47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47643-12011

AE70,CE70,KE70,TE70

 1
47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47644-12011

AE70,CE70,KE70,TE70

 1
Common parts
90119-06084
