AE70-FCMXS (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

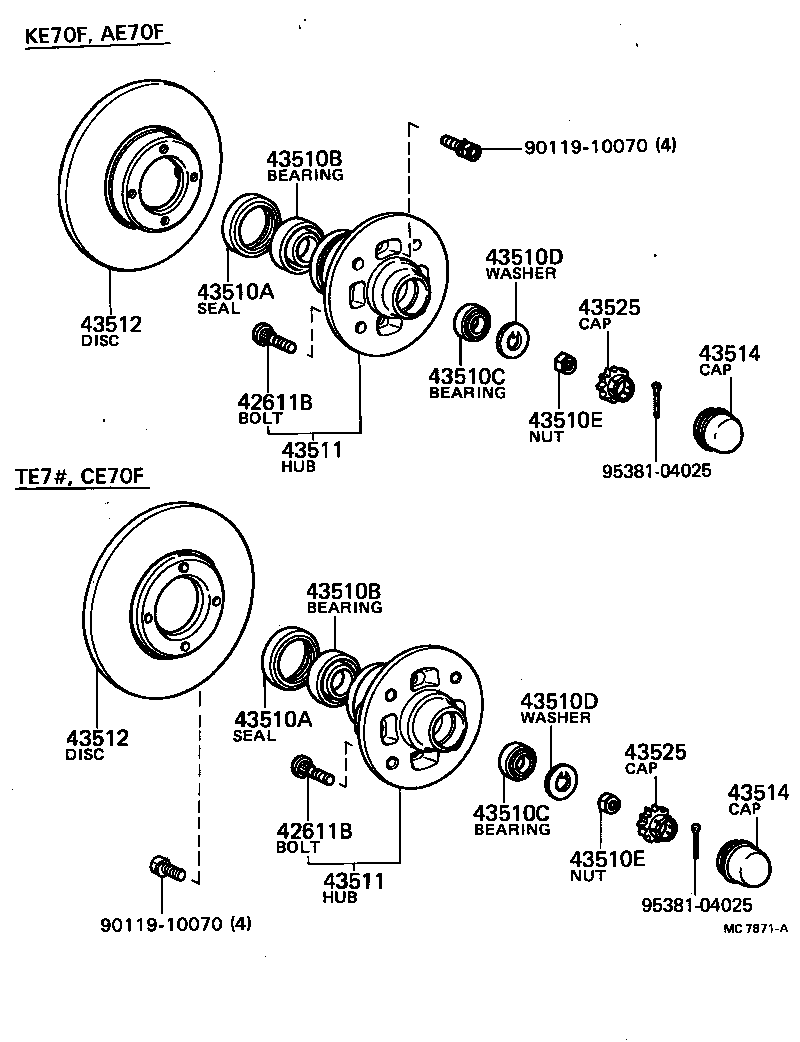

Click highlighted areas on diagram

diagram 42611B 42611B 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43511 43511 43512 43512 43514 43514 43525 43525 9011910070 9011910070 9538104025 9538104025
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

AE70,CE70,KE70,TE7#

 8
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

AE70,CE70,KE70,TE7#

 8
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-41123

AE70,CE70,KE70,TE7#

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-41123

AE70,CE70,KE70,TE7#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-29068

AE70,CE70,KE70,TE7#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-29068

AE70,CE70,KE70,TE7#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-17017

AE70,CE70,KE70,TE7#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-17017

AE70,CE70,KE70,TE7#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-16010

AE70,CE70,KE70,TE7#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-16010

AE70,CE70,KE70,TE7#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-16137

AE70,CE70,KE70,TE7#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-16137

AE70,CE70,KE70,TE7#

 2
43511 - HUB, FRONT AXLE
43502-12040

AE70,KE70

 2
43511 - HUB, FRONT AXLE
43502-12040

AE70,KE70

 2
43512 - DISC, FRONT
43512-12070

AE70,KE70

 2
43512 - DISC, FRONT
43512-12070

AE70,KE70

 2
43514 - CAP, FRONT HUB GREASE
43514-20010

AE70,CE70,KE70,TE7#

 2
43514 - CAP, FRONT HUB GREASE
43514-20010

AE70,CE70,KE70,TE7#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-20011

AE70,CE70,KE70,TE7#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-20011

AE70,CE70,KE70,TE7#

 2
Common parts
90119-10070
95381-04025
