AE70-FCMXS (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )AE70..MTM

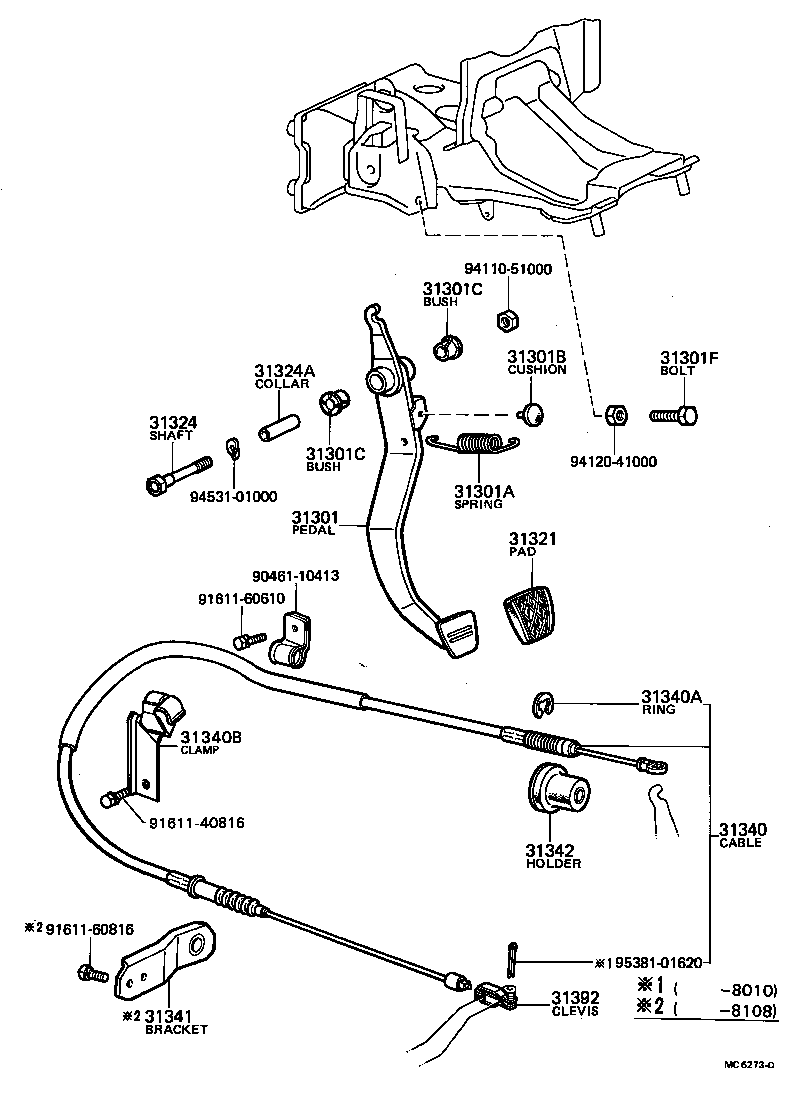

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31340 31340A 31340B 31341 31342 31392 9046110413 9161140816 9161160610 9161160816 9411051000 9412041000 9453101000 9538101620
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12160

AE70..MTM

 1
31301-12120

AE70,KE70..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14003

AE70,CE70,KE70,TE7#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

AE70,CE70,KE70,TE7#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

AE70,CE70,KE70,TE7#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

AE70,CE70,KE70,TE7#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AE70,CE70,KE70,TE7#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-12030

AE70,CE70,KE70,TE7#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

AE70,CE70,KE70,TE7#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AE70,CE70,KE70,TE7#..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-19255

AE70..MTM

 1
31340-19217

AE70..MTM

 1
31340-19215

AE70..MTM

 1
31340-19216

AE70..MTM

 1
31340A - RING, E(FOR CLUTCH RELEASE CABLE)
96160-01200

AE70,KE70..MTM

 1
31340B - CLAMP(FOR CLUTCH RELEASE CABLE)
90949-01007

AE70..MTM

 1
31341 - BRACKET, CLUTCH CABLE
31341-12012

AE70..MTM

 1
31341-12011

AE70..MTM

 1
31341-12010

AE70..MTM

 1
31342 - HOLDER, CLUTCH CABLE, INNER
31342-12901

AE70,KE70..MTM

 1
31342-12902

AE70,KE70..MTM

 1
31392 - CLEVIS, CLUTCH CABLE
31392-12010

AE70..MTM

 1
31392-10010

AE70,KE70..MTM

 1
31392-10010

AE70,KE70..MTM

 1
Common parts
90461-10413
91611-40816
91611-60610
91611-60816
94110-51000
94120-41000
94531-01000
95381-01620
