AE70-FCMXS (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )3AU

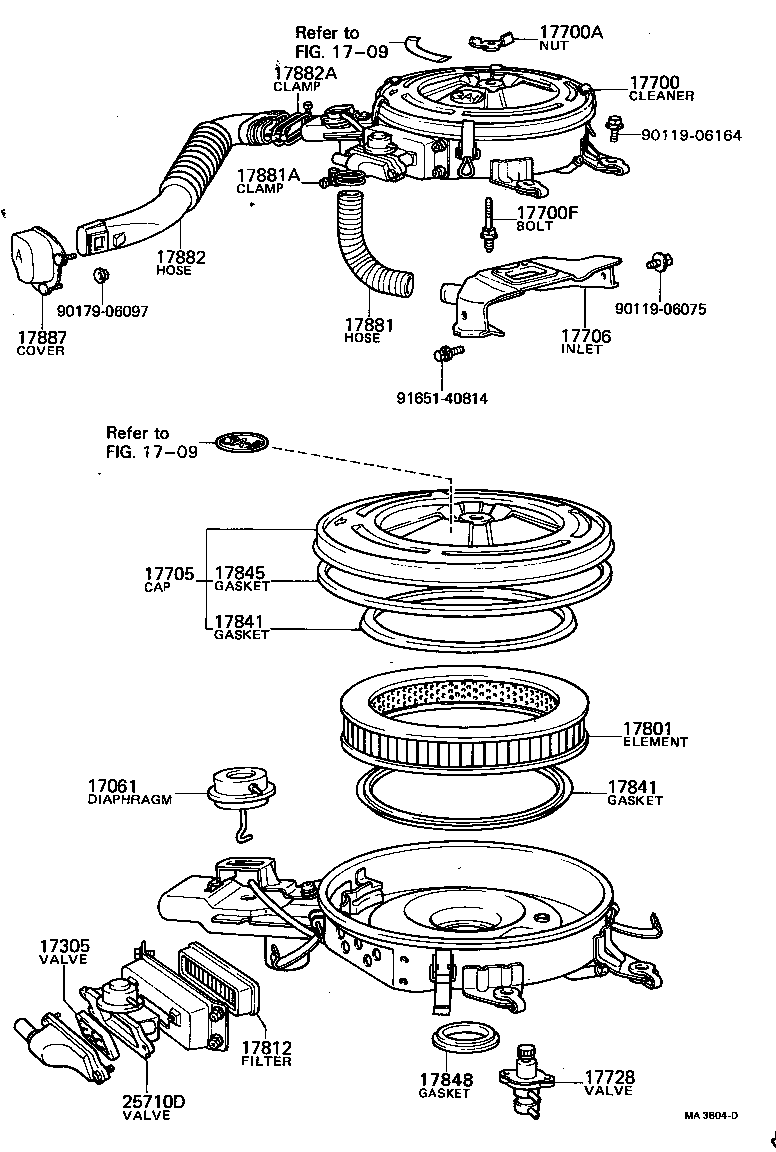

Click highlighted areas on diagram

diagram 17061 1709 1709 17305 17700 17700A 17700F 17705 17706 17728 17801 17812 17841 17841 17845 17848 17881 17881A 17882 17882A 17887 25710D 9011906075 9011906164 9017906097 9165140814
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-26010

3AU..AE70

 1
17305 - VALVE SUB-ASSY, REED
17305-15030

3AU..AE70

 1
17305-15010

3AU..AE70

 1
17700 - CLEANER ASSY, AIR
17700-15080

3AU..AE70

 1
17700-15020

3AU..AE70

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

3AU..AE70

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06230

3AU..AE70

L=65,S=25&10.5

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-15030

3AU..AE70

 1
17705-15020

3AU..AE70

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17902-15050

3AU..AE70

 1
17902-15010

3AU..AE70

 1
17728 - VALVE, THERMOSTATIC
17728-15040

3AU..AE70

 1
17728-15030

3AU..AE70

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010

3AU..AE70

 1
17812 - FILTER, AIR CLEANER, NO.2
17812-31010

3AU..AE70

 1
17812-15010

3AU..AE70

 1
17812-31010

3AU..AE70

 1
17841 - GASKET, FILTER ELEMENT
17841-15010

3AU..AE70

 2
17841 - GASKET, FILTER ELEMENT
17841-15010

3AU..AE70

 2
17845 - GASKET, AIR CLEANER CAP
17845-15020

3AU..AE70

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63001

3AU..AE70

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-34071

3AU..AE70

 1
17881-63010

3AU..AE70

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

3AU..AE70

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-15030

3AU..AE70

 1
17881-12040

3AU..AE70

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01005

3AU..AE70

 1
17887 - COVER, AIR CLEANER HOSE
17887-15010

3AU..AE70

 1
25710D - VALVE ASSY, AIR SWITCHING
25710-15010

3AU..AE70

 1
25710-63010

3AU..AE70

 1
25710-15011

3AU..AE70

 1
Common parts
90119-06075
90119-06164
90179-06097
91651-40814
Linked diagrams
1709
