AE70-FCMXS (1979)
Toyota Sprinter
(7903-8108)3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-15020 |
3AU..AE70 |
1 | ||
| 17111-15021 |
3AU..AE70 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-15030 |
3AU..AE70 |
1 | ||
| 17118-15020 |
3AU..AE70 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-15020 |
3AU..AE70 |
1 | ||
| 17141-15060 |
3AU..AE70 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 92112-40832 |
3AU..AE70 L=42,S=16&10 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10017 |
3AU..AE70 L=41,S=14&21 |
3 | ||
| 90116-10017 |
3AU..AE70 L=41,S=14&21 |
3 | ||
| 90116-10017 |
3AU..AE70 L=41,S=14&21 |
3 | ||
| 90116-10058 |
3AU..AE70 L=46.5,S=14&20 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61032 |
3AU..AE70 L=44,S=12&20 |
2 | ||
| 92112-61032 |
3AU..AE70 L=44,S=12&20 |
2 | ||
| 92112-61035 |
3AU..AE70 L=47,S=12&20 |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-15010 |
3AU..AE70 |
1 | ||
| 17233 - COUNTER WEIGHT | ||||
| 17233-15010 |
3AU..AE70 |
1 | ||
| 17233A - SPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT) | ||||
| 90510-06001 |
3AU..AE70 |
1 | ||
| 90510-06002 |
3AU..AE70 |
1 | ||
| 17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT) | ||||
| 90501-08022 |
3AU..AE70 |
1 | ||
| 17233C - BOLT(FOR COUNTER WEIGHT) | ||||
| 90109-10045 |
3AU..AE70 |
1 | ||
| 17233D - SHIM(FOR COUNTER WEIGHT) | ||||
| 90910-10005 |
3AU..AE70 |
1 | ||
| 17233E - RING, E(FOR COUNTER WEIGHT) | ||||
| 96160-00800 |
3AU..AE70 |
1 | ||
| Common parts | ||||
| 90119-08029 | ||||
| 90119-10038 | ||||
| 90201-10089 | ||||
| 90201-10444 | ||||
| 91611-60830 | ||||
| 91611-60865 | ||||
| 92122-40818 | ||||
| 93219-15016 | ||||
| 94181-11000 | ||||
(8108- )3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-15020 |
3AU..AE70 |
1 | ||
| 17111-15021 |
3AU..AE70 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-15030 |
3AU..AE70 |
1 | ||
| 17118-15020 |
3AU..AE70 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-15020 |
3AU..AE70 |
1 | ||
| 17141-15060 |
3AU..AE70 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08128 |
3AU..AE70 |
2 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 92112-40832 |
3AU..AE70 L=42,S=16&10 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10017 |
3AU..AE70 L=41,S=14&21 |
3 | ||
| 90116-10017 |
3AU..AE70 L=41,S=14&21 |
3 | ||
| 90116-10017 |
3AU..AE70 L=41,S=14&21 |
3 | ||
| 90116-10058 |
3AU..AE70 L=46.5,S=14&20 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61032 |
3AU..AE70 L=44,S=12&20 |
2 | ||
| 92112-61032 |
3AU..AE70 L=44,S=12&20 |
2 | ||
| 92112-61035 |
3AU..AE70 L=47,S=12&20 |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-15020 |
3AU..AE70 |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-15010 |
3AU..AE70 |
1 | ||
| Common parts | ||||
| 90119-08078 | ||||
| 90119-08367 | ||||
| 90119-10274 | ||||
| 90201-10089 | ||||
| 91611-60830 | ||||
| 91611-60865 | ||||
| 92122-40818 | ||||
| 94181-11000 | ||||

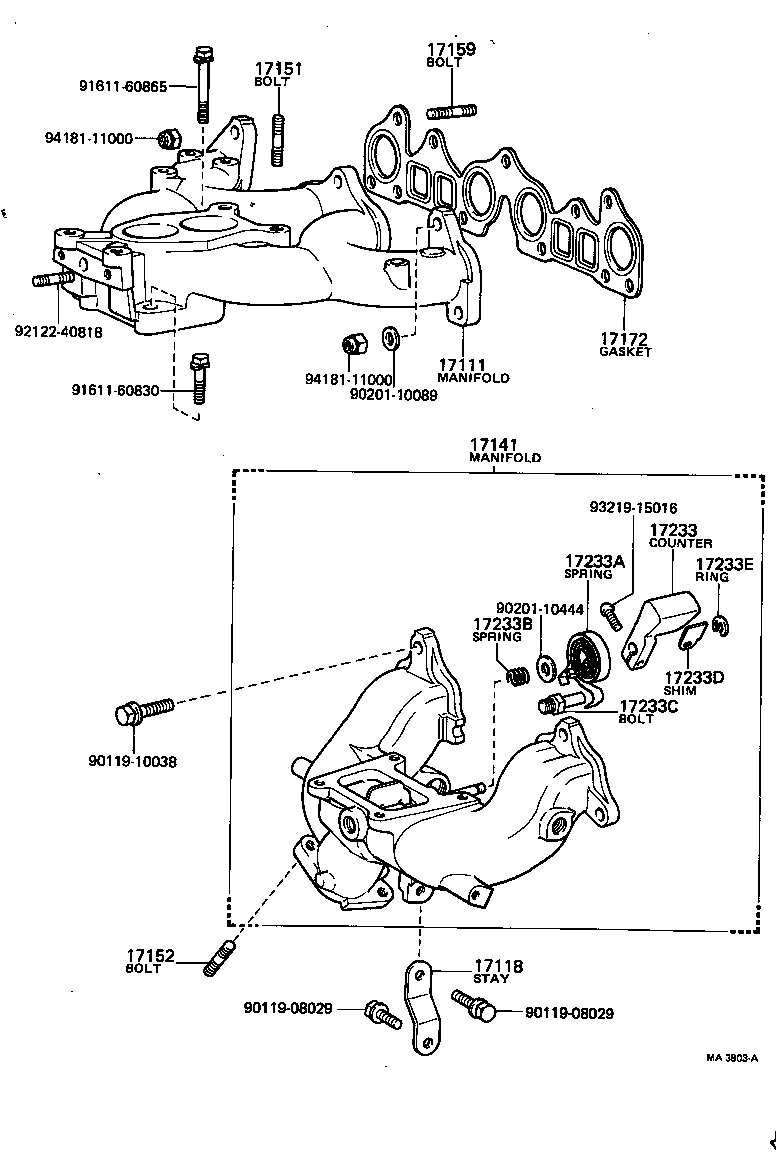

| Linked diagrams | ||||
| 1703 | ||||
