Toyota Sprinter AE114 FRONT DRIVE SHAFT

AE114-BEMNK (1995)

Toyota Sprinter

Production May 1995 - Aug 2000

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

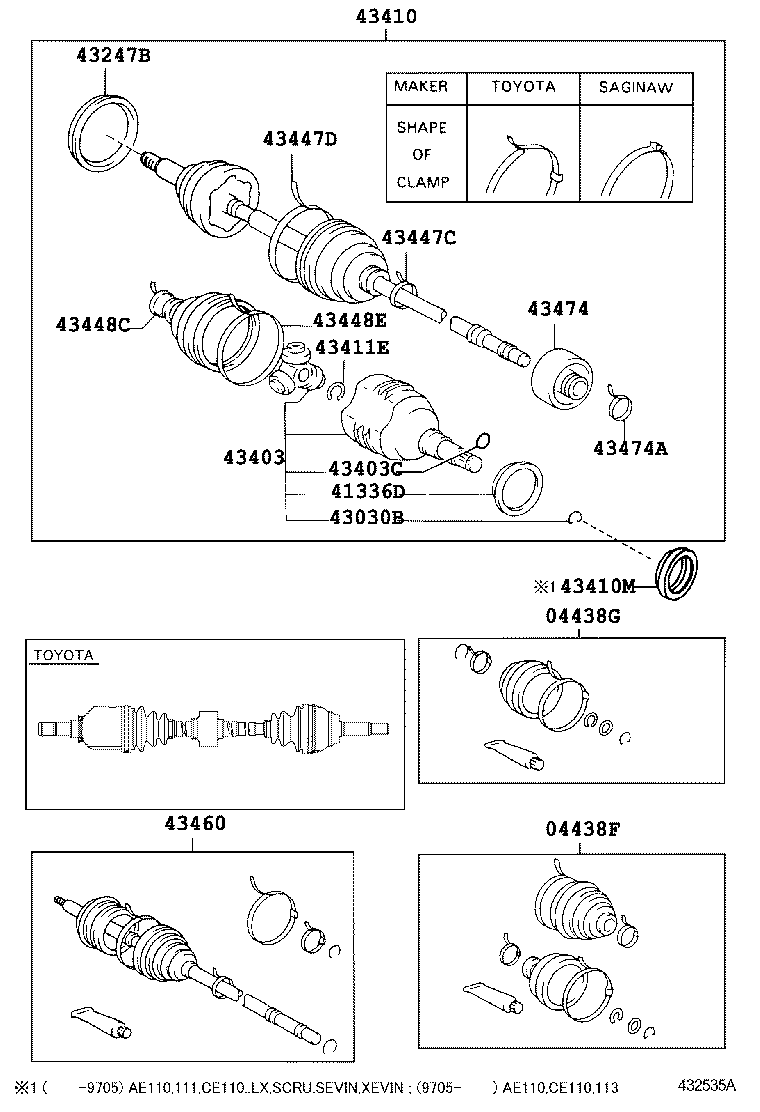

(9505-9705)AE114..5F ; (9505-9705)AE110,111,CE11#..LX,SCRU,SEVIN,XEVIN ; (9705-

Click highlighted areas on diagram

TOYOTA,RH

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-12300	AE114,CE114	05/1995 - 04/1997	1
04438-12300	AE114,CE114	04/1997 - 04/1998	1
04438-12301	AE114,CE116	04/1998 - 01/1999	1
04438-12302	AE114,CE116	01/1999 - 08/2000	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-32230	AE114,CE114	04/1997 - 04/1998	1
04438-32161	AE114,CE114	05/1995 - 11/1995	1
04438-32230	AE114,CE114	11/1995 - 04/1997	1
04438-32231	AE114,CE116	04/1998 - 08/2000	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-20040	AE114,CE114	05/1995 - 04/1997	1
41336-20040	AE114,CE114,116	04/1997 - 08/2000	1
43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)
90521-26004	EE111..3FC,4F;AE114,CE114,116	04/1997 - 04/2000	1
90521-26004	AE114,CE114,EE111	05/1995 - 04/1997	1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-33010	AE114,CE11#,EE111	05/1995 - 05/1996	1
43247-12010	AE111,114,CE11#,EE111 ｱﾘ(ABS)	04/1997 - 08/2000	1
43247-12010	AE114,CE11#,EE111 ｱﾘ(ABS)	05/1995 - 04/1997	1
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-12050	AE114,CE114	05/1995 - 04/1997	1
43403-12050	AE114,CE114,116	04/1997 - 08/2000	1
43403C - RING, O (FOR FRONT DRIVE INBOARD JOINT)
90301-26006	AE114,CE114	05/1995 - 04/1997	1
90301-26006	AE114,CE114,116	04/1997 - 08/2000	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12400	AE114	05/1995 - 05/1996	1
43410-12410	AE114 ｱﾘ(ABS)	05/1995 - 05/1996	1
43410-12410	AE114..SEVIN,XEVIN	05/1996 - 04/1997	1
43410-12410	AE114..SEVIN,XEVIN	04/1997 - 09/1997	1
43410-12411	AE114	09/1997 - 01/1999	1
43410-12412	AE114	01/1999 - 08/2000	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005	AE114,CE11#	05/1995 - 04/1997	1
90520-22005	AE111,114,CE11#..4FC,5F	04/1997 - 08/2000	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-16030	AE114,CE11#	05/1995 - 04/1997	1
42345-20100	AE111,114,CE116..4FC,5F 内径=31.1	01/1999 - 08/2000	1
42345-16030	AE114,CE11# 内径=35.45	04/1997 - 01/1999	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-20120	AE114,CE116 内径=90.6	01/1999 - 08/2000	1
42345-16040	AE114,CE11# 内径=91.9	05/1995 - 04/1997	1
42345-16040	AE114,CE11# 内径=91.9	04/1997 - 01/1999	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078	EE111..LX;AE114,CE11#	01/1996 - 05/1996	1
90949-01078	AE111,114,CE11#,EE111..3FC,4F,4FC,5F	04/1997 - 08/2000	1
90949-01078	AE114,CE11#	05/1995 - 01/1996	1
90949-01078	AE114,CE11#,EE111	05/1996 - 04/1997	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16040	AE114,CE11#	05/1995 - 04/1997	1
42345-16040	AE114,CE11#	04/1997 - 01/1999	1
90949-01076	AE11#,CE11#,EE111..3FC,4FC,5F	01/1999 - 08/2000	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19307	AE114 ｱﾘ(ABS)	05/1995 - 05/1996	1
43470-39087	AE114	05/1995 - 05/1996	1
43460-19307	AE114..SEVIN,XEVIN	04/1997 - 05/1997	1
43460-19307	AE114..SEVIN,XEVIN	05/1996 - 04/1997	1
43470-19307	AE114	09/1997 - 04/1998	1
43470-19306	AE114	05/1997 - 09/1997	1
43470-19308	AE114	04/1998 - 01/1999	1
43470-19309	AE114	01/1999 - 08/2000	1
43474 - DAMPER, DRIVE SHAFT
43474-12030	AE114	05/1995 - 04/1997	1
43474-12030	AE114,CE116	04/1997 - 08/2000	1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
90949-01696	AE114,CE116	04/1997 - 08/2000	1

(9505- )AE11#,CE11#

Click highlighted areas on diagram

TOYOTA,LH

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12302	AE111,114,CE116..4FC,5F	01/1999 - 08/2000	1
04438-12301	AE111,114,CE116..4FC,5F	04/1998 - 01/1999	1
04438-12300	AE111,114,CE114..4FC,5F	04/1997 - 04/1998	1
04438-12300	AE114,CE114	05/1995 - 04/1997	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-32161	AE114	05/1995 - 11/1995	1
04438-32230	AE114	11/1995 - 05/1996	1
04438-32230	AE111,114..4FC,5F;CE114..SEVIN,XEVIN	04/1997 - 04/1998	1
04438-32230	AE114;CE114..SEVIN,XEVIN	05/1996 - 04/1997	1
04438-32231	AE111,114,CE116..4FC,5F	04/1998 - 08/2000	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12040	AE114,CE114	05/1995 - 04/1997	1
41336-12040	AE114,CE114,116	04/1997 - 08/2000	1
43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)
90521-26004	AE114,CE114,EE111	05/1995 - 04/1997	1
90521-26004	EE111..3FC,4F;AE111,114,CE114,116	04/1997 - 04/2000	1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-33010	AE114,CE11#,EE111	05/1995 - 05/1996	1
43247-12010	AE114,CE11#,EE111 ｱﾘ(ABS)	05/1995 - 04/1997	1
43247-12010	AE111,114,CE11#,EE111 ｱﾘ(ABS)	04/1997 - 08/2000	1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-12060	AE114,CE114	05/1995 - 04/1997	1
43403-12060	AE114,CE114,116	04/1997 - 08/2000	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005	AE114,CE11#	05/1995 - 04/1997	1
90520-22005	AE111,114,CE11#..4FC,5F	04/1997 - 08/2000	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32121	AE114	05/1995 - 05/1996	1
43420-32161	AE114 ｱﾘ(ABS)	05/1995 - 05/1996	1
43420-32161	AE114..SEVIN,XEVIN	05/1996 - 04/1997	1
43420-32161	AE114..SEVIN,XEVIN	04/1997 - 09/1997	1
43420-32162	AE114	09/1997 - 01/1999	1
43420-32163	AE114	01/1999 - 08/2000	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-44003	AE114,CE114..5F	05/1995 - 04/1997	1
90311-44003	AE114,CE114,116..5F	04/1997 - 08/2000	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-16030	AE114,CE11#	05/1995 - 04/1997	1
42345-16030	CE110,113..LX;AE114,CE114,116 内径=35.45	04/1997 - 01/1999	1
42345-20100	AE111,114,CE11#..4FC,5F 内径=31.1	01/1999 - 08/2000	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-16040	CE110,113..LX;AE114,CE114,116	04/1997 - 01/1999	1
42345-20120	AE114,CE116 内径=90.6	01/1999 - 08/2000	1
42345-16040	AE114,CE11#	05/1995 - 04/1997	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	EE111..LX;AE114,CE11#	01/1996 - 05/1996	1
90949-01078	AE114,CE11#	05/1995 - 01/1996	1
90949-01078	AE114,CE11#,EE111	05/1996 - 04/1997	1
90949-01078	AE111,114,CE11#,EE111..3FC,4F,4FC,5F	04/1997 - 08/2000	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16040	AE114,CE11#	05/1995 - 04/1997	1
90949-01076	AE11#,CE11#,EE111..3FC,4FC,5F	01/1999 - 08/2000	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19306	AE114 ｱﾘ(ABS)	05/1995 - 05/1996	1
43470-39087	AE114	05/1995 - 05/1996	1
43470-19306	AE114..SEVIN,XEVIN	05/1996 - 04/1997	1
43470-19306	AE114..SEVIN,XEVIN	04/1997 - 09/1997	1
43470-19307	AE114	09/1997 - 04/1998	1
43470-19309	AE114	01/1999 - 08/2000	1
43470-19308	AE114	04/1998 - 01/1999	1

AE114-BEMNK (1995)

(9505-9705)AE114..5F ; (9505-9705)AE110,111,CE11#..LX,SCRU,SEVIN,XEVIN ; (9705-

(9505- )AE11#,CE11#
