AE114-BEMNK (1995)

Toyota Sprinter

Production May 1995 - Aug 2000
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )AE114..5F

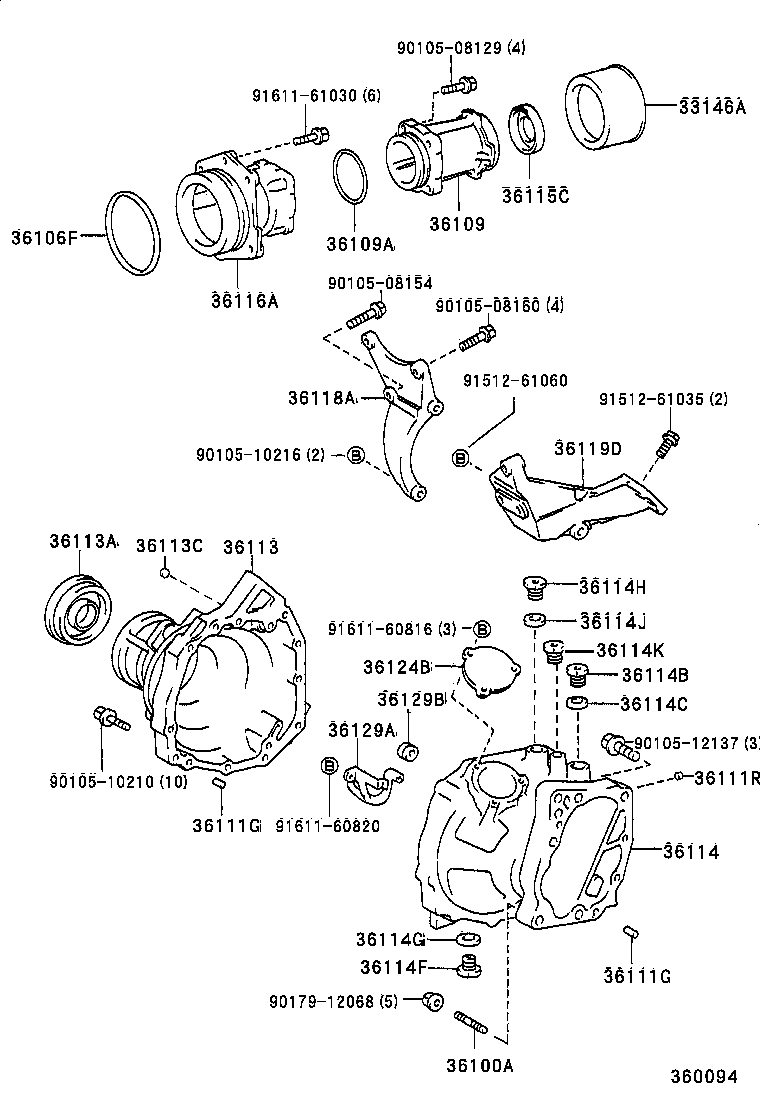

Click highlighted areas on diagram

E55F,E55F5

diagram 33146A 36100A 36106F 36109 36109A 36111G 36111G 36111R 36113 36113A 36113C 36114 36114B 36114C 36114F 36114G 36114H 36114J 36114K 36115C 36116A 36118A 36119D 36124B 36129A 36129B 9010508129 9010508154 9010508160 9010510210 9010510216 9010512137 9017912068 9151261035 9151261060 9161160816 9161160820 9161161030
Part # Description Qty Price
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30020

AE114,CE114

 1
33146-30020

AE114,CE114,116

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

AE114,CE114,116..5F

ﾈｼﾞ部長さ=22 & 22,長さ=69

 2
90116-12028

AE114,CE114..5F

ﾈｼﾞ部長さ=22 & 22,長さ=69

 2
90116-12018

AE114,CE114,116..5F

ﾈｼﾞ部長さ=27 & 27,長さ=75

 3
36106F - RING, O (FOR TRANSFER PINION BEARING CAGE)
90301-99049

AE114,CE114..5F

 1
90301-99049

AE114,CE114,116..5F

 1
36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION
36109-12011

AE114,CE114..5F

 1
36109-12011

AE114,CE114,116..5F

 1
36109A - RING, O (FOR TRANSFER EXTENSION HOUSING)
90301-63005

AE114,CE114

 1
90301-63005

AE114,CE114,116

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12005

AE114,CE114..5F

長さ=24,外径=12

 2
90250-10017

AE114,CE114,116..5F

長さ=20,外径=10

 2
90250-10017

AE114,CE114..5F

長さ=20,外径=10

 2
90250-12005

AE114,CE114,116..5F

長さ=24,外径=12

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12005

AE114,CE114..5F

長さ=24,外径=12

 2
90250-10017

AE114,CE114,116..5F

長さ=20,外径=10

 2
90250-10017

AE114,CE114..5F

長さ=20,外径=10

 2
90250-12005

AE114,CE114,116..5F

長さ=24,外径=12

 2
36111R - PLUG, TIGHT (FOR TRANSFER CASE)
90331-08002

AE114,CE114..5F

 1
90331-08002

AE114,CE114,116..5F

 1
36113 - CASE, TRANSFER, RH
36113-20030

AE114..5F

ｱﾘ(*66)

 1
36113-12010

AE114..5F

 1
36113-20040

AE114..5F

ｱﾘ(*66)

 1
36113-20040

AE114..5F..(SEVIN,XEVIN)

 1
36113-20040

AE114..5F..(SEVIN,XEVIN)

 1
36113A - SEAL, OIL (FOR TRANSFER CASE RH)
90311-47003

AE114,CE114..5F

 1
90311-47003

AE114,CE114,116..5F

 1
36113C - PLUG (FOR TRANSFER CASE)
90331-14004

AE114,CE114..5F

 1
90331-14004

AE114,CE114,116..5F

 1
36114 - CASE, TRANSFER, LH
36114-12050

AE114,CE114..5F

 1
36114-12030

AE114,CE114..5F

 1
36114-12050

AE114,CE114,116..5F

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-22001

AE114,CE114..5F

 1
90341-22001

AE114,CE114,116..5F

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-22002

AE114,CE114,116..5F

 1
90430-22002

AE114,CE114..5F

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18006

AE114,CE114..5F

 1
90341-18006

AE114,CE114,116..5F

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90430-18008

AE114,CE114

 1
90430-18008

AE114,CE114,116

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

AE114,CE114..5F

 1
90341-18023

AE114,CE114,116..5F

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
90430-18008

AE114,CE114,116..5F

 1
90430-18008

AE114,CE114..5F

 1
36114K - PLUG, TRANSFER SHIFT DETENT BALL
90341-12004

AE114,CE114..5F

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-38032

AE114,CE114,116

 1
90311-38032

AE114,CE114

 1
36116A - CAGE, TRANSFER PINION BEARING
36116-12010

AE114,CE114..5F

 1
36116-12010

AE114,CE114,116..5F

 1
36118A - PLATE, TRANSFER STIFFENER, RH
36118-12011

AE114..5F

 1
36118-12011

AE114..5F

 1
36119D - PLATE, TRANSFER STIFFENER, CENTER
36119-20020

AE114..5F

 1
36119-20020

AE114..5F

 1
36124B - COVER, TRANSFER INSPECTION HOLE
36124-12010

AE114,CE114..5F

 1
36124-12010

AE114,CE114,116..5F

 1
36129A - TUBE, TRANSFER OIL
36129-20010

AE114,CE114..5F

 1
36129-20010

AE114,CE114,116..5F

 1
36129B - CUSHION (FOR TRANSFER OIL TUBE)
90540-06027

AE114,CE114..5F

 1
90540-06027

AE114,CE114,116..5F

 1
Common parts
90105-08129
90105-08154
90105-08160
90105-10210
90105-10216
90105-12137
90179-12068
91512-61035
91512-61060
91611-60816
91611-60820
91611-61030
