AE114-BEMEK (1995)
Toyota Sprinter

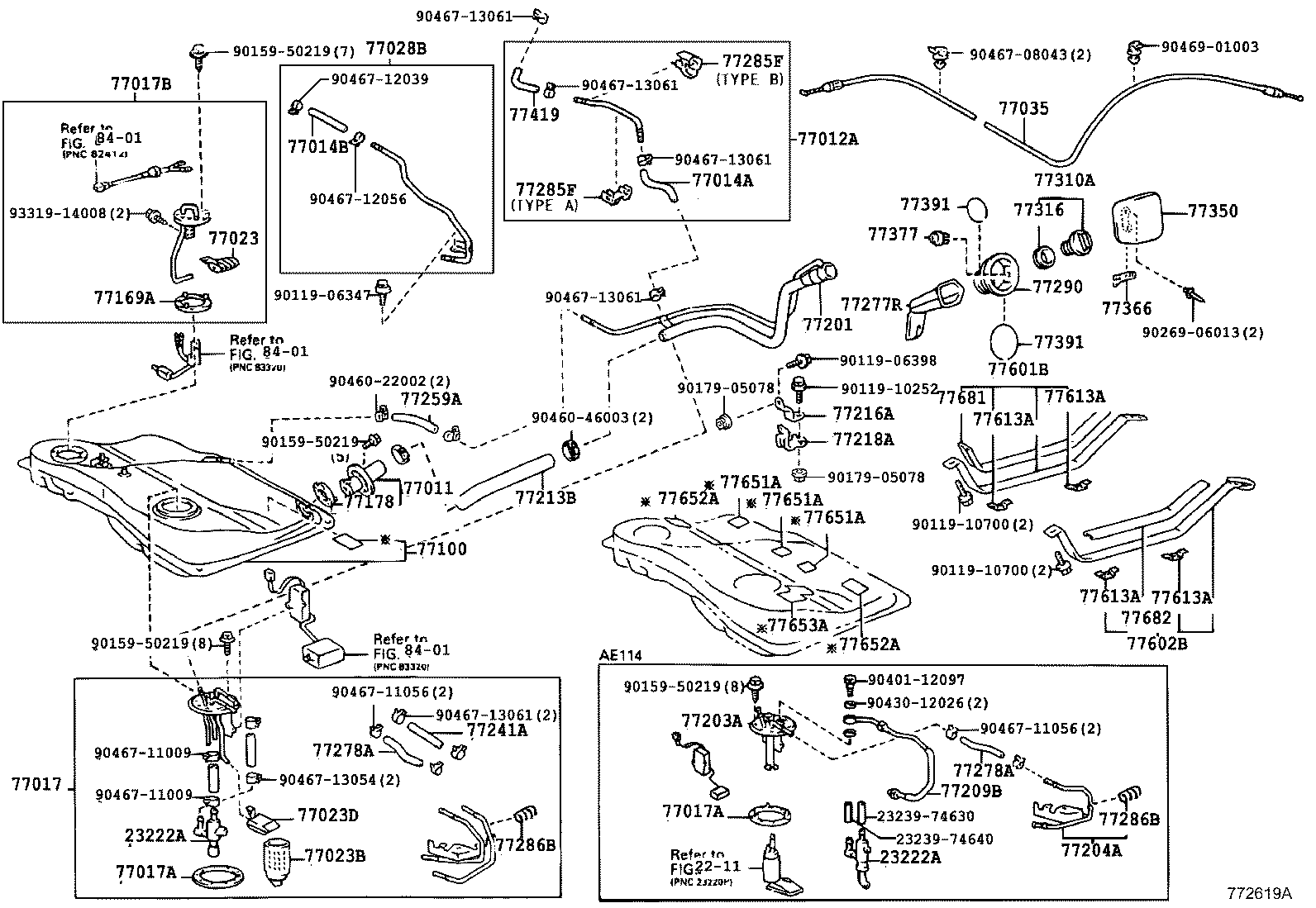

ILLUST NO. 1 OF 2(9505-9605)AE114,CE114
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23222A - TUBE, FUEL RETURN JET | ||||
| 23222-11010 |
4AFE..AE114 |
1 | ||
| 23222-11010 |
4AFE..AE114 |
1 | ||
| 23222A - TUBE, FUEL RETURN JET | ||||
| 23222-11010 |
4AFE..AE114 |
1 | ||
| 23222-11010 |
4AFE..AE114 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
AE114,CE114 |
1 | ||
| 77011-12130 |
AE114,CE114,116 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12100 |
AE114 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77012-12150 |
AE114 |
1 | ||
| 77012-12150 |
AE114 |
1 | ||
| 77012-12090 |
AE114 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77279-12100 |
AE114,CE114,116 |
1 | ||
| 77279-12100 |
AE114,CE114 |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
AE114,CE114 *H,L=100 |
1 | ||
| 95333-06010 |
AE114,CE114,116 *H,L=100 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12030 |
AE114,CE114 |
1 | ||
| 77169-12030 |
AE114,CE114,116 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12030 |
AE114,CE114 |
1 | ||
| 77169-12030 |
AE114,CE114,116 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-12500 |
AE114,CE114 |
1 | ||
| 77017-12500 |
AE114,CE114,116 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32030 |
AE114,CE114 |
1 | ||
| 77023-32030 |
AE114,CE114 |
1 | ||
| 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 | ||||
| 77028-12070 |
AE114,CE114,116 |
1 | ||
| 77028-12070 |
AE114,CE114 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12220 |
AE11#,CE11#,EE111 |
1 | ||
| 77035-12220 |
AE11#,CE11#,EE111 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12936 |
AE114,CE114,116 |
1 | ||
| 77001-12936 |
AE114,CE114 |
1 | ||
| 77001-12933 |
AE114,CE114 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
AE114,CE114 |
1 | ||
| 77169-14010 |
AE114,CE114,116 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE11#,CE11#,EE111 |
1 | ||
| 77178-20030 |
AE11#,CE11#,EE111 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12540 |
AE114,CE114 |
1 | ||
| 77201-12540 |
AE114,CE114,116 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-12260 |
AE114..SEVIN |
1 | ||
| 77203-12260 |
AE114 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-12030 |
AE114 |
1 | ||
| 77204-12030 |
AE114 |
1 | ||
| 23204-16550 |
AE114 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-12100 |
AE114 |
1 | ||
| 77209-12120 |
AE114 |
1 | ||
| 77209-12120 |
AE114 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12150 |
AE114,CE114 |
1 | ||
| 77213-12150 |
AE114,CE114,116 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12080 |
AE114,CE114 |
1 | ||
| 77216-12080 |
AE114,CE114,116 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12040 |
AE114,CE114 |
1 | ||
| 77218-12040 |
AE114,CE114,116 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 95311-13022 |
AE114,CE114,116 長さ=220 |
1 | ||
| 95311-13022 |
AE114,CE114 長さ=220 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12160 |
AE11#,CE11#,EE111 |
1 | ||
| 77277-12160 |
AE11#,CE11#,EE111 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 23239-16550 |
AE114 |
1 | ||
| 23239-16550 |
AE114 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 23239-16550 |
AE114 |
1 | ||
| 23239-16550 |
AE114 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-12050 |
AE114,CE114,116 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77286-12050 |
AE114,CE114 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285-12060 |
AE114,CE114,116 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285-12060 |
AE114,CE114 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-12050 |
AE114,CE114,116 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77286-12050 |
AE114,CE114 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285-12060 |
AE114,CE114,116 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285-12060 |
AE114,CE114 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-12040 |
AE11#,CE11#,EE111 |
2 | ||
| 77285-12040 |
AE11#,CE11#,EE111 |
2 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-12040 |
AE11#,CE11#,EE111 |
2 | ||
| 77285-12040 |
AE11#,CE11#,EE111 |
2 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12110 |
AE11#,CE11#,EE111 |
1 | ||
| 77291-12110 |
AE11#,CE11#,EE111 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE11#,EE111 |
1 | ||
| 77310-16011 |
AE11#,EE111 |
1 | ||
| 77310-48010 |
AE11#,EE111 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE11#,CE11#,EE111 |
1 | ||
| 77316-16010 |
AE11#,CE11#,EE111 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12360 |
AE11#,CE11#,EE111 |
1 | ||
| 77350-12360 |
AE11#,CE11#,EE111 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12080 |
AE11#,CE11#,EE111 |
1 | ||
| 77360-12080 |
AE11#,CE11#,EE111 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 77377-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AE11#,CE11#,EE111 内側 |
1 | ||
| 77391-12020 |
AE11#,CE11#,EE111 内側 |
1 | ||
| 77391-12010 |
AE11#,CE11#,EE111 外側 |
1 | ||
| 77391-12010 |
AE11#,CE11#,EE111 外側 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AE11#,CE11#,EE111 内側 |
1 | ||
| 77391-12020 |
AE11#,CE11#,EE111 内側 |
1 | ||
| 77391-12010 |
AE11#,CE11#,EE111 外側 |
1 | ||
| 77391-12010 |
AE11#,CE11#,EE111 外側 |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77419-12010 |
AE114 |
1 | ||
| 77419-12010 |
AE114 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12190 |
AE114,CE114,116 |
1 | ||
| 77601-12190 |
AE114,CE114 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12140 |
AE114,CE114 |
1 | ||
| 77602-12140 |
AE114,CE114,116 |
1 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE114,CE114,116 |
4 | ||
| 77613-16030 |
AE114,CE114 |
4 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE114,CE114,116 |
4 | ||
| 77613-16030 |
AE114,CE114 |
4 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE114,CE114,116 |
4 | ||
| 77613-16030 |
AE114,CE114 |
4 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE114,CE114,116 |
4 | ||
| 77613-16030 |
AE114,CE114 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE114,CE114 |
2 | ||
| 77652-12100 |
AE114,CE114,116 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE114,CE114 |
2 | ||
| 77652-12100 |
AE114,CE114,116 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12100 |
AE114,CE114,116 |
1 | ||
| 77653-12100 |
AE114,CE114 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
AE11#,CE11#,EE111 |
1 | ||
| 77681-32060 |
AE11#,CE11#,EE111 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AE11#,CE11#,EE111 |
1 | ||
| 77681-32060 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 23239-74630 | ||||
| 23239-74640 | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90159-50219 | ||||
| 90179-05078 | ||||
| 90269-06013 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-08043 | ||||
| 90467-11009 | ||||
| 90467-11056 | ||||
| 90467-12039 | ||||
| 90467-12056 | ||||
| 90467-13054 | ||||
| 90467-13061 | ||||
| 90469-01003 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

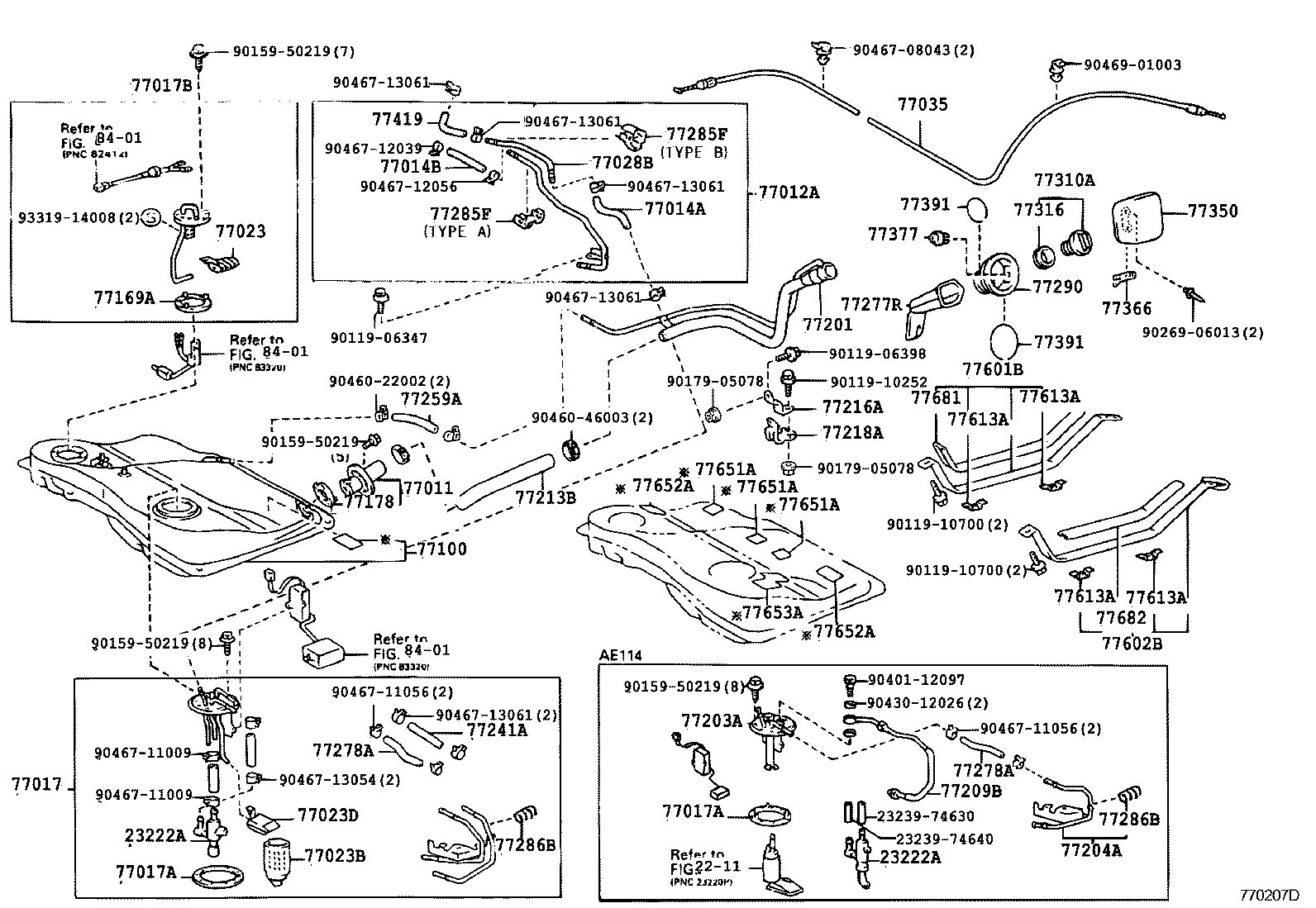

(9605- )AE114,CE114,116
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23222A - TUBE, FUEL RETURN JET | ||||
| 23222-11010 |
4AFE..AE114 |
1 | ||
| 23222-11010 |
4AFE..AE114 |
1 | ||
| 23222A - TUBE, FUEL RETURN JET | ||||
| 23222-11010 |
4AFE..AE114 |
1 | ||
| 23222-11010 |
4AFE..AE114 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
AE114,CE114 |
1 | ||
| 77011-12130 |
AE114,CE114,116 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12100 |
AE114 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77012-12150 |
AE114 |
1 | ||
| 77012-12150 |
AE114 |
1 | ||
| 77012-12090 |
AE114 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77279-12100 |
AE114,CE114,116 |
1 | ||
| 77279-12100 |
AE114,CE114 |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
AE114,CE114 *H,L=100 |
1 | ||
| 95333-06010 |
AE114,CE114,116 *H,L=100 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12030 |
AE114,CE114 |
1 | ||
| 77169-12030 |
AE114,CE114,116 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12030 |
AE114,CE114 |
1 | ||
| 77169-12030 |
AE114,CE114,116 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-12500 |
AE114,CE114 |
1 | ||
| 77017-12500 |
AE114,CE114,116 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32030 |
AE114,CE114 |
1 | ||
| 77023-32030 |
AE114,CE114 |
1 | ||
| 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 | ||||
| 77028-12070 |
AE114,CE114,116 |
1 | ||
| 77028-12070 |
AE114,CE114 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12220 |
AE11#,CE11#,EE111 |
1 | ||
| 77035-12220 |
AE11#,CE11#,EE111 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12936 |
AE114,CE114,116 |
1 | ||
| 77001-12936 |
AE114,CE114 |
1 | ||
| 77001-12933 |
AE114,CE114 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
AE114,CE114 |
1 | ||
| 77169-14010 |
AE114,CE114,116 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE11#,CE11#,EE111 |
1 | ||
| 77178-20030 |
AE11#,CE11#,EE111 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12540 |
AE114,CE114 |
1 | ||
| 77201-12540 |
AE114,CE114,116 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-12260 |
AE114..SEVIN |
1 | ||
| 77203-12260 |
AE114 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-12030 |
AE114 |
1 | ||
| 77204-12030 |
AE114 |
1 | ||
| 23204-16550 |
AE114 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-12100 |
AE114 |
1 | ||
| 77209-12120 |
AE114 |
1 | ||
| 77209-12120 |
AE114 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12150 |
AE114,CE114 |
1 | ||
| 77213-12150 |
AE114,CE114,116 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12080 |
AE114,CE114 |
1 | ||
| 77216-12080 |
AE114,CE114,116 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12040 |
AE114,CE114 |
1 | ||
| 77218-12040 |
AE114,CE114,116 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 95311-13022 |
AE114,CE114,116 長さ=220 |
1 | ||
| 95311-13022 |
AE114,CE114 長さ=220 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12160 |
AE11#,CE11#,EE111 |
1 | ||
| 77277-12160 |
AE11#,CE11#,EE111 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 23239-16550 |
AE114 |
1 | ||
| 23239-16550 |
AE114 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 23239-16550 |
AE114 |
1 | ||
| 23239-16550 |
AE114 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-12050 |
AE114,CE114,116 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77286-12050 |
AE114,CE114 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285-12060 |
AE114,CE114,116 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285-12060 |
AE114,CE114 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-12050 |
AE114,CE114,116 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77286-12050 |
AE114,CE114 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285-12060 |
AE114,CE114,116 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77285-12060 |
AE114,CE114 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-12040 |
AE11#,CE11#,EE111 |
2 | ||
| 77285-12040 |
AE11#,CE11#,EE111 |
2 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-12040 |
AE11#,CE11#,EE111 |
2 | ||
| 77285-12040 |
AE11#,CE11#,EE111 |
2 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12110 |
AE11#,CE11#,EE111 |
1 | ||
| 77291-12110 |
AE11#,CE11#,EE111 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE11#,EE111 |
1 | ||
| 77310-16011 |
AE11#,EE111 |
1 | ||
| 77310-48010 |
AE11#,EE111 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE11#,CE11#,EE111 |
1 | ||
| 77316-16010 |
AE11#,CE11#,EE111 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12360 |
AE11#,CE11#,EE111 |
1 | ||
| 77350-12360 |
AE11#,CE11#,EE111 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12080 |
AE11#,CE11#,EE111 |
1 | ||
| 77360-12080 |
AE11#,CE11#,EE111 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 77377-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AE11#,CE11#,EE111 内側 |
1 | ||
| 77391-12020 |
AE11#,CE11#,EE111 内側 |
1 | ||
| 77391-12010 |
AE11#,CE11#,EE111 外側 |
1 | ||
| 77391-12010 |
AE11#,CE11#,EE111 外側 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AE11#,CE11#,EE111 内側 |
1 | ||
| 77391-12020 |
AE11#,CE11#,EE111 内側 |
1 | ||
| 77391-12010 |
AE11#,CE11#,EE111 外側 |
1 | ||
| 77391-12010 |
AE11#,CE11#,EE111 外側 |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77419-12010 |
AE114 |
1 | ||
| 77419-12010 |
AE114 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12190 |
AE114,CE114,116 |
1 | ||
| 77601-12190 |
AE114,CE114 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12140 |
AE114,CE114 |
1 | ||
| 77602-12140 |
AE114,CE114,116 |
1 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE114,CE114,116 |
4 | ||
| 77613-16030 |
AE114,CE114 |
4 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE114,CE114,116 |
4 | ||
| 77613-16030 |
AE114,CE114 |
4 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE114,CE114,116 |
4 | ||
| 77613-16030 |
AE114,CE114 |
4 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE114,CE114,116 |
4 | ||
| 77613-16030 |
AE114,CE114 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77651-20090 |
AE11#,CE11#,EE111 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE114,CE114 |
2 | ||
| 77652-12100 |
AE114,CE114,116 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE114,CE114 |
2 | ||
| 77652-12100 |
AE114,CE114,116 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12100 |
AE114,CE114,116 |
1 | ||
| 77653-12100 |
AE114,CE114 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
AE11#,CE11#,EE111 |
1 | ||
| 77681-32060 |
AE11#,CE11#,EE111 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AE11#,CE11#,EE111 |
1 | ||
| 77681-32060 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 23239-74630 | ||||
| 23239-74640 | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90159-50219 | ||||
| 90179-05078 | ||||
| 90269-06013 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-08043 | ||||
| 90467-11009 | ||||
| 90467-11056 | ||||
| 90467-12039 | ||||
| 90467-12056 | ||||
| 90467-13054 | ||||
| 90467-13061 | ||||
| 90469-01003 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

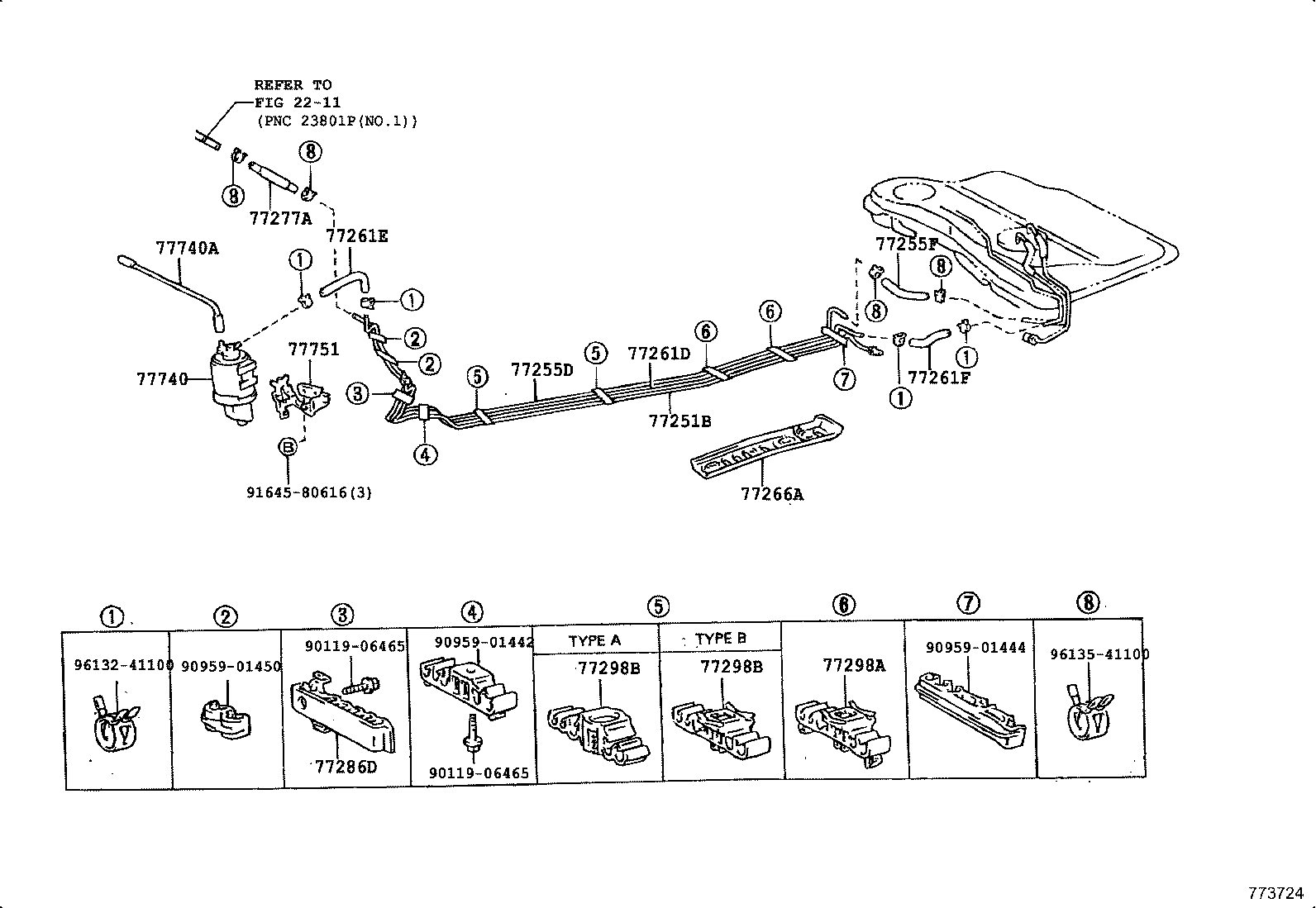

ILLUST NO. 2 OF 2(9505- )AE114
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12600 |
AE114 |
1 | ||
| 77251-12600 |
AE114 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12540 |
AE114 |
1 | ||
| 77255-12540 |
AE114 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
AE11#,EE111 *H,L=130 |
1 | ||
| 95333-06020 |
AE11#,EE111 *H,L=130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12390 |
AE114 |
1 | ||
| 77261-12390 |
AE114 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE11#,CE11#,EE111 *H,L=160 |
1 | ||
| 95333-06020 |
AE11#,CE11#,EE111 *H,L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12180 |
AE114,CE114 |
1 | ||
| 77259-12180 |
AE114,CE114,116 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77267-12130 |
AE11#,CE11#,EE111 |
1 | ||
| 77267-12130 |
AE11#,CE11#,EE111 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12139 |
AE11# 長さ=500 |
1 | ||
| 90447-12139 |
AE110,114 長さ=500 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 77286-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12030 |
AE11#,CE11#,EE111 |
2 | ||
| 77298-12030 |
AE11#,CE11#,EE111 |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12040 |
AE11#,CE11#,EE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77298-12050 |
AE11#,CE11#,EE111 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77298-12050 |
AE11#,CE11#,EE111 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77298-12040 |
AE11#,CE11#,EE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12040 |
AE11#,CE11#,EE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77298-12050 |
AE11#,CE11#,EE111 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77298-12050 |
AE11#,CE11#,EE111 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77298-12040 |
AE11#,CE11#,EE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-10140 |
AE11#,EE111 |
1 | ||
| 77740-12610 |
AE111,114 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95413-49939 |
AE11# 長さ=390 |
1 | ||
| 95413-49939 |
AE110,114 長さ=390 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12080 |
AE11#,EE111 |
1 | ||
| 77750-12080 |
AE11#,EE111 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90959-01442 | ||||
| 90959-01444 | ||||
| 90959-01450 | ||||
| 91645-80616 | ||||
| 96132-41100 | ||||
| 96135-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
