AE110-BEPNK (1995)
Toyota Sprinter
(9505- )GT,SCRU,SEVIN,XEVIN
ﾒ-ｶ ｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN |
3 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 87138-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12430 |
AE110,114,CE11#,EE111..LX,XEVIN ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-12391 |
EE111..(3FC,4F)..XEVIN;AE11#,CE110,114..GT,XEVIN ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-12430 |
AE110,114,CE11#,EE111..LX,XEVIN ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12190 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN UPPER |
1 | ||
| 88502-12270 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(C),下側 |
1 | ||
| 88502-12200 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN LOWER |
1 | ||
| 88502-12270 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(X),下側 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12190 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN UPPER |
1 | ||
| 88502-12270 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(C),下側 |
1 | ||
| 88502-12200 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN LOWER |
1 | ||
| 88502-12270 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(X),下側 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-12010 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(C) |
1 | ||
| 88508-12010 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(X) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-1A620 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(C) |
1 | ||
| 88510-1A300 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-12420 |
AE110,114,CE11#,EE111..LX,XEVIN ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510-1A620 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(X) |
1 | ||
| 88501-12420 |
AE110,114,CE110,114,EE111..LX,XEVIN ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AE11#,CE11#,EE111 |
1 | ||
| 88515-20100 |
AE11#,CE11#,EE111 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12120 |
AE11#,CE11#,EE111 |
1 | ||
| 88539-12160 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12470 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN NO.1 |
1 | ||
| 88578-20470 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN NO.2 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12470 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN NO.1 |
1 | ||
| 88578-20470 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN NO.2 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12280 |
AE11#,CE11#,EE111 |
1 | ||
| 88625-12280 |
AE11#,CE11#,EE111 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AE11#,CE11#,EE111 |
1 | ||
| 88626-28010 |
AE11#,CE11#,EE111 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-1E040 |
AE11# |
1 | ||
| 88650-1E040 |
AE110,114 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-1E040 |
AE11# |
1 | ||
| 88650-1E040 |
AE110,114 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12330 |
AE11#,CE11#,EE111 |
1 | ||
| 88710-12330 |
AE11#,CE11#,EE111 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-12340 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(X) |
1 | ||
| 88899-12340 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(C) |
1 | ||
| Common parts | ||||
| 88569-20160 | ||||
| 88718-1A680 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90159-60125 | ||||
| 90179-06054 | ||||
| 90480-01434 | ||||
| 90480-26022 | ||||

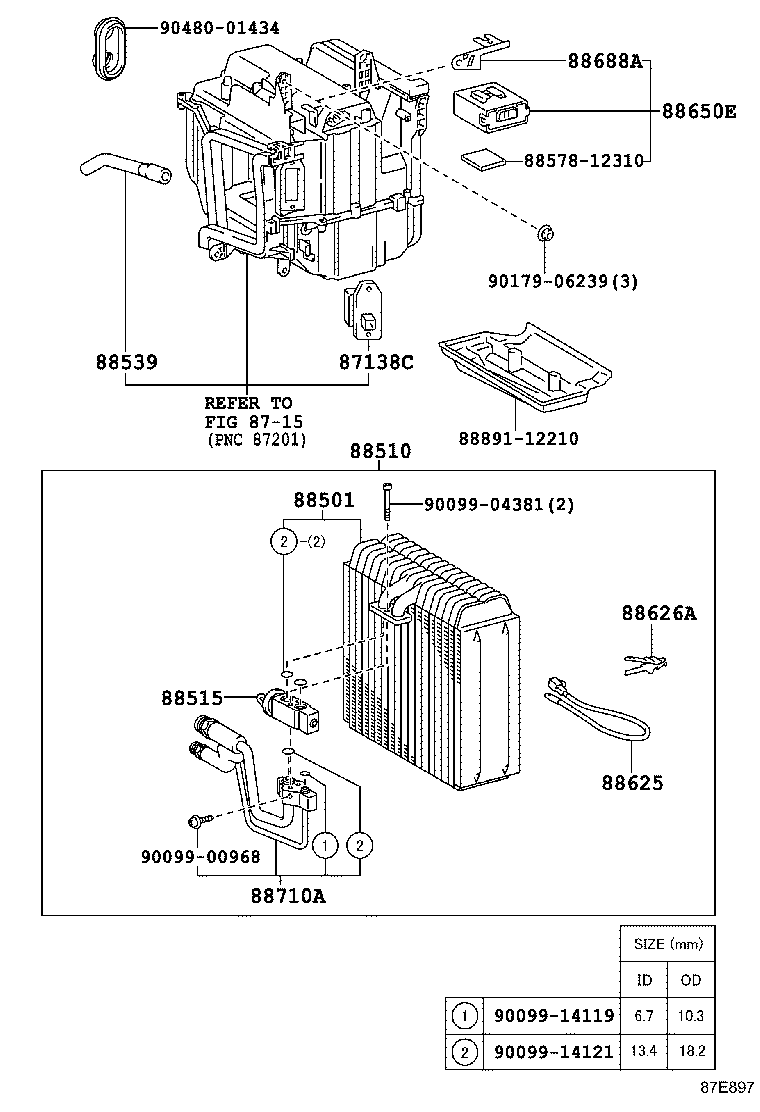

(9505- )LX,XEVIN
ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 87138-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12430 |
AE110,114,CE11#,EE111..LX,XEVIN ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-12391 |
EE111..(3FC,4F)..XEVIN;AE11#,CE110,114..GT,XEVIN ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-12430 |
AE110,114,CE11#,EE111..LX,XEVIN ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-1A620 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(C) |
1 | ||
| 88510-1A300 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-12420 |
AE110,114,CE11#,EE111..LX,XEVIN ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510-1A620 |
AE110,114,CE11#,EE111..XEVIN ﾘﾐﾃﾂﾄﾞ *(X) |
1 | ||
| 88501-12420 |
AE110,114,CE110,114,EE111..LX,XEVIN ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AE11#,CE11#,EE111 |
1 | ||
| 88515-20100 |
AE11#,CE11#,EE111 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12120 |
AE11#,CE11#,EE111 |
1 | ||
| 88539-12160 |
AE11#,CE11#,EE111..GT,SEVIN,XEVIN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12280 |
AE11#,CE11#,EE111 |
1 | ||
| 88625-12280 |
AE11#,CE11#,EE111 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AE11#,CE11#,EE111 |
1 | ||
| 88626-28010 |
AE11#,CE11#,EE111 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-1E040 |
AE11# |
1 | ||
| 88650-1E040 |
AE110,114 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-1A090 |
AE110,114,CE11#,EE111..LX,XEVIN |
1 | ||
| 88688-1A090 |
AE110,114,CE11#,EE111..LX,XEVIN |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12330 |
AE11#,CE11#,EE111 |
1 | ||
| 88710-12330 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 88578-12310 | ||||
| 88891-12210 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90179-06239 | ||||
| 90480-01434 | ||||
| Linked diagrams | ||||
| 8715 | ||||
