Toyota Sprinter AE110 MOUNTING - JDM Part Detective

AE110-BEPEK (1995)

Toyota Sprinter

Production May 1995 - Aug 2000

Engine 5AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

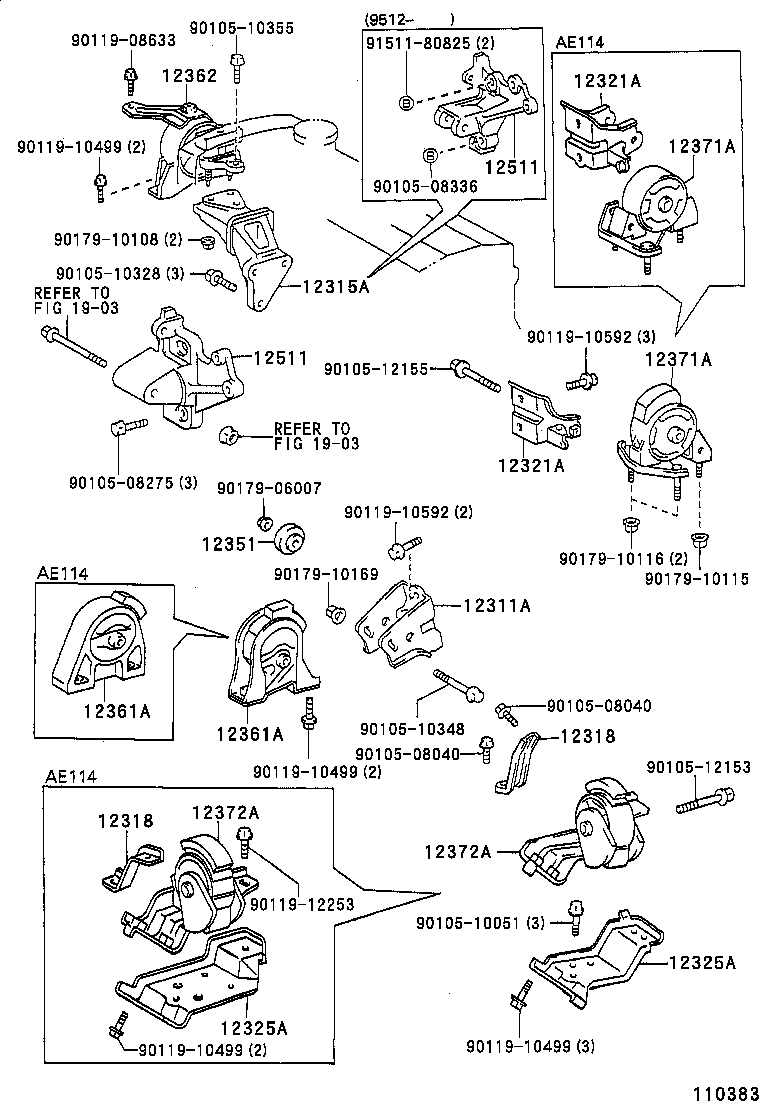

(9505-9704)4AFE,5AFE..4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15130	4AFE,5AFE..AE110,111	05/1995 - 04/1997	1
12311-15130	5AFE..AE110	04/1997 - 08/2000	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15081	4AFE,5AFE..AE110,111	05/1995 - 04/1997	1
12315-15081	5AFE..AE110	04/1997 - 08/2000	1
12318 - STAY, ENGINE MOUNTING, LH
12318-15050	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12318 - STAY, ENGINE MOUNTING, LH
12318-15050	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15140	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12321-15140	5AFE..AE110..4FC	04/1997 - 08/2000	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15140	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12321-15140	5AFE..AE110..4FC	04/1997 - 08/2000	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16130	5AFE..AE110..4FC	05/1995 - 04/1997	1
12325-15110	5AFE..AE110..4FC	04/1997 - 08/2000	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16130	5AFE..AE110..4FC	05/1995 - 04/1997	1
12325-15110	5AFE..AE110..4FC	04/1997 - 08/2000	1
12351 - DAMPER, ENGINE MOUNTING
12351-15060	4AFE,5AFE..AE110,111	05/1995 - 04/1997	1
12351-15060	4AGE,5AFE..AE110,111	04/1997 - 08/2000	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15180	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12361-15180	4AGE,5AFE..AE110,111..4FC	04/1997 - 01/1998	1
12361-15181	4AGE,5AFE..AE110,111..4FC	01/1998 - 08/2000	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15180	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12361-15180	4AGE,5AFE..AE110,111..4FC	04/1997 - 01/1998	1
12361-15181	4AGE,5AFE..AE110,111..4FC	01/1998 - 08/2000	1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-15040	5AFE..AE110	04/1997 - 08/2000	1
12305-15040	4AFE,5AFE..AE110,111	05/1995 - 04/1997	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64210	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12371-64210	4AGE,5AFE..AE110,111..4FC	04/1997 - 08/2000	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64210	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12371-64210	4AGE,5AFE..AE110,111..4FC	04/1997 - 08/2000	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15181	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12372-15220	4AGE,5AFE..AE110,111..4FC	04/1997 - 08/2000	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15181	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12372-15220	4AGE,5AFE..AE110,111..4FC	04/1997 - 08/2000	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15060	4AFE,5AFE..AE110,114	04/1997 - 08/2000	1
12511-15050	4AFE,5AFE..AE11#	05/1995 - 12/1995	1
12511-15060	4AFE,5AFE..AE11#	12/1995 - 04/1997	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15060	4AFE,5AFE..AE110,114	04/1997 - 08/2000	1
12511-15050	4AFE,5AFE..AE11#	05/1995 - 12/1995	1
12511-15060	4AFE,5AFE..AE11#	12/1995 - 04/1997	1
Common parts
90105-08040
90105-08275
90105-08336
90105-10051
90105-10328
90105-10348
90105-10355
90105-12153
90105-12155
90119-08633
90119-10499
90119-10592
90119-12253
90179-06007
90179-10108
90179-10115
90179-10116
90179-10169
91511-80825
Linked diagrams
1903

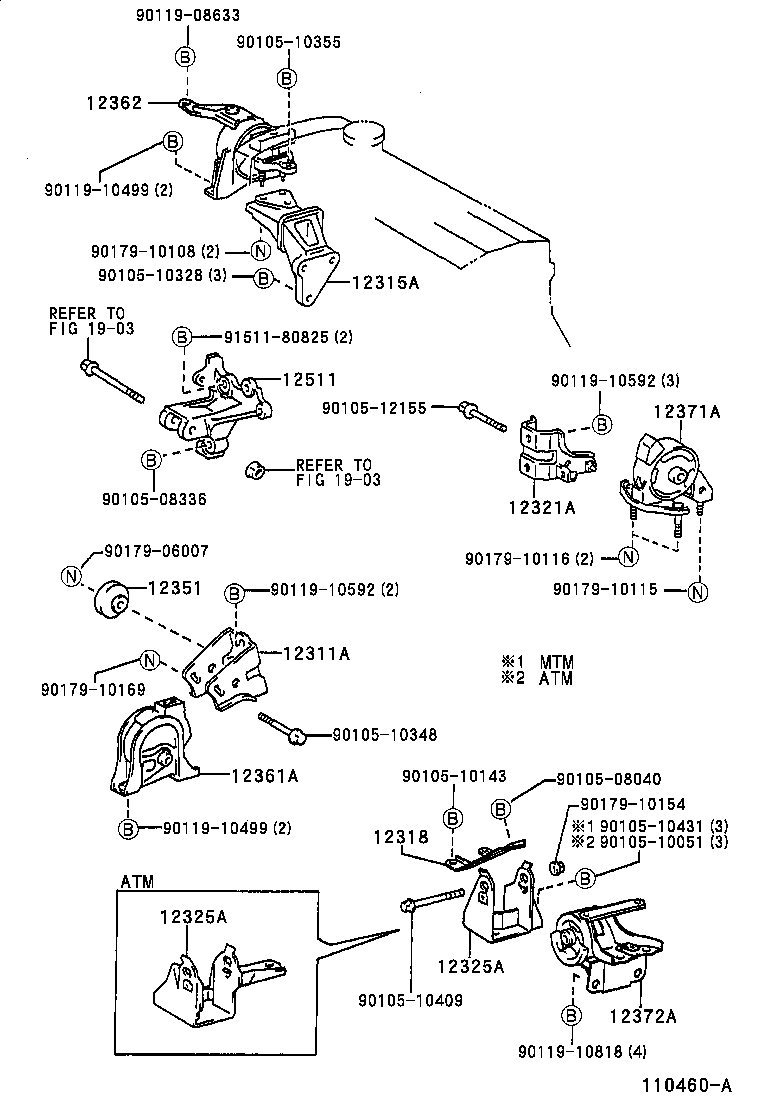

(9704- )5AFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15130	4AFE,5AFE..AE110,111	05/1995 - 04/1997	1
12311-15130	5AFE..AE110	04/1997 - 08/2000	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15081	4AFE,5AFE..AE110,111	05/1995 - 04/1997	1
12315-15081	5AFE..AE110	04/1997 - 08/2000	1
12318 - STAY, ENGINE MOUNTING, LH
12318-15050	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15140	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12321-15140	5AFE..AE110..4FC	04/1997 - 08/2000	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16130	5AFE..AE110..4FC	05/1995 - 04/1997	1
12325-15110	5AFE..AE110..4FC	04/1997 - 08/2000	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16130	5AFE..AE110..4FC	05/1995 - 04/1997	1
12325-15110	5AFE..AE110..4FC	04/1997 - 08/2000	1
12351 - DAMPER, ENGINE MOUNTING
12351-15060	4AFE,5AFE..AE110,111	05/1995 - 04/1997	1
12351-15060	4AGE,5AFE..AE110,111	04/1997 - 08/2000	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15180	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12361-15180	4AGE,5AFE..AE110,111..4FC	04/1997 - 01/1998	1
12361-15181	4AGE,5AFE..AE110,111..4FC	01/1998 - 08/2000	1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-15040	5AFE..AE110	04/1997 - 08/2000	1
12305-15040	4AFE,5AFE..AE110,111	05/1995 - 04/1997	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64210	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12371-64210	4AGE,5AFE..AE110,111..4FC	04/1997 - 08/2000	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15181	4AFE,5AFE..AE110,111..4FC	05/1995 - 04/1997	1
12372-15220	4AGE,5AFE..AE110,111..4FC	04/1997 - 08/2000	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15060	4AFE,5AFE..AE110,114	04/1997 - 08/2000	1
12511-15050	4AFE,5AFE..AE11#	05/1995 - 12/1995	1
12511-15060	4AFE,5AFE..AE11#	12/1995 - 04/1997	1
Common parts
90105-08040
90105-08336
90105-10051
90105-10143
90105-10328
90105-10348
90105-10355
90105-10409
90105-10431
90105-12155
90119-08633
90119-10499
90119-10592
90119-10818
90179-06007
90179-10108
90179-10115
90179-10116
90179-10154
90179-10169
91511-80825
Linked diagrams
1903
