AE110-BEMEK (1995)

Toyota Sprinter

Production May 1995 - Aug 2000
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )4AFE,5AFE

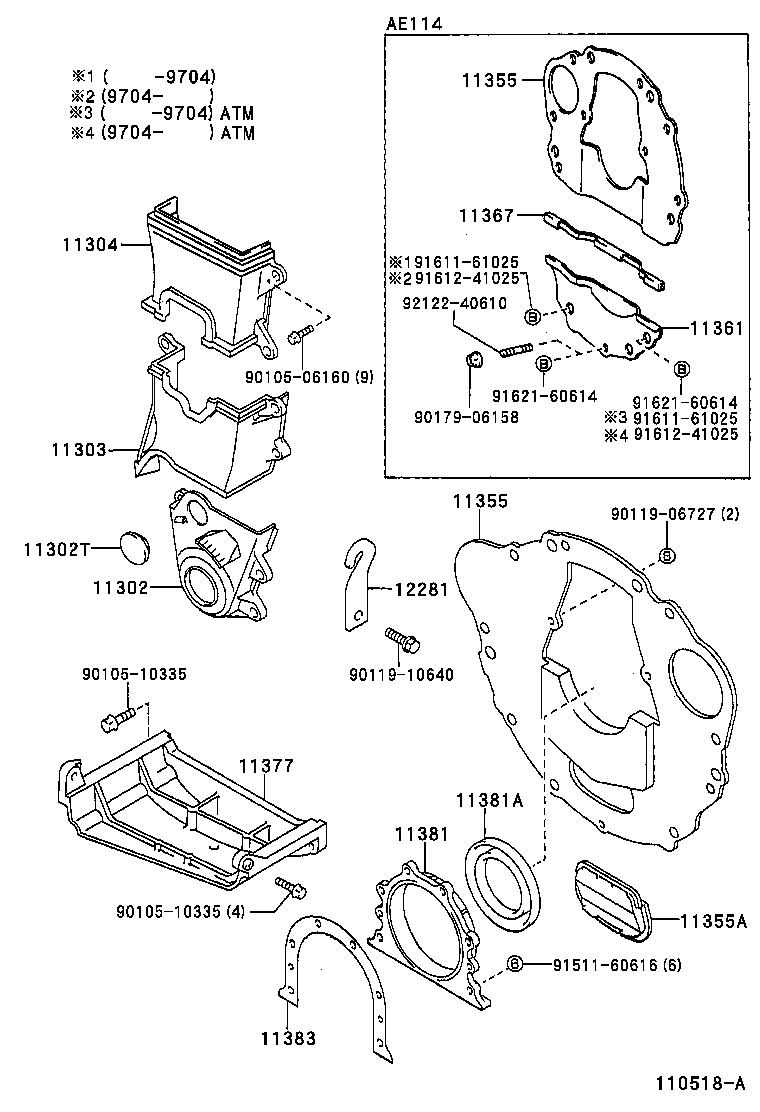

Click highlighted areas on diagram

diagram 11302 11302T 11303 11304 11355 11355 11355A 11361 11367 11377 11381 11381A 11383 12281 9010506160 9010510335 9010510335 9011906727 9011910640 9017906158 9151160616 9161161025 9161161025 9161241025 9161241025 9162160614 9162160614 9212240610
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-15050

4AFE,5AFE..AE11#

 1
11302-15050

4AFE,5AFE..AE110,114

 1
11302T - PLUG, HOLE
90950-01783

4AFE,5AFE..AE11#

 1
90950-01783

4AFE,5AFE..AE110,114

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-15050

4AFE,5AFE..AE110,114

 1
11303-15050

4AFE,5AFE..AE11#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11304-15030

4AFE,5AFE..AE11#

 1
11304-15030

4AFE,5AFE..AE110,114

 1
11355 - PLATE, REAR END
11355-15070

4AFE,5AFE..AE110,111..5F

 1
11355-15070

4AGE,5AFE..AE110,111..MTM

 1
11355 - PLATE, REAR END
11355-15070

4AFE,5AFE..AE110,111..5F

 1
11355-15070

4AGE,5AFE..AE110,111..MTM

 1
11377 - STIFFENER, REAR END PLATE
11377-15012

4AFE,5AFE..AE110,111

 1
11377-15012

4AGE,5AFE..AE110,111

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AFE,5AFE..AE11#

 1
11381-15010

4A#,5AFE..AE11#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70007

4AFE,5AFE..AE11#

 1
90311-70007

4A#,5AFE..AE11#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-16010

4AFE,5AFE..AE11#

 1
11383-16010

4A#,5AFE..AE11#

 1
12281 - HANGER, ENGINE, NO.1
12281-15050

4AFE,5AFE..AE11#

 1
12281-15050

4AFE,5AFE..AE110,114

 1
Common parts
90105-06160
90105-10335
90119-06727
90119-10640
90179-06158
91511-60616
91611-61025
91612-41025
91621-60614
92122-40610
