AE104-BEPEK (1991)

Toyota Sprinter

Production Sep 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109-9505)4AFE..AE104

Click highlighted areas on diagram

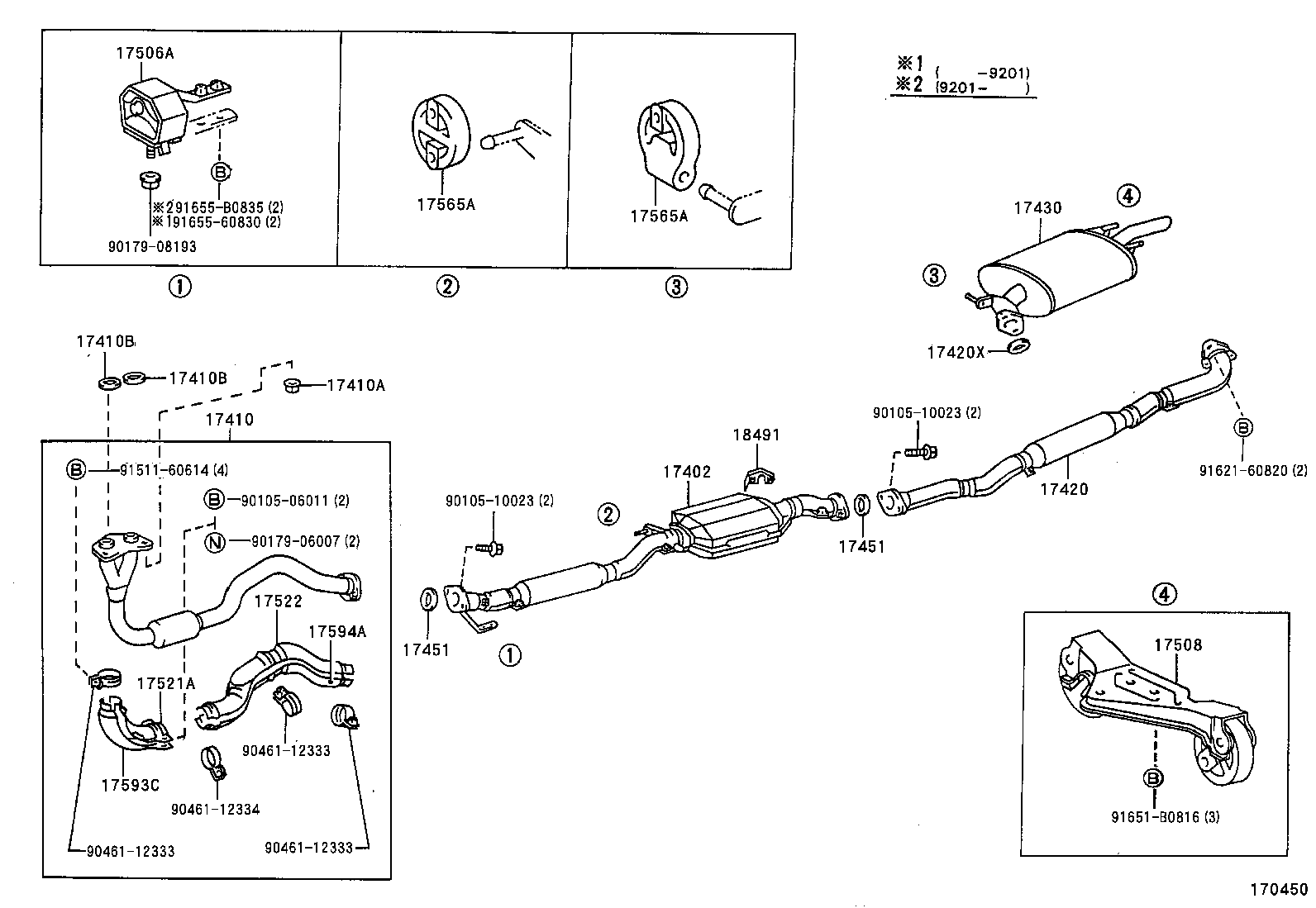

diagram 17402 17410 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17506A 17508 17521A 17522 17565A 17565A 17593C 17594A 18491 9010506011 9010510023 9010510023 9017906007 9017908193 9046112333 9046112333 9046112333 9046112334 9151160614 9162160820 91651B0816 9165560830 91655B0835
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-16170

4AFE..AE104

 1
17402-16200

4AFE..AE104

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-16820

4AFE..AE104

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4A#..AE101,104,109

 3
17410B - GASKET, EXHAUST PIPE
90917-06064

4AFE..AE101,104,109

 2
17410B - GASKET, EXHAUST PIPE
90917-06064

4AFE..AE101,104,109

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-16560

4AFE..AE104

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039

4AFE,2C,3CE..AE101,104,109,CE102,104,106,107,108,109

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1A080

4AFE,2C..AE104,CE104

 1
17451 - GASKET, EXHAUST PIPE
90917-06039

4AFE..AE104

 2
17451 - GASKET, EXHAUST PIPE
90917-06039

4AFE..AE104

 2
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-16080

4AFE..AE104

 1
17506-16130

4AFE..AE104

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-16050

4AFE,2C..AE104,CE104

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-16190

4AFE..AE104

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

4AFE,2C..AE104,CE104

ｾﾝﾀ ﾊﾟｲﾌﾟ

 1
17565-16230

4AFE,2C..AE104,CE104

TAIL PIPE FRONT

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

4AFE,2C..AE104,CE104

ｾﾝﾀ ﾊﾟｲﾌﾟ

 1
17565-16230

4AFE,2C..AE104,CE104

TAIL PIPE FRONT

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-16240

4AFE..AE104

 1
Common parts
90105-06011
90105-10023
90179-06007
90179-08193
90461-12333
90461-12334
91511-60614
91621-60820
91651-B0816
91655-60830
91655-B0835
