S231E-ZPRF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

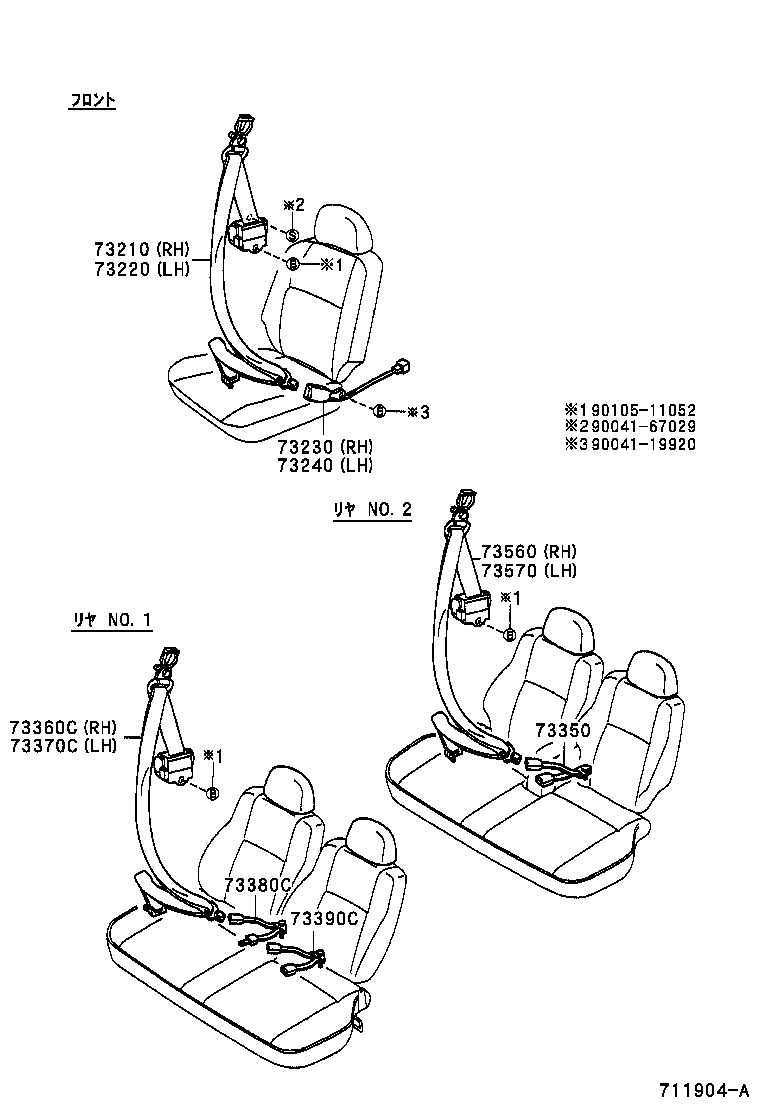

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-9752603 |
S221,231 GRAY |
1 | ||
| 73210-9751003 |
S221,231 GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-9752403 |
S221,231 GRAY |
1 | ||
| 73220-9751003 |
S221,231 GRAY |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-9750503 |
S221,231 GRAY |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-9750403 |
S221,231 GRAY |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73380-9750503 |
S221,231..HIR GRAY |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-9750503 |
S221,231 GRAY |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-9750503 |
S221,231 GRAY |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73470-9750103 |
S221,231..HIR GRAY |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73480-9750103 |
S221,231..HIR GRAY |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73360-9750603 |
S221,231 GRAY |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73370-9750603 |
S221,231 GRAY |
1 | ||
| Common parts | ||||
| 90041-19920 | ||||
| 90041-67029 | ||||
| 90105-11052 | ||||
