S231E-ZPRF (2000)
Toyota Sparky

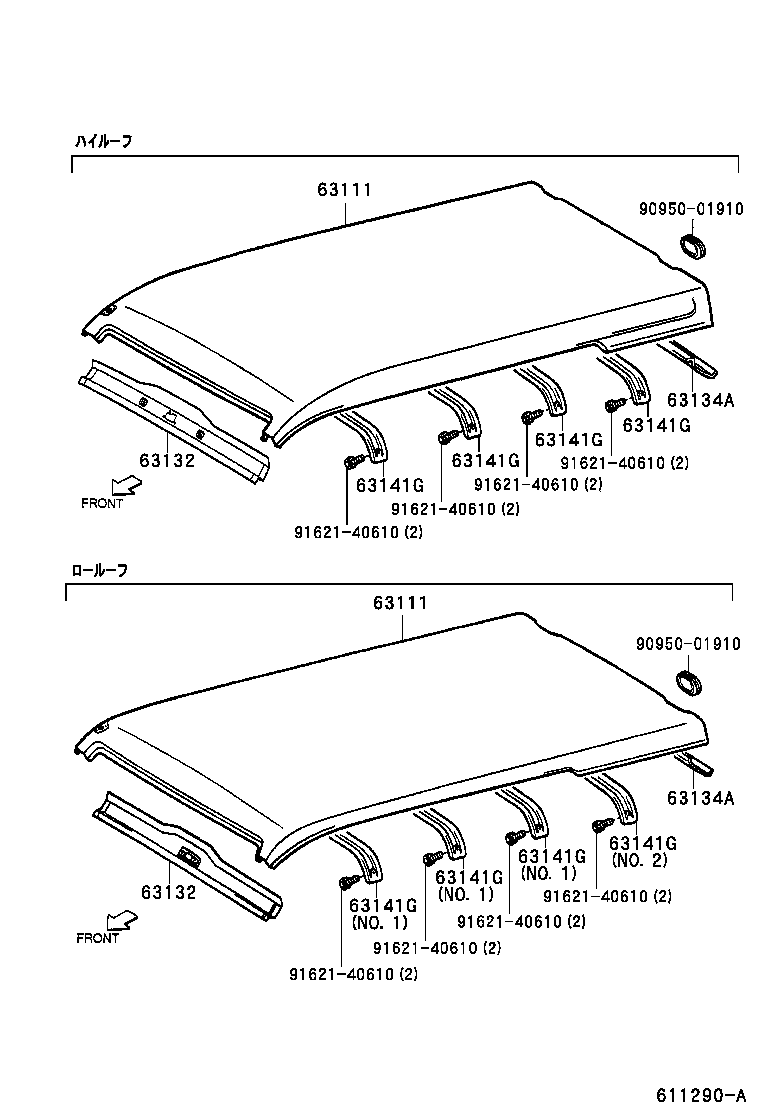

ILLUST NO. 1 OF 2(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-97520 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63111-97509 |
S221,231 ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63111-97507 |
S221,231 |
1 | ||
| 63111-97518 |
S221,231..HIR |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-97520 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63111-97509 |
S221,231 ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63111-97507 |
S221,231 |
1 | ||
| 63111-97518 |
S221,231..HIR |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-97502 |
S221,231 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-97502 |
S221,231 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-97504 |
S221,231..HIR |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-97504 |
S221,231..HIR |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-97504 |
S221,231..HIR |
4 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-97504 |
S221,231..HIR |
4 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-97504 |
S221,231..HIR |
4 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-97504 |
S221,231..HIR |
4 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-97504 |
S221,231..HIR |
4 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-97504 |
S221,231..HIR |
4 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-97504 |
S221,231..HIR |
4 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-97504 |
S221,231..HIR |
4 | ||
| Common parts | ||||
| 90950-01910 | ||||
| 91621-40610 | ||||

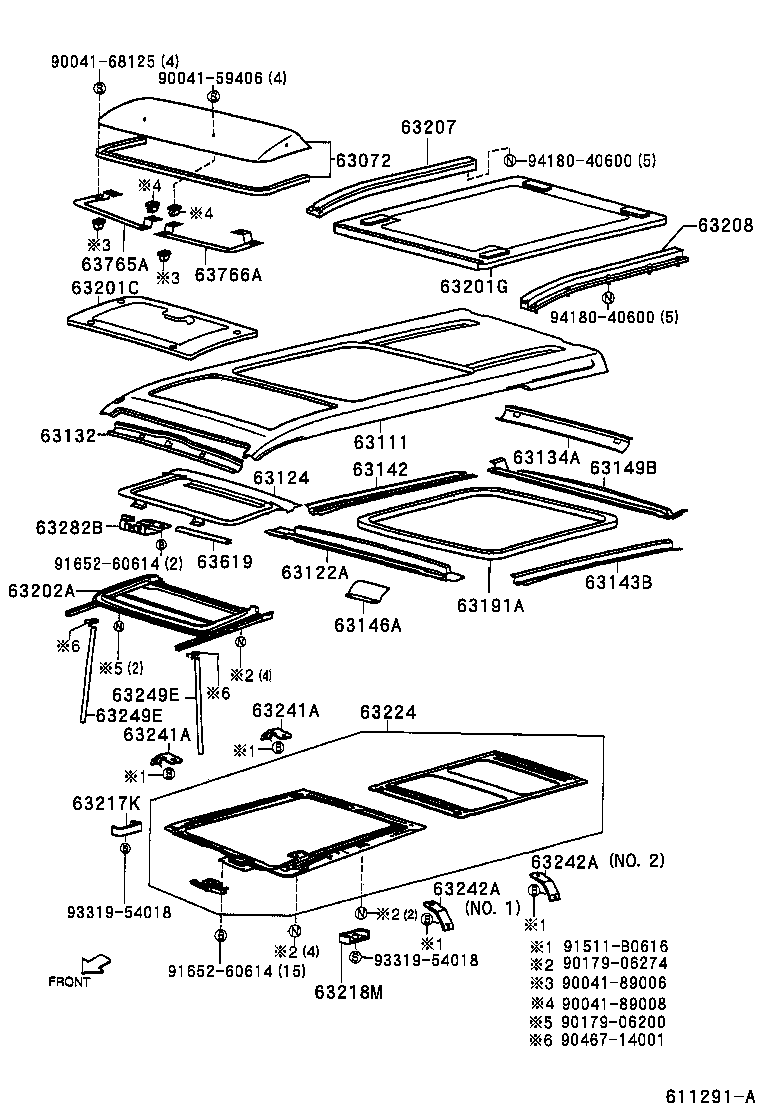

ILLUST NO. 2 OF 2(0009- )
ｱﾘ(ｻﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63072 - DEFLECTOR SET, ROOF AIR | ||||
| 63072-97502 |
S221,231..HIR |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-97520 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63111-97509 |
S221,231 ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63111-97507 |
S221,231 |
1 | ||
| 63111-97518 |
S221,231..HIR |
1 | ||
| 63122A - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63122-97502 |
S221,231..HIR |
1 | ||
| 63124 - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63124-97501 |
S221,231..HIR |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-97502 |
S221,231 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-97504 |
S221,231..HIR |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 61348-97502 |
S221,231..HIR |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 61349-97502 |
S221,231..HIR |
1 | ||
| 63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1 | ||||
| 63146-97501 |
S221,231..HIR |
1 | ||
| 63149B - REINFORCEMENT, ROOF PANEL, NO.1 REAR | ||||
| 63149-97502 |
S221,231..HIR |
1 | ||
| 63191A - WEATHERSTRIP, ROOF WINDOW, NO.1 | ||||
| 63191-97502 |
S221,231..HIR |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63210-97501 |
S221,231..HIR *TEM,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-97502 |
S221,231..HIR *TEM,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63202A - HOUSING SUB-ASSY, SLIDING ROOF, FRONT | ||||
| 63200-97501 |
S221,231..HIR |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-97502 |
S221,231..HIR |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-97502 |
S221,231..HIR |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-97502 |
S221,231..HIR |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-97502 |
S221,231..HIR |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63270-97502 |
S221,231..HIR |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 61281-97501 |
S221,231..HIR |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 61281-97501 |
S221,231..HIR |
2 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-97502 |
S221,231..HIR NO.1 |
1 | ||
| 63244-97502 |
S221,231..HIR NO.2 |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-97502 |
S221,231..HIR NO.1 |
1 | ||
| 63244-97502 |
S221,231..HIR NO.2 |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-97501 |
S221,231..HIR |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-97501 |
S221,231..HIR |
2 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-97501 |
S221,231..HIR |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-97501 |
S221,231..HIR |
1 | ||
| 63765A - BRACKET, ROOF AIR DEFLECTOR, RH | ||||
| 63765-97502 |
S221,231..HIR |
1 | ||
| 63766A - BRACKET, ROOF AIR DEFLECTOR, LH | ||||
| 63766-97502 |
S221,231..HIR |
1 | ||
| Common parts | ||||
| 90041-59406 | ||||
| 90041-68125 | ||||
| 90041-89006 | ||||
| 90041-89008 | ||||
| 90179-06200 | ||||
| 90179-06274 | ||||
| 90467-14001 | ||||
| 91511-B0616 | ||||
| 91652-60614 | ||||
| 93319-54018 | ||||
| 94180-40600 | ||||
