S231E-ZPRF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

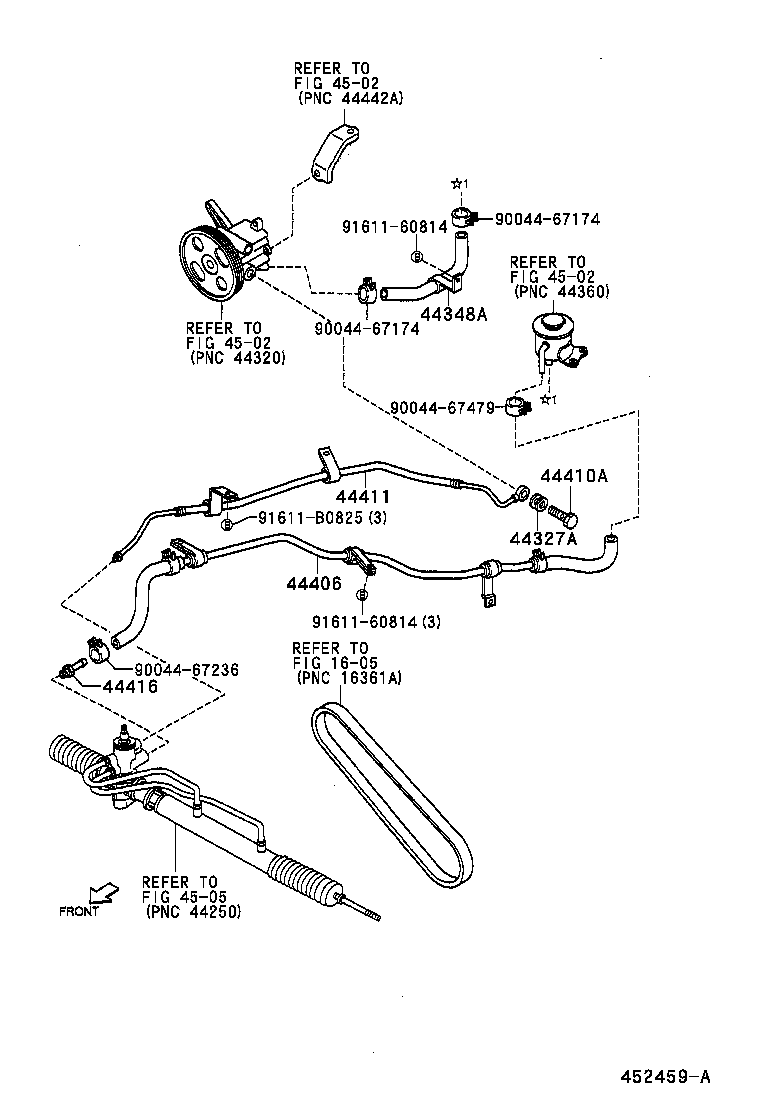

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 90044-30289 |
S221,231 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-97505 |
S221,231 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44450-97505 |
S221,231 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90044-01088 |
S221,231 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-97503 |
S221,231 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 90044-67174 | ||||
| 90044-67236 | ||||
| 90044-67479 | ||||
| 91611-60814 | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||
