S231E-ZPRF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

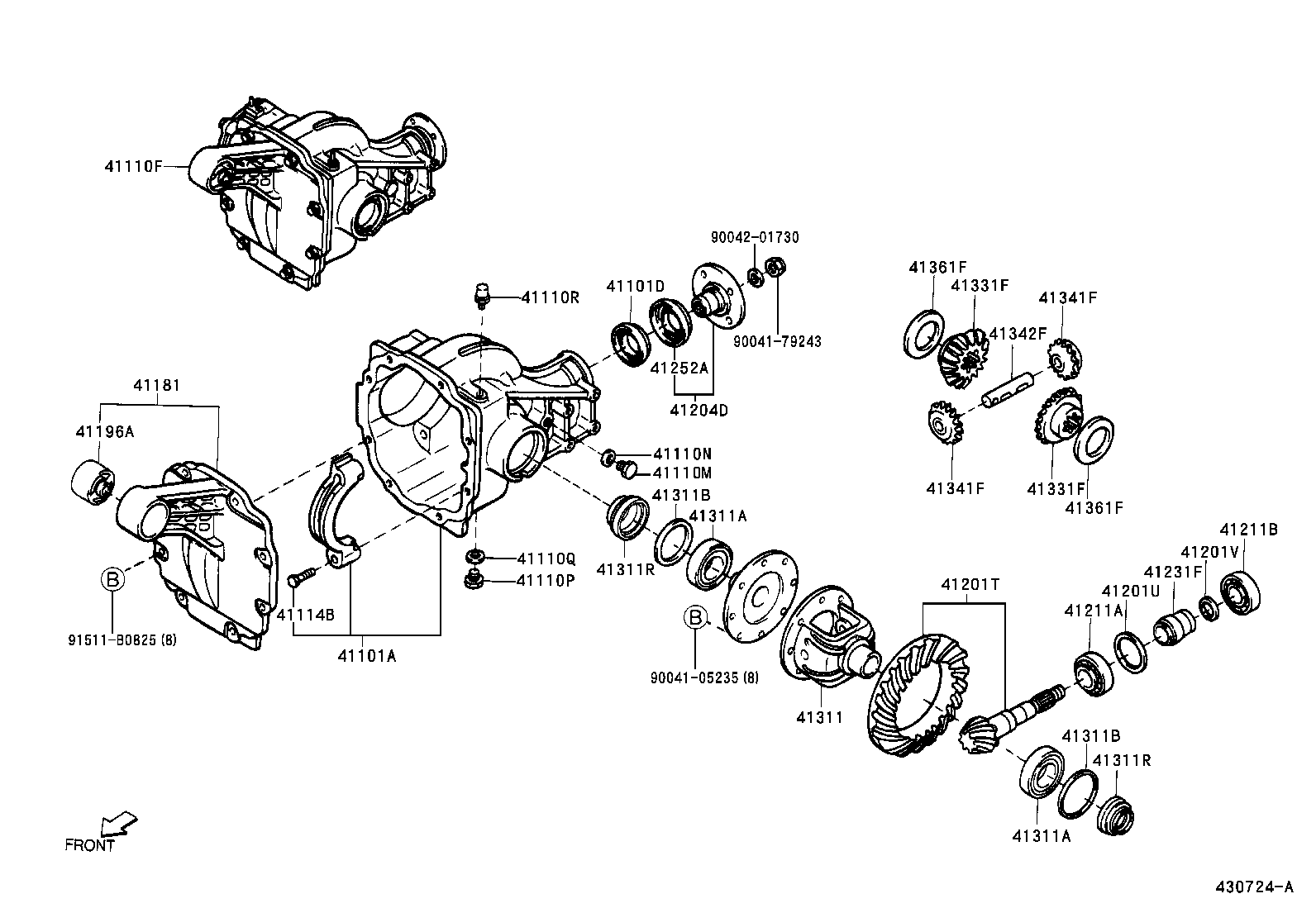

ILLUST NO. 1 OF 2(0009- )S231

Click highlighted areas on diagram

diagram 41101A 41101D 41110F 41110M 41110N 41110P 41110Q 41110R 41114B 41181 41196A 41201T 41201U 41201V 41204D 41211A 41211B 41231F 41252A 41311 41311A 41311A 41311B 41311B 41311R 41311R 41331F 41331F 41341F 41341F 41342F 41361F 41361F 9004105235 9004179243 9004201730 91511B0825
Part # Description Qty Price
41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101-97503

S231

 1
41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
90043-11311

S231

 1
41110F - CARRIER ASSY, DIFFERENTIAL, FRONT
41120-97505

S231

 1
41110M - PLUG, FRONT DIFFERENTIAL FILLER
90043-41035

S231

 1
41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG
90044-30178

S231

 1
41110P - PLUG, FRONT DIFFERENTIAL DRAIN
90043-41035

S231

 1
41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG
90044-30178

S231

 1
41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL)
90049-15026

S231

 1
41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP
41114-87506

S231

 4
41181 - COVER, FRONT DIFFERENTIAL CARRIER
43109-97502

S231

 1
41196A - DAMPER, FRONT DIFFERENTIAL DYNAMIC
41196-97502

S231

 1
41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT
41201-97503

S231

 1
41201U - SHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
90045-64320

S231

厚さ=0.25

 33
90045-64321

S231

厚さ=0.5

 33
90045-64319

S231

厚さ=0.20

 33
90045-64318

S231

厚さ=0.15

 33
41201V - SHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
90045-64006

S231

厚さ=0.40

 33
90045-64007

S231

厚さ=0.50

 33
90045-64004

S231

厚さ=0.25

 33
90045-64005

S231

厚さ=0.30

 33
41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204-87514

S231

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90043-66036

S231

NSK

 1
90043-66037

S231

KOYO

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90043-66012

S231

 1
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-87510

S231

 1
41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41252-87504

S231

 1
41311 - CASE, FRONT DIFFERENTIAL
41311-97501

S231

 1
41311A - BEARING (FOR FRONT DIFFERENTIAL CASE)
90043-63228

S231

 2
41311A - BEARING (FOR FRONT DIFFERENTIAL CASE)
90043-63228

S231

 2
41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
90045-64500

S231

厚さ=0.15

 33
90045-64502

S231

厚さ=0.25

 33
90045-64503

S231

厚さ=0.50

 33
90045-64501

S231

厚さ=0.20

 33
41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
90045-64500

S231

厚さ=0.15

 33
90045-64502

S231

厚さ=0.25

 33
90045-64503

S231

厚さ=0.50

 33
90045-64501

S231

厚さ=0.20

 33
41311R - SEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
90043-11319

S231

 2
41311R - SEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
90043-11319

S231

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-87701

S231

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-87701

S231

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-87101

S231

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-87101

S231

 2
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-87509

S231

 1
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-87501

S231

厚さ=0.8

 2
41361-87507

S231

厚さ=1.0

 2
41361-87506

S231

厚さ=0.9

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-87501

S231

厚さ=0.8

 2
41361-87507

S231

厚さ=1.0

 2
41361-87506

S231

厚さ=0.9

 2
Common parts
90041-05235
90041-79243
90042-01730
91511-B0825

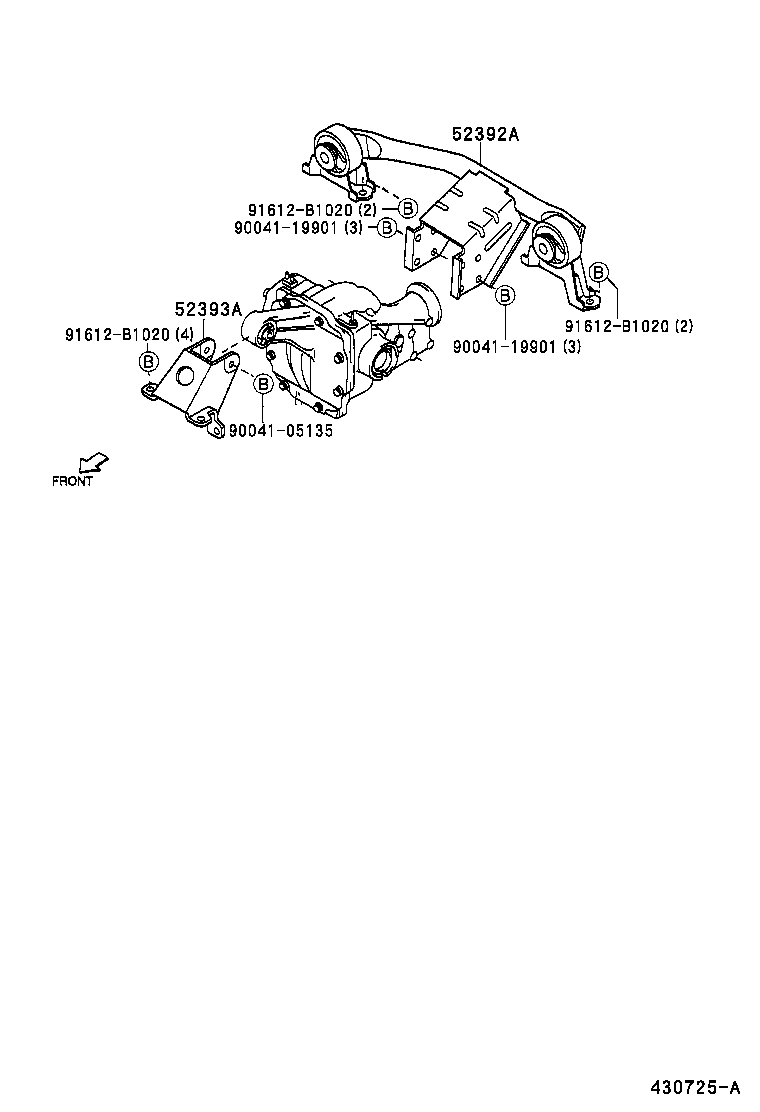

ILLUST NO. 2 OF 2(0009- )S231

Click highlighted areas on diagram

diagram 52392A 52393A 9004105135 9004119901 9004119901 91612B1020 91612B1020 91612B1020
Part # Description Qty Price
52392A - SUPPORT, FRONT DIFFERENTIAL, NO.1
52390-97501

S231

 1
52393A - SUPPORT, FRONT DIFFERENTIAL, NO.2
51626-97501

S231

 1
Common parts
90041-05135
90041-19901
91612-B1020
