S231E-ZPRF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

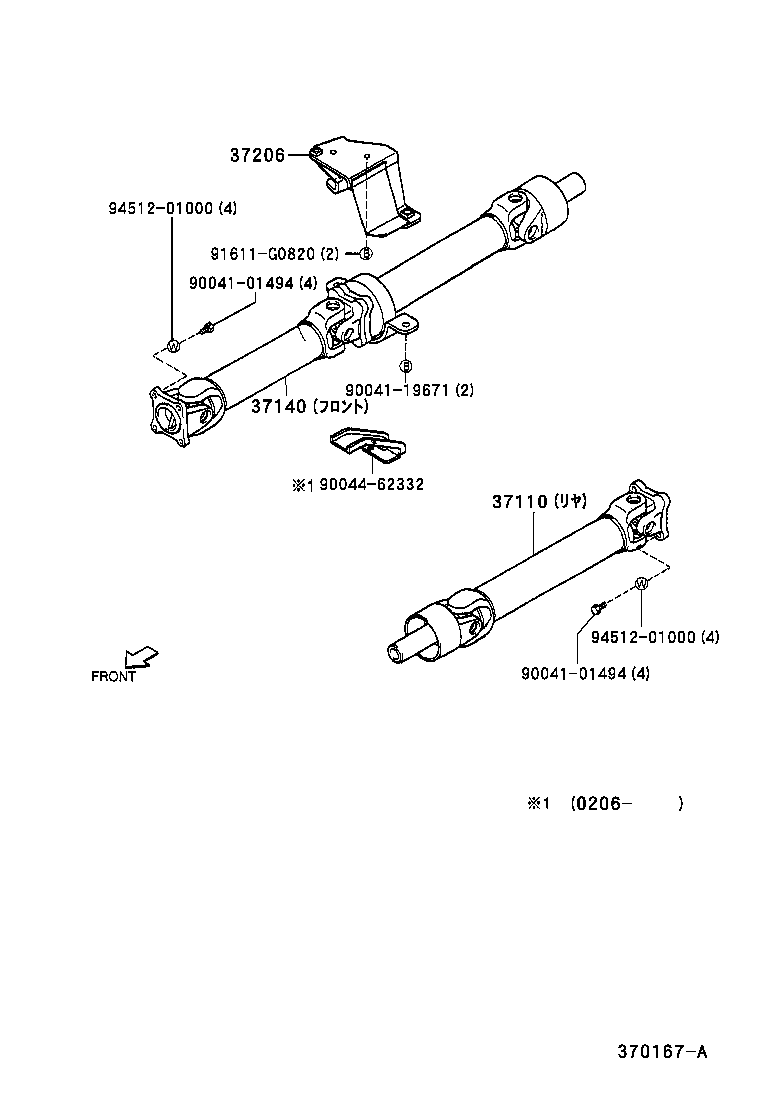

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-97509 |
S231 |
1 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37100-97502 |
S231 |
1 | ||
| 37206 - BRACKET SUB-ASSY, CENTER SUPPORT BEARING | ||||
| 37241-97502 |
S231 |
1 | ||
| Common parts | ||||
| 90041-01494 | ||||
| 90041-19671 | ||||
| 90044-62332 | ||||
| 91611-G0820 | ||||
| 94512-01000 | ||||
