S231E-ZPDF (2000)
Toyota Sparky

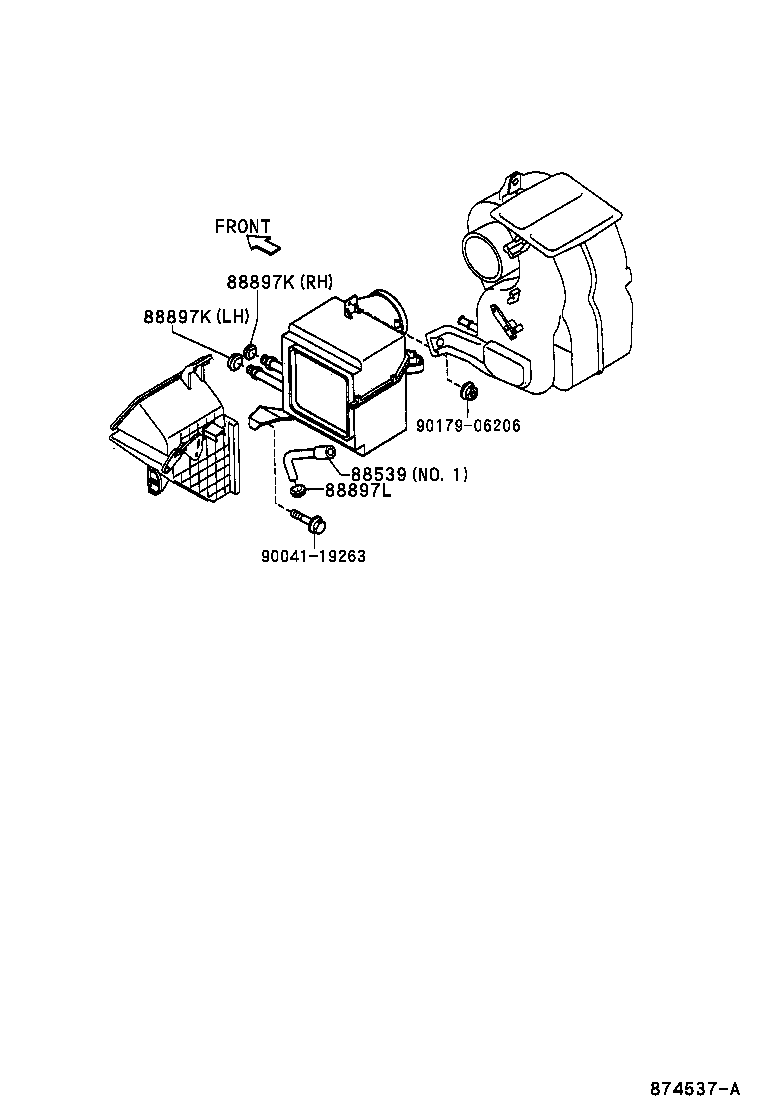

ILLUST NO. 1 OF 6(0009- )
ﾌﾛﾝﾄｸｰﾗﾕﾆﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-97505 |
S221,231 NO.2 |
1 | ||
| 88539-97503 |
S221,231 NO.1 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-36003 |
S221,231 右側 |
1 | ||
| 88897-87401 |
S221,231 左側 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-36003 |
S221,231 右側 |
1 | ||
| 88897-87401 |
S221,231 左側 |
1 | ||
| 88897L - GROMMET (FOR DRAIN HOSE) | ||||
| 88897-97502 |
S221,231 |
1 | ||
| Common parts | ||||
| 90041-19263 | ||||
| 90179-06206 | ||||

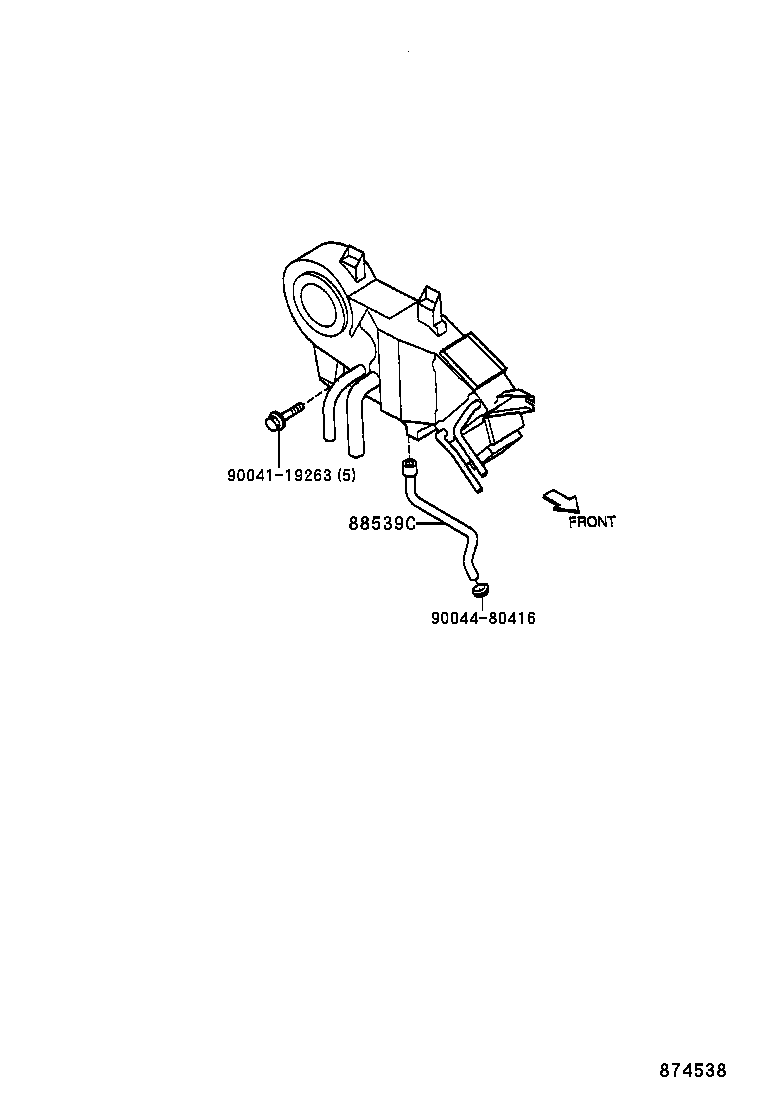

ILLUST NO. 3 OF 6(0009- )
ﾘﾔｸｰﾗﾕﾆﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-97502 |
S221,231 |
1 | ||
| Common parts | ||||
| 90041-19263 | ||||
| 90044-80416 | ||||

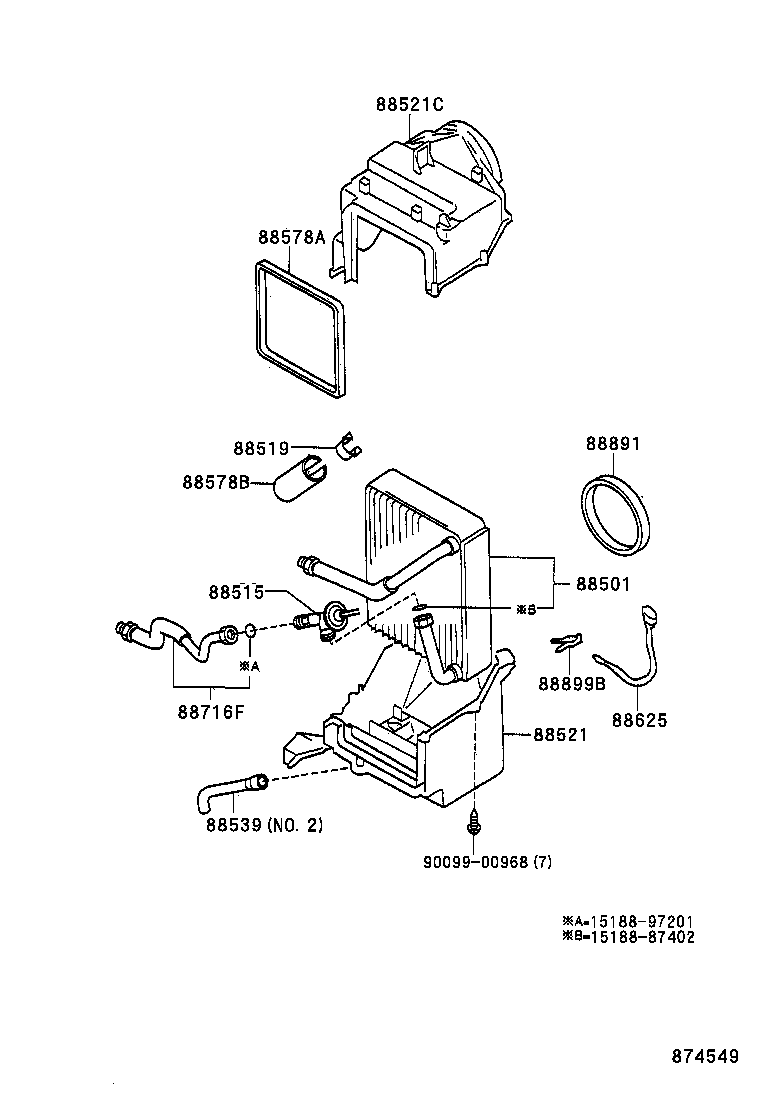

ILLUST NO. 2 OF 6(0009- )
ﾌﾛﾝﾄｸｰﾗﾕﾆﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-97505 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88501-97504 |
S221,231 ﾘﾔ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-97201 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88515-87503 |
S221,231 ﾘﾔ |
1 | ||
| 88519 - HOLDER, REMOTE BULB | ||||
| 88519-87701 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-97508 |
S221,231 |
1 | ||
| 88521C - CASE, COOLING UNIT | ||||
| 88521-97509 |
S221,231 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-97505 |
S221,231 NO.2 |
1 | ||
| 88539-97503 |
S221,231 NO.1 |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-97501 |
S221,231 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12100 |
S221,231 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-87501 |
S221,231 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-97510 |
S221,231 |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88891-87242 |
S221,231 |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88899-87201 |
S221,231 |
1 | ||
| Common parts | ||||
| 15188-87402 | ||||
| 15188-97201 | ||||
| 90099-00968 | ||||

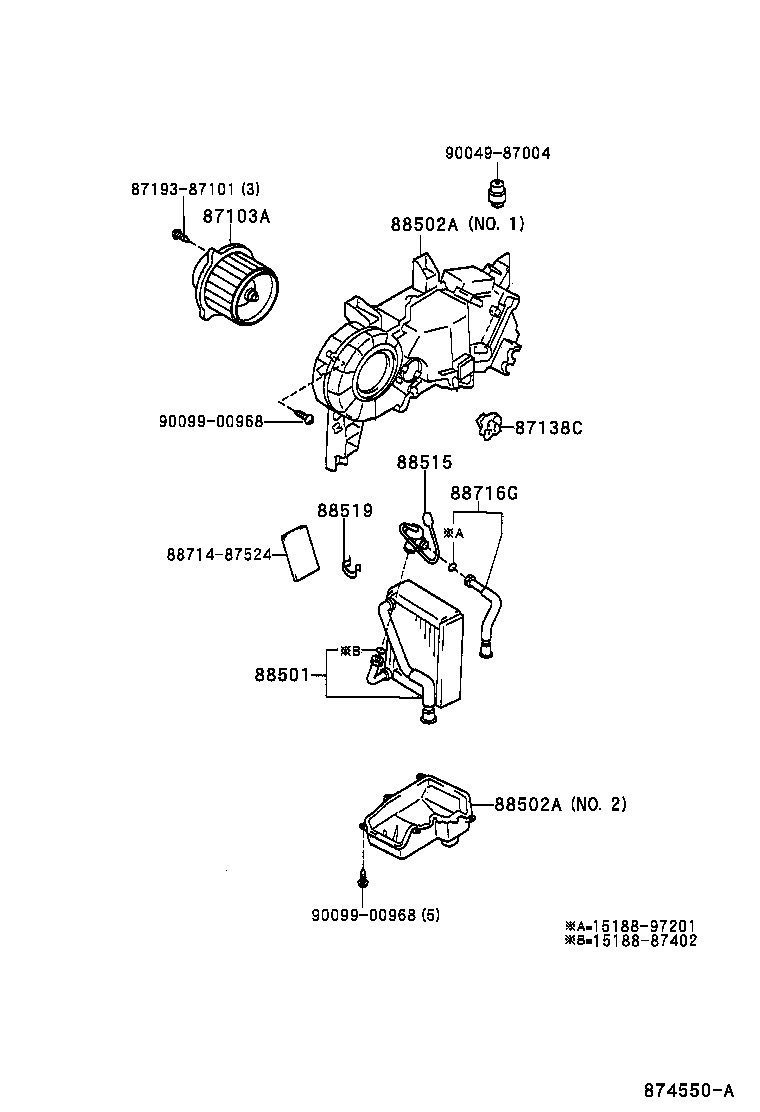

ILLUST NO. 4 OF 6(0009- )
ﾘﾔｸｰﾗﾕﾆﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-97501 |
S221,231 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-87401 |
S221,231 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-97505 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88501-97504 |
S221,231 ﾘﾔ |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 87311-97516 |
S221,231..G;S221,231..X..LOR NO.1 |
1 | ||
| 87311-97515 |
S221,231 NO.2 |
1 | ||
| 87311-97514 |
S221,231..G;S221,231..X..LOR ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 87311-97516 |
S221,231..G;S221,231..X..LOR NO.1 |
1 | ||
| 87311-97515 |
S221,231 NO.2 |
1 | ||
| 87311-97514 |
S221,231..G;S221,231..X..LOR ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-97201 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88515-87503 |
S221,231 ﾘﾔ |
1 | ||
| 88519 - HOLDER, REMOTE BULB | ||||
| 88519-87701 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-97508 |
S221,231 |
1 | ||
| Common parts | ||||
| 15188-87402 | ||||
| 15188-97201 | ||||
| 87193-87101 | ||||
| 88714-87524 | ||||
| 90049-87004 | ||||
| 90099-00968 | ||||

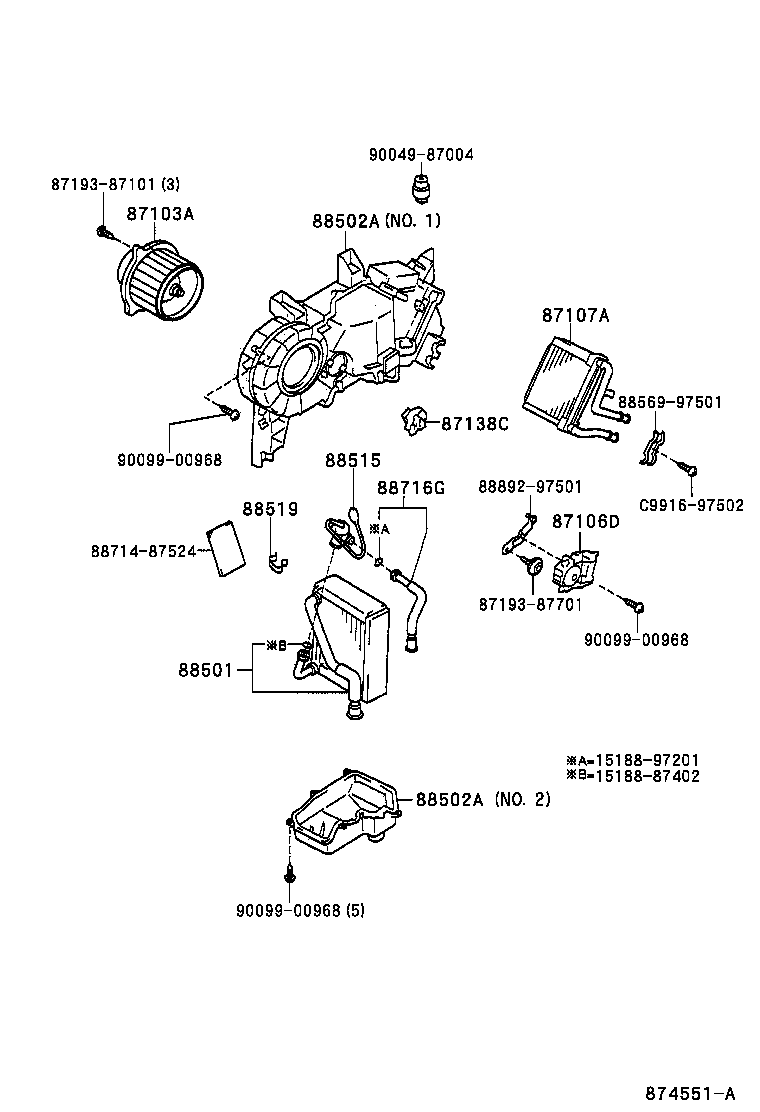

ILLUST NO. 5 OF 6(0009- )
ﾘﾔｸｰﾗﾕﾆﾂﾄ(ﾘﾔﾋｰﾀｲﾂﾀｲｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-97501 |
S221,231 |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-97501 |
S221,231 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-97506 |
S221,231 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-87401 |
S221,231 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-97505 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88501-97504 |
S221,231 ﾘﾔ |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 87311-97516 |
S221,231..G;S221,231..X..LOR NO.1 |
1 | ||
| 87311-97515 |
S221,231 NO.2 |
1 | ||
| 87311-97514 |
S221,231..G;S221,231..X..LOR ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 87311-97516 |
S221,231..G;S221,231..X..LOR NO.1 |
1 | ||
| 87311-97515 |
S221,231 NO.2 |
1 | ||
| 87311-97514 |
S221,231..G;S221,231..X..LOR ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-97201 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88515-87503 |
S221,231 ﾘﾔ |
1 | ||
| 88519 - HOLDER, REMOTE BULB | ||||
| 88519-87701 |
S221,231 ﾌﾛﾝﾄ |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-97508 |
S221,231 |
1 | ||
| Common parts | ||||
| 15188-87402 | ||||
| 15188-97201 | ||||
| 87193-87101 | ||||
| 87193-87701 | ||||
| 88569-97501 | ||||
| 88714-87524 | ||||
| 88892-97501 | ||||
| 90049-87004 | ||||
| 90099-00968 | ||||
| C9916-97502 | ||||

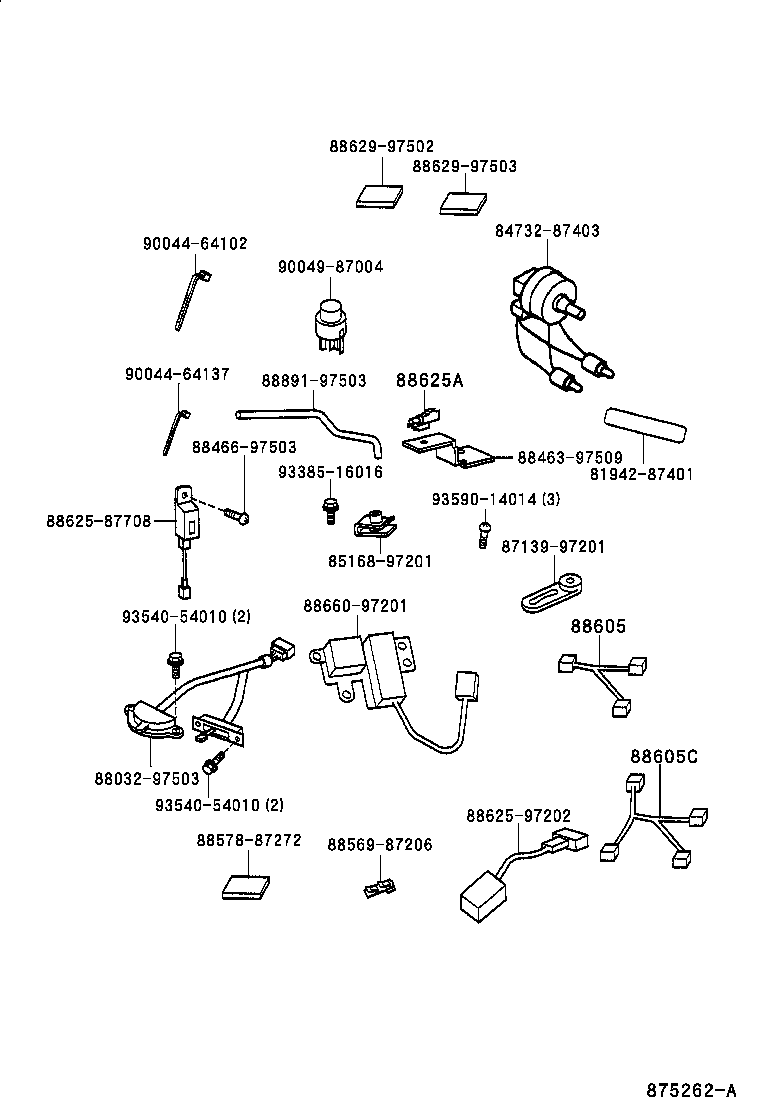

ILLUST NO. 6 OF 6(0009- )
ｱﾘ(ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-87507 |
S221,231 |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-87506 |
S221,231 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-87711 |
S221,231 |
1 | ||
| Common parts | ||||
| 81942-87401 | ||||
| 84732-87403 | ||||
| 85168-97201 | ||||
| 87139-97201 | ||||
| 88032-97503 | ||||
| 88463-97509 | ||||
| 88466-97503 | ||||
| 88569-87206 | ||||
| 88578-87272 | ||||
| 88625-87708 | ||||
| 88625-97202 | ||||
| 88629-97502 | ||||
| 88629-97503 | ||||
| 88660-97201 | ||||
| 88891-97503 | ||||
| 90044-64102 | ||||
| 90044-64137 | ||||
| 90049-87004 | ||||
| 93385-16016 | ||||
| 93540-54010 | ||||
| 93590-14014 | ||||
