S231E-ZPDF (2000)
Toyota Sparky

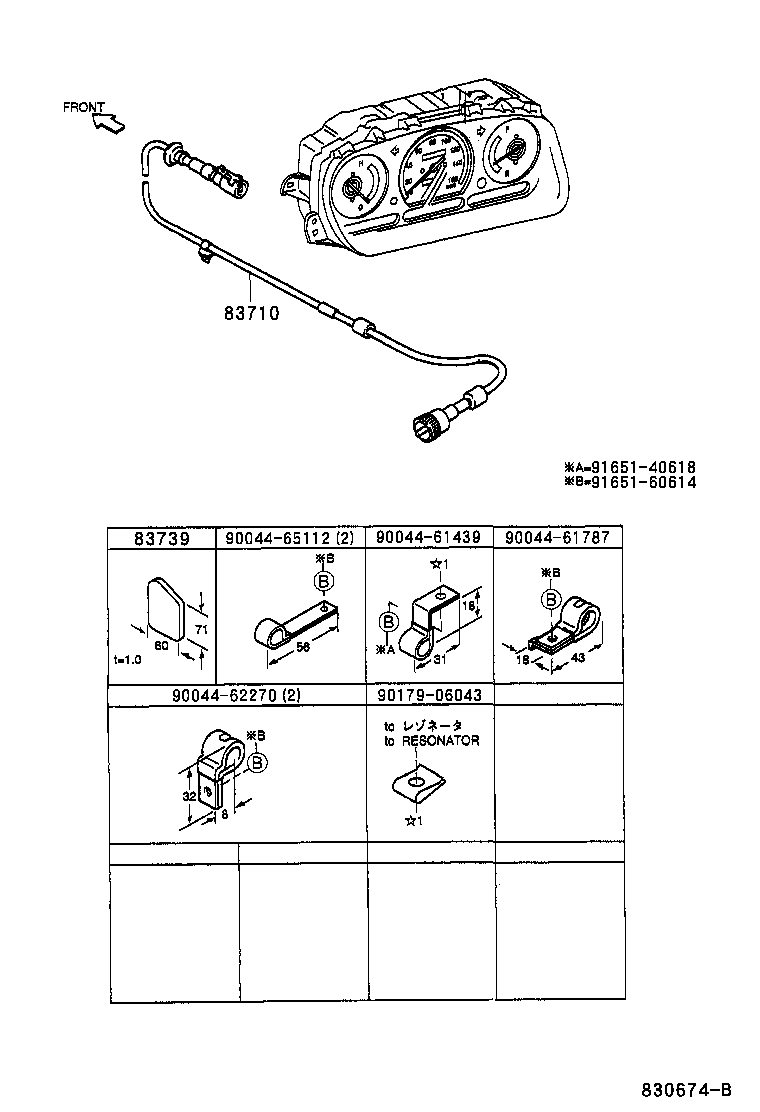

ILLUST NO. 2 OF 2(0009-0206)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-97505 |
S231 |
1 | ||
| 83739 - PROTECTOR, SPEED CONTROL CABLE | ||||
| 83739-97501 |
S231 |
1 | ||
| Common parts | ||||
| 90044-61439 | ||||
| 90044-61787 | ||||
| 90044-62270 | ||||
| 90044-65112 | ||||
| 90179-06043 | ||||
| 91651-40618 | ||||
| 91651-60614 | ||||

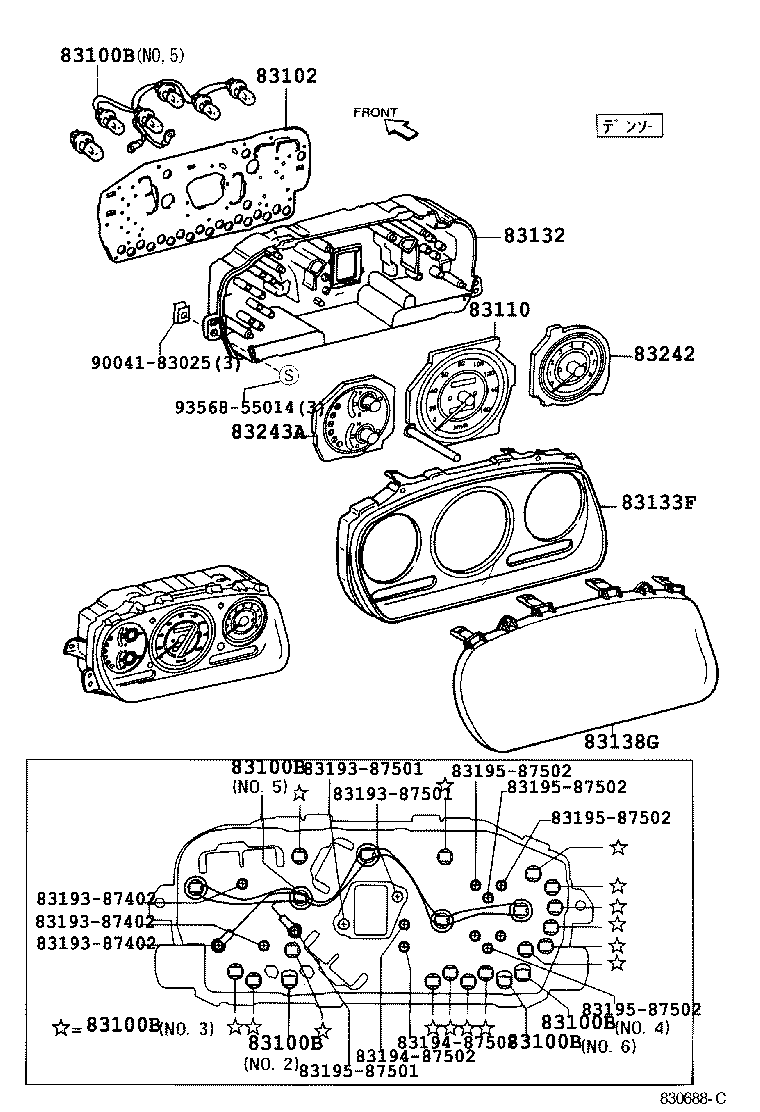

ILLUST NO. 1 OF 2(0009-0206)
ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-97527 |
S221,231 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-97533 |
S221,231 DENSO |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-97514 |
S221,231 |
1 | ||
| 83133F - PLATE, METER | ||||
| 83133-97506 |
S221,231 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-97201 |
S221,231 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83270-97513 |
S221,231 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-97508 |
S221,231..4AT |
1 | ||
| Common parts | ||||
| 83193-87402 | ||||
| 83193-87501 | ||||
| 83194-87502 | ||||
| 83195-87501 | ||||
| 83195-87502 | ||||
| 90041-83025 | ||||
| 93568-55014 | ||||

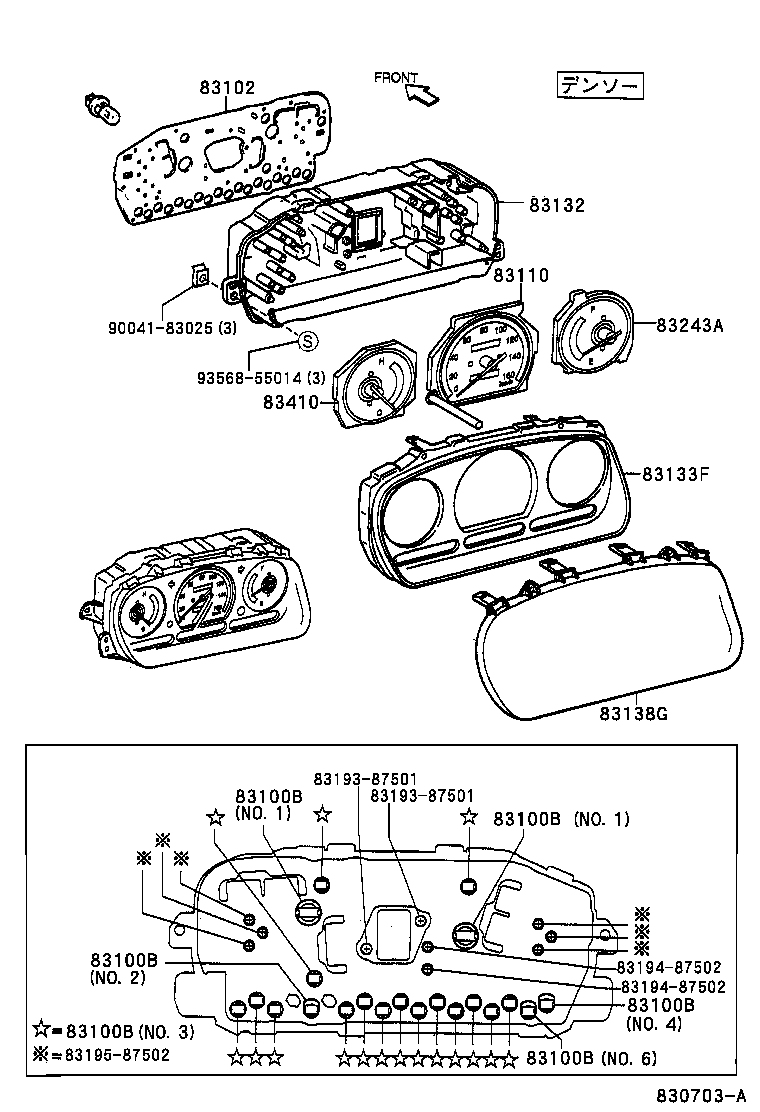

ILLUST NO. 1 OF 2(0009-0206)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-97207 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.2 |
1 | ||
| 83109-97501 |
S221,231 NO.5 |
1 | ||
| 83119-87205 |
S221,231 14V 1.4W,NO.3 |
18 | ||
| 83119-97202 |
S221,231 NO.4 |
1 | ||
| 83119-97203 |
S221,231..4AT,5MT;S221,231..4ATS..X NO.6 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-97527 |
S221,231 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-97533 |
S221,231 DENSO |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-97514 |
S221,231 |
1 | ||
| 83133F - PLATE, METER | ||||
| 83133-97506 |
S221,231 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-97201 |
S221,231 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-97508 |
S221,231..4AT |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 83194-87502 | ||||
| 83195-87502 | ||||
| 90041-83025 | ||||
| 93568-55014 | ||||
