S231E-ZPDF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

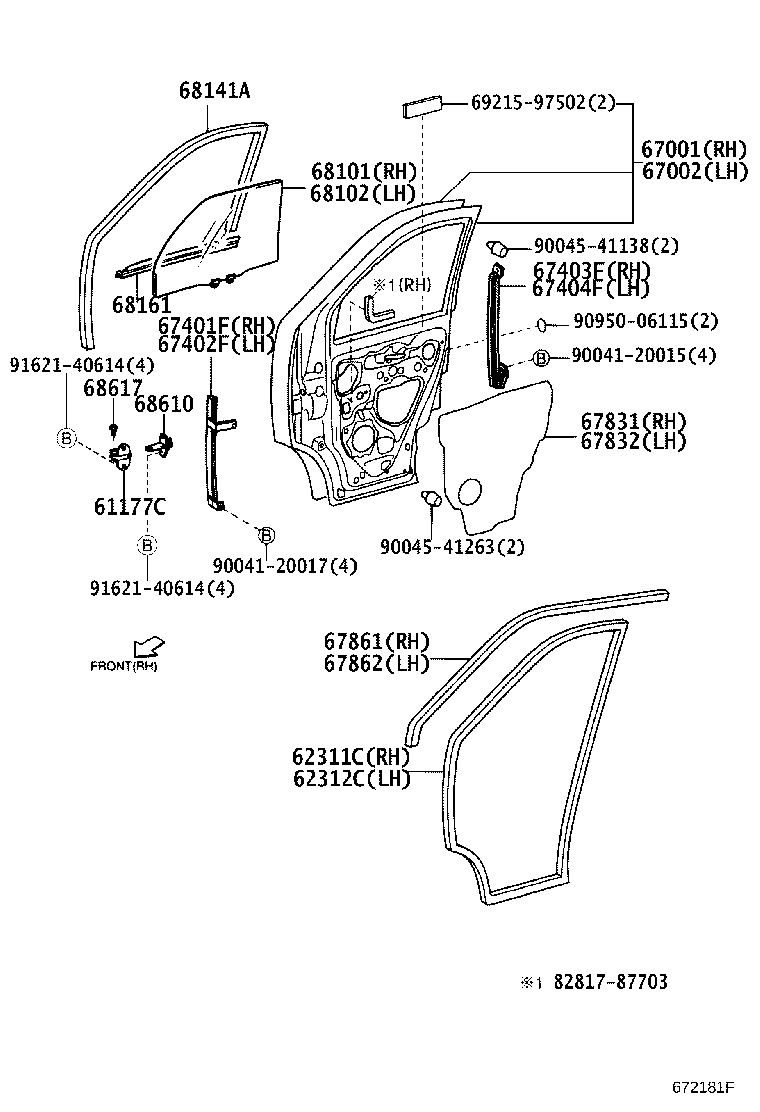

ILLUST NO. 2 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61177C - BRACKET, DOOR CHECK ARM | ||||
| 61177-97501 |
S221,231 |
2 | ||
| 62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 67861-97502 |
S221,231 |
1 | ||
| 62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 67862-97501 |
S221,231 |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-97519 |
S221,231 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-97516 |
S221,231 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-97501 |
S221,231 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-97501 |
S221,231 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-97501 |
S221,231 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-97501 |
S221,231 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-97509 |
S221,231 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-97509 |
S221,231 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 68213-97504 |
S221,231 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 68214-97504 |
S221,231 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-97505 |
S221,231 *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68101-97503 |
S221,231 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-97505 |
S221,231 *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68102-97503 |
S221,231 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141A - RUN, FRONT DOOR GLASS, UPPER | ||||
| 68141-97501 |
S221,231 |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68162-97501 |
S221,231 左側 |
1 | ||
| 68161-97501 |
S221,231 右側 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-97503 |
S221,231 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-87204 |
S221,231 |
2 | ||
| Common parts | ||||
| 69215-97502 | ||||
| 82817-87703 | ||||
| 90041-20015 | ||||
| 90041-20017 | ||||
| 90045-41138 | ||||
| 90045-41263 | ||||
| 90950-06115 | ||||
| 91621-40614 | ||||

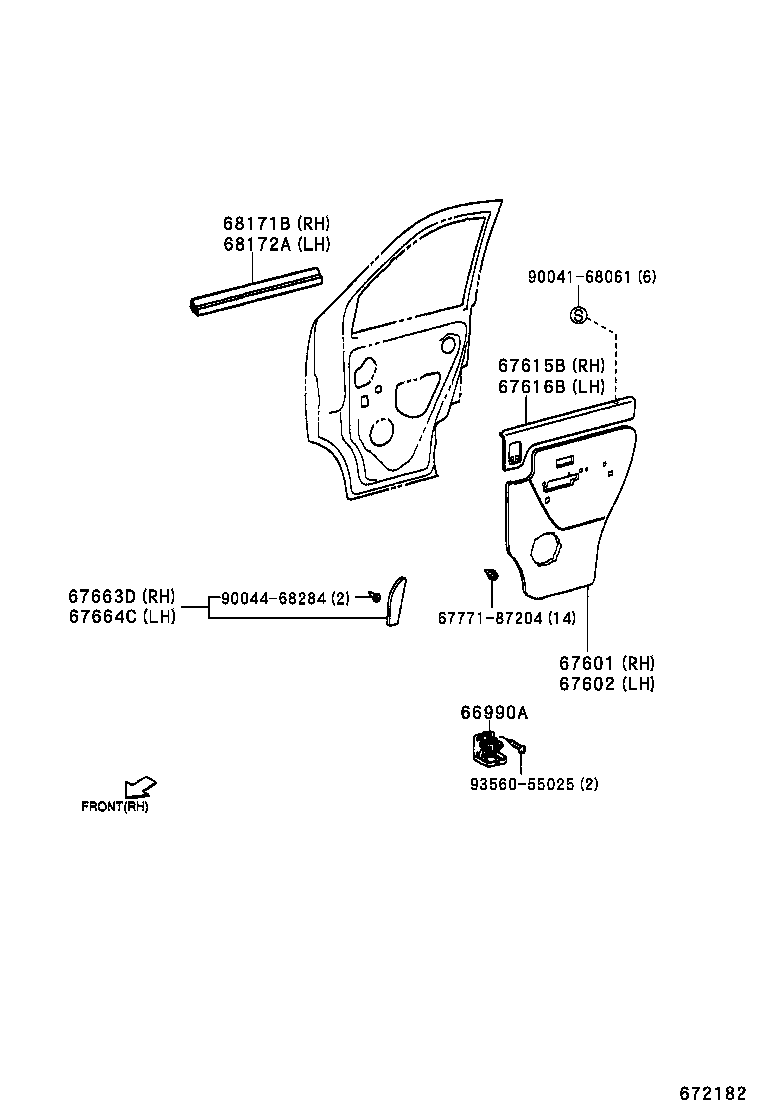

ILLUST NO. 1 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990A - HOLDER ASSY, CUP | ||||
| 66990-8720133 |
S221,231 GRAY |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9752703 |
S221,231 GRAY |
1 | ||
| 67610-9754503 |
S221,231 GRAY |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9752703 |
S221,231 GRAY |
1 | ||
| 67620-9754303 |
S221,231 GRAY |
1 | ||
| 67615B - TRIM, FRONT DOOR, UPPER RH | ||||
| 67615-9750113 |
S221,231 GRAY |
1 | ||
| 67615-9750401 |
S221,231 BLACK |
1 | ||
| 67616B - TRIM, FRONT DOOR, UPPER LH | ||||
| 67616-9750401 |
S221,231 BLACK |
1 | ||
| 67616-9750113 |
S221,231 GRAY |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-97501 |
S221,231 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-97501 |
S221,231 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-97503 |
S221,231 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-97503 |
S221,231 |
1 | ||
| Common parts | ||||
| 67771-87204 | ||||
| 90041-68061 | ||||
| 90044-68284 | ||||
| 93560-55025 | ||||
