S231E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

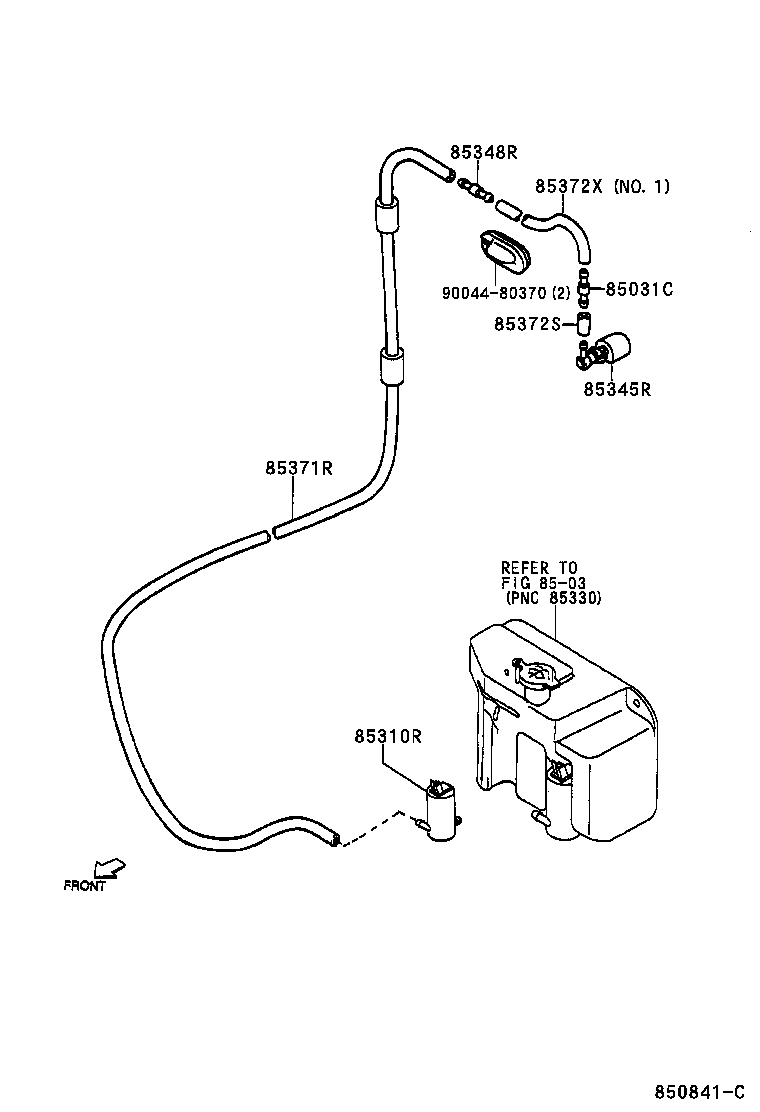

(0009-0211)HIR

Click highlighted areas on diagram

diagram 8503 85031C 85310R 85345R 85348R 85371R 85372S 85372X 9004480370
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-87401

S221,231

 1
85310R - MOTOR ASSY, REAR WASHER
85310-97501

S221,231

 1
85345R - NOZZLE, REAR WASHER
85391-97502

S221,231..HIR

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-87201

S221,231

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85343-97501

S221,231

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85374-87401

S221,231..HIR

長さ=1000

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85375-87502

S221,231..HIR

長さ=1000,NO.2

 1
85375-87502

S221,231

長さ=1000,NO.2

 1
Common parts
90044-80370
Linked diagrams
8503

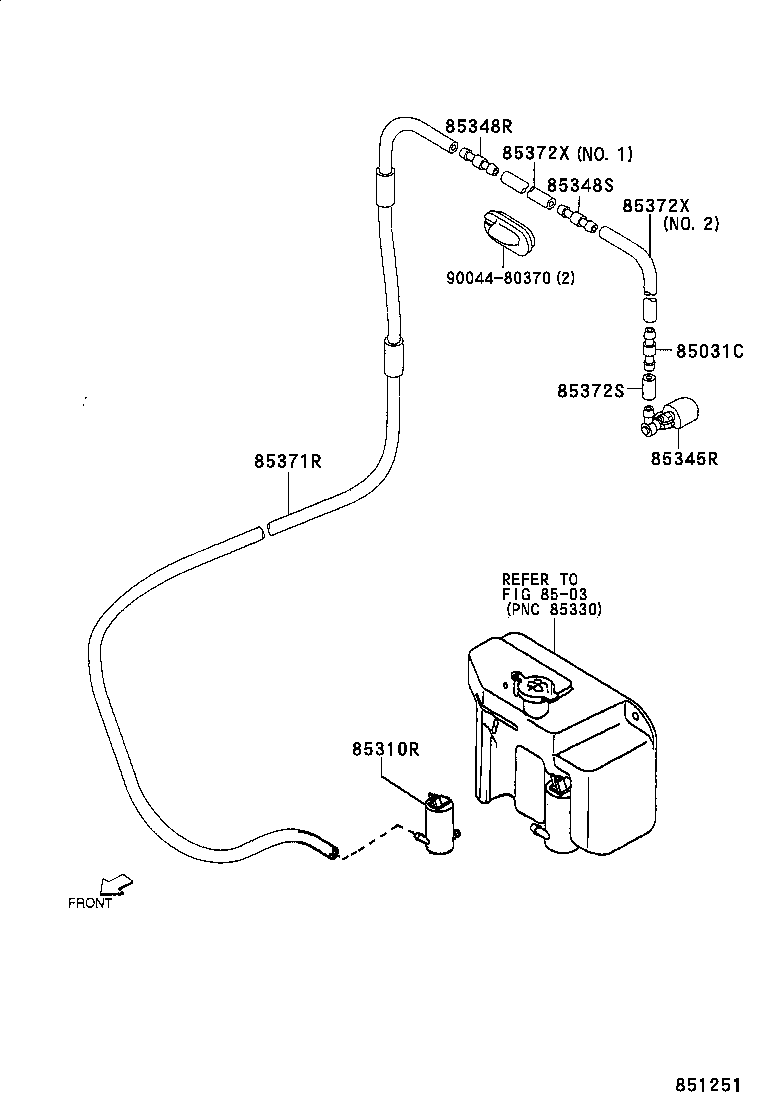

(0211- )HIR

Click highlighted areas on diagram

diagram 8503 85031C 85310R 85345R 85348R 85348S 85371R 85372S 85372X 85372X 9004480370
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-87401

S221,231

 1
85310R - MOTOR ASSY, REAR WASHER
85310-97501

S221,231

 1
85345R - NOZZLE, REAR WASHER
85391-97502

S221,231..HIR

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-87201

S221,231

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85349-87201

S221,231

 1
85349-87201

S221,231..HIR

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85343-97501

S221,231

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85374-87401

S221,231..HIR

長さ=1000

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85375-87502

S221,231..HIR

長さ=1000,NO.2

 1
85375-87502

S221,231

長さ=1000,NO.2

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85375-87502

S221,231..HIR

長さ=1000,NO.2

 1
85375-87502

S221,231

長さ=1000,NO.2

 1
Common parts
90044-80370
Linked diagrams
8503
