S231E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0009- )

Click highlighted areas on diagram

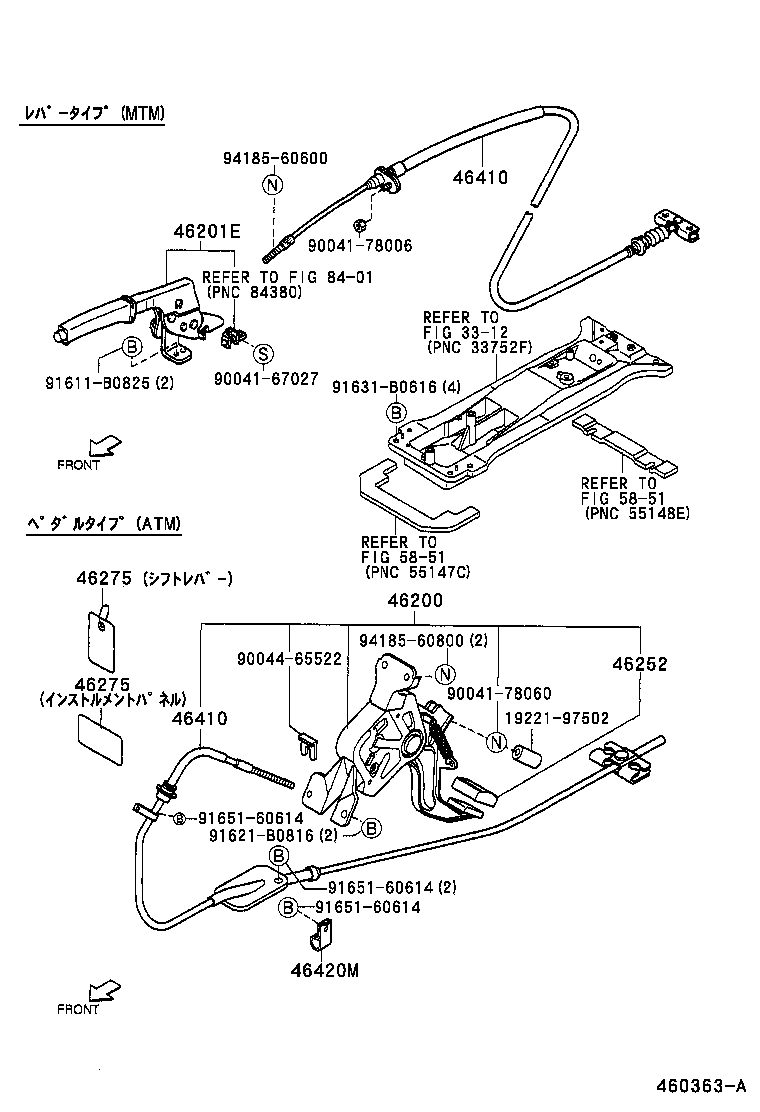

diagram 1922197502 3312 46200 46201E 46252 46275 46275 46410 46410 46420M 5851 5851 8401 9004167027 9004178006 9004178060 9004465522 91611B0825 91621B0816 91631B0616 9165160614 9165160614 9165160614 9418560600 9418560800
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-8754713

S221,231..5MT

GRAY

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-97503

S221,231..5MT

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-97503

S221,231..5MT

 1
Common parts
19221-97502
90041-67027
90041-78006
90041-78060
90044-65522
91611-B0825
91621-B0816
91631-B0616
91651-60614
94185-60600
94185-60800
Linked diagrams
3312
5851
8401

ILLUST NO. 2 OF 2(0009- )

Click highlighted areas on diagram

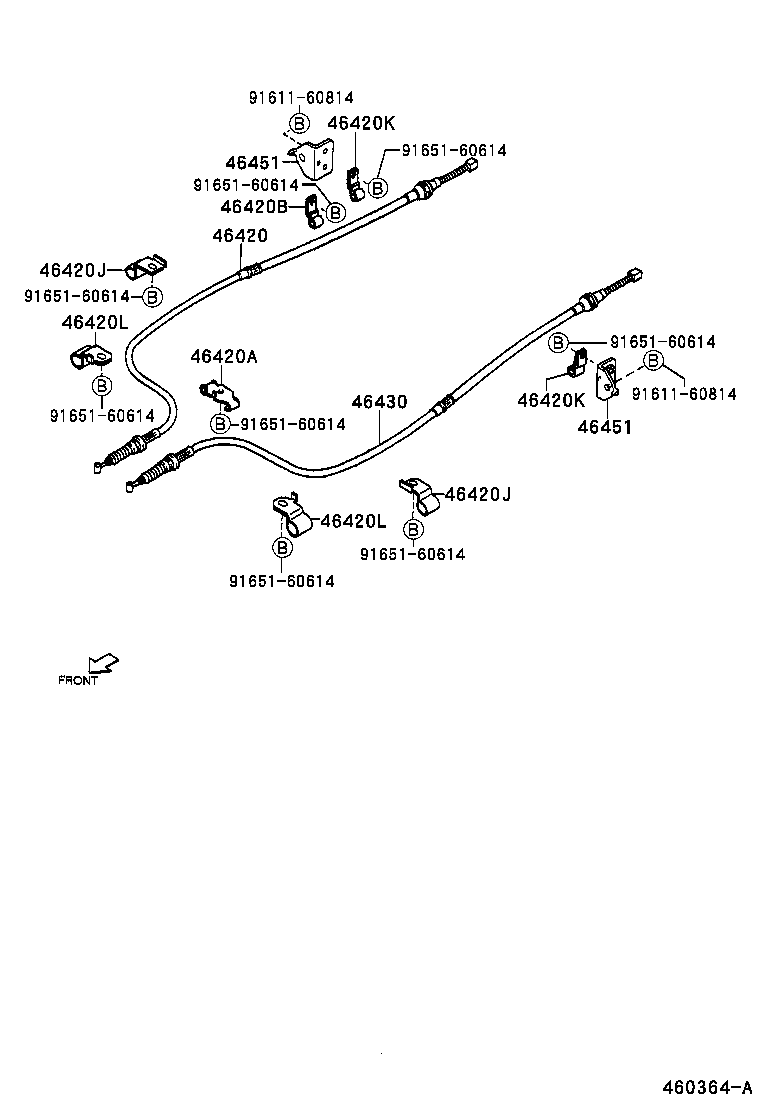

diagram 46420 46420A 46420B 46420J 46420J 46420K 46420K 46420L 46420L 46430 46451 46451 9161160814 9161160814 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614
Part # Description Qty Price
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-97506

S221,231

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90044-61757

S221,231

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90044-61822

S221,231

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90044-61755

S221,231

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90044-61755

S221,231

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90044-61437

S221,231

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90044-61437

S221,231

 2
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
90044-61754

S221,231

 2
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
90044-61754

S221,231

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-97505

S221,231

 1
46451 - BRACKET, CABLE SUPPORT
46529-97501

S221,231

 2
46451 - BRACKET, CABLE SUPPORT
46529-97501

S221,231

 2
Common parts
91611-60814
91651-60614
