S231E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

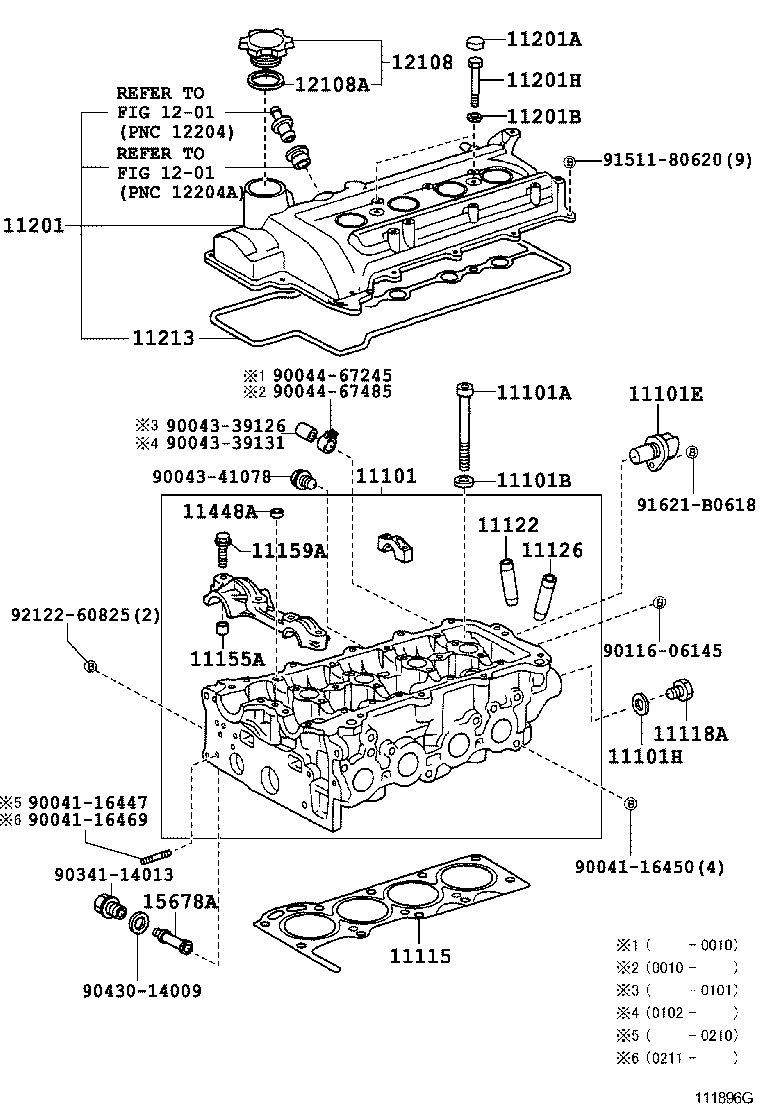

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101E 11101H 11115 11118A 11122 11126 11155A 11159A 11201 11201A 11201B 11201H 11213 11448A 1201 1201 12108 12108A 15678A 9004116447 9004116450 9004116469 9004339126 9004339131 9004341078 9004467245 9004467485 9011606145 9034114013 9043014009 9151180620 91621B0618 9212260825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-97416

K3VE..S221,231

 1
11101-97408

K3VE..S221,231

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90041-10045

K3VE..S221,231

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90042-01637

K3VE..S221,231

 10
11101E - SENSOR, CAM POSITION
90919-05024

K3VE..S221,231

 1
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-12221

K3VE..S221,231

 1
11115 - GASKET, CYLINDER HEAD
11115-97402

K3VE..S221,231

 1
11118A - PLUG, STRAIGHT, NO.1
90043-41077

K3VE..S221,231

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-21010

K3VE..S221,231

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-21010

K3VE..S221,231

O/S 0.05

 8
11155A - PIN, RING W/HEAD
90042-53010

K3VE..S221,231

 1
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911

K3VE..S221,231

 20
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-97406

K3VE..S221,231

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-06036

K3VE..S221,231

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013

K3VE..S221,231

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
90041-05272

K3VE..S221,231

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-97401

K3VE..S221,231

 1
11448A - ORIFICE, CYLINDER HEAD OIL
11448-87201

K3VE..S221,231

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-97401

K3VE..S221,231

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

K3VE..S221,231

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

K3VE..S221,231

 1
Common parts
90041-16447
90041-16450
90041-16469
90043-39126
90043-39131
90043-41078
90044-67245
90044-67485
90116-06145
90341-14013
90430-14009
91511-80620
91621-B0618
92122-60825
Linked diagrams
1201
