S231E-ZMDF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

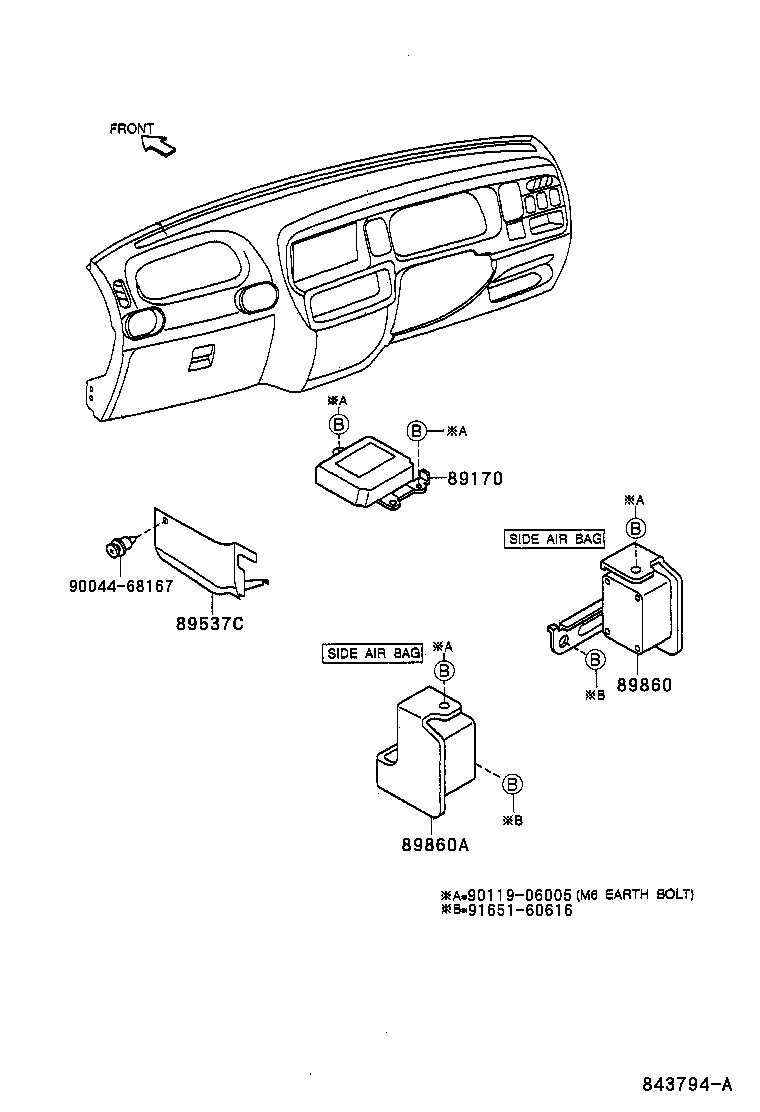

Click highlighted areas on diagram

diagram 89170 89537C 89860 89860A 9004468167 9011906005 9165160616
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-97508

S221,231

 1
89170-97512

S221,231..G

ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ)

 1
89537C - COVER, COMPUTER
89537-97501

S221,231

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-97501

S221,231..G

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-97501

S221,231..G

 1
Common parts
90044-68167
90119-06005
91651-60616
