S231E-ZMDF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

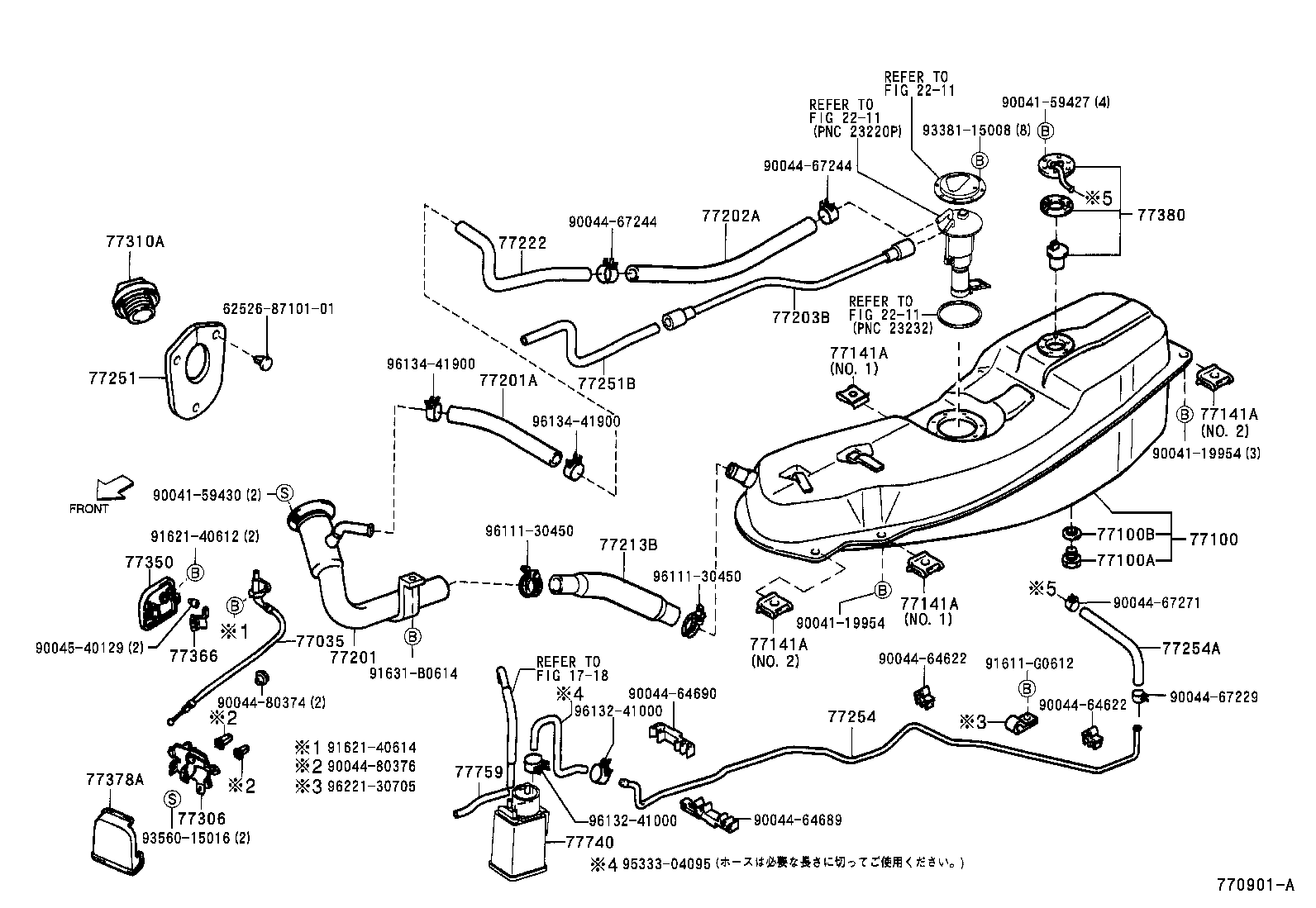

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-97503 |
S221,231 |
1 | ||
| 77035-97501 |
S221,231 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-97502 |
S231 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90041-05177 |
S221,231 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90044-30291 |
S221,231 |
1 | ||
| 77141A - REINFORCEMENT, FUEL TANK FLANGE | ||||
| 77141-87504 |
S221,231 NO.1 |
1 | ||
| 77141-97501 |
S221,231 NO.2 |
2 | ||
| 77141A - REINFORCEMENT, FUEL TANK FLANGE | ||||
| 77141-87504 |
S221,231 NO.1 |
1 | ||
| 77141-97501 |
S221,231 NO.2 |
2 | ||
| 77141A - REINFORCEMENT, FUEL TANK FLANGE | ||||
| 77141-87504 |
S221,231 NO.1 |
1 | ||
| 77141-97501 |
S221,231 NO.2 |
2 | ||
| 77141A - REINFORCEMENT, FUEL TANK FLANGE | ||||
| 77141-87504 |
S221,231 NO.1 |
1 | ||
| 77141-97501 |
S221,231 NO.2 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-97504 |
S221,231 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77269-97503 |
S221,231 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77269-97502 |
S221,231 |
1 | ||
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-97503 |
S221,231 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-97503 |
S221,231 |
1 | ||
| 77222 - TUBE, FUEL TANK BREATHER, NO.2 | ||||
| 77222-97501 |
S221,231 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-97501 |
S221,231 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-97506 |
S221,231 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-97503 |
S221,231 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77259-97501 |
S221,231 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-97501 |
S221,231 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-97201 |
S221,231 |
1 | ||
| 77310-97402 |
S221,231 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-9750304 |
S221,231 DARK BLUE M. M.,B42 |
1 | ||
| 77350-9750302 |
S221,231 RED MC.,3K3 |
1 | ||
| 77350-9750309 |
S221,231 SHAMPGNE ME.,583 |
1 | ||
| 77350-9750308 |
S221,231 WHITE,056 |
1 | ||
| 77350-9750301 |
S221,231 BLACK M.,6A5 |
1 | ||
| 77350-9750303 |
S221,231 SILVER M.,1C0 |
1 | ||
| 77350-9750318 |
S221,231 WHITE PEARL MC.,W16 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-87203 |
S221,231 |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77345-9750113 |
S221,231 GRAY |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-87501 |
S221,231 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-97501 |
S221,231 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 62526-8710101 | ||||
| 90041-19954 | ||||
| 90041-59427 | ||||
| 90041-59430 | ||||
| 90044-64622 | ||||
| 90044-64689 | ||||
| 90044-64690 | ||||
| 90044-67229 | ||||
| 90044-67244 | ||||
| 90044-67271 | ||||
| 90044-80374 | ||||
| 90044-80376 | ||||
| 90045-40129 | ||||
| 91611-G0612 | ||||
| 91621-40612 | ||||
| 91621-40614 | ||||
| 91631-B0614 | ||||
| 93381-15008 | ||||
| 93560-15016 | ||||
| 95333-04095 | ||||
| 96111-30450 | ||||
| 96132-41000 | ||||
| 96134-41900 | ||||
| 96221-30705 | ||||
| Linked diagrams | ||||
| 1718 | ||||
| 2211 | ||||
