Toyota Sparky S231E SPOILER & SIDE MUDGUARD

Manufacturers Home
Toyota
JP
SPARKY
S231E-ZMDF (2000)
7652 - SPOILER & SIDE MUDGUARD

S231E-ZMDF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002

Engine K3VE

Transmission 5MT MTM

Displacement 2500cc

Power 168 HP (125 kW)

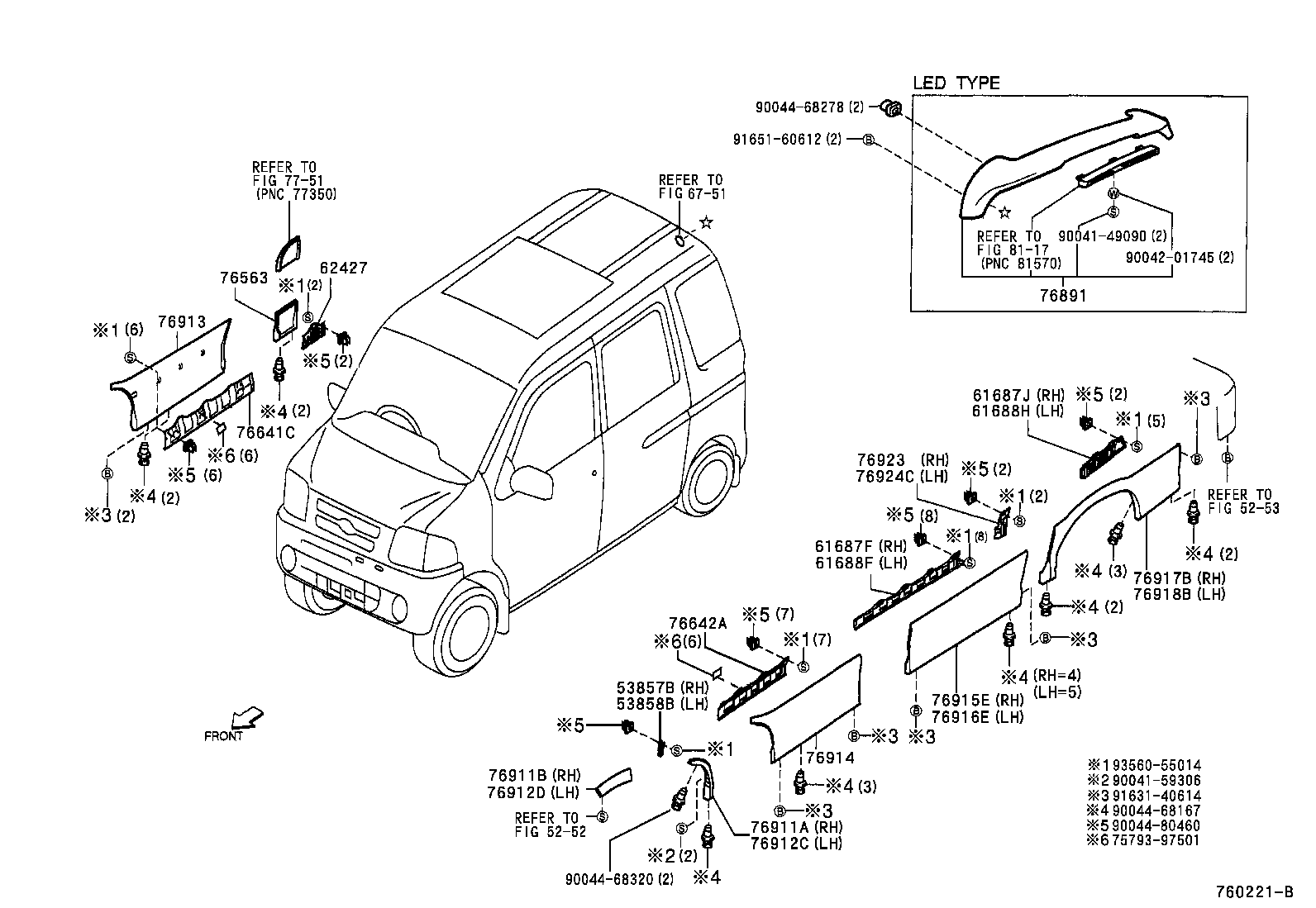

ILLUST NO. 1 OF 2(0009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-97502	S221,231	09/2000 - 12/2999	1
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858-97502	S221,231	09/2000 - 12/2999	1
61687F - BRACKET, MUDGUARD, REAR
67134-97502	S221,231	09/2000 - 12/2999	1
61687J - BRACKET, MUDGUARD, REAR RH NO.2
67467-97502	S221,231	09/2000 - 12/2999	1
61688F - BRACKET, MUDGUARD, REAR LH
67135-97502	S221,231	09/2000 - 12/2999	1
61688H - BRACKET, MUDGUARD, REAR LH, NO.2
67468-97503	S221,231	09/2000 - 12/2999	1
62427 - BRACKET, CENTER PILLAR GARNISH, RH
62427-97502	S221,231	09/2000 - 12/2999	1
76563 - MOULDING, CENTER PILLAR OUTER GARNISH, LOWER RH
76563-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
76563-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
76563-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
76563-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76563-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76563-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76563-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76641C - BRACKET, FRONT MUDGUARD, RH
67123-97502	S221,231	09/2000 - 06/2001	1
67123-97503	S221,231	06/2001 - 12/2999	1
76642A - BRACKET, FRONT MUDGUARD, LH
67124-97503	S221,231	06/2001 - 12/2999	1
67124-97502	S221,231	09/2000 - 06/2001	1
76891 - SPOILER, REAR NO.1
76870-9750214	S221,231 ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),DARK BLUE M.M.,B42	09/2000 - 06/2002	1
76870-9750201	S221,231..G BLACK M.,6A5	09/2000 - 06/2002	1
76870-9750214	S221,231..G DARK BLUE M.M.,B42	09/2000 - 06/2002	1
76870-9750201	S221,231..HIR ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),BLACK M.,6A5	09/2000 - 12/2999	1
76870-9750218	S221,231..G WHITE,056	09/2000 - 06/2002	1
76870-9750213	S221,231..G SILVER M.,1C0	09/2000 - 06/2002	1
76870-9750202	S221,231..G RED MC.,3K3	09/2000 - 06/2001	1
76870-9750228	S221,231..G WHITE PEARL MC.,W16	09/2000 - 06/2002	1
76870-9750202	S221,231 ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),RED MC.,3K3	09/2000 - 06/2001	1
76870-9750209	S221,231..G SHAMPGNE ME.,583	06/2001 - 06/2002	1
76870-9750213	S221,231..HIR ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),SILVER M.,1C0	09/2000 - 12/2999	1
76870-9750209	S221,231..HIR ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),SHAMPGNE ME.,583	06/2001 - 12/2999	1
76870-9750218	S221,231..HIR ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),WHITE,056	09/2000 - 12/2999	1
76870-9750228	S221,231..HIR ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76911A - MUDGUARD, FENDER PANEL, RH
75875-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75875-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75875-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75875-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75875-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75875-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75875-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76911B - MUDGUARD, SIDE, RH
75871-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75871-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75871-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75871-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75871-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75871-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75871-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
76912C - MUDGUARD, FENDER PANEL, LH
75876-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75876-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75876-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75876-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75876-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75876-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75876-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76912D - MUDGUARD, SIDE, LH
75872-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75872-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75872-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75872-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75872-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75872-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75872-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76913 - MUDGUARD, FRONT DOOR, RH
75735-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75735-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75735-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75735-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75735-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75735-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75735-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76914 - MUDGUARD, FRONT DOOR, LH
75736-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75736-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75736-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75736-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75736-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75736-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75736-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76915E - MUDGUARD, SLIDE DOOR, RH
75745-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75745-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75745-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75745-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75745-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75745-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75745-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76916E - MUDGUARD, SLIDE DOOR, LH
75746-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75746-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75746-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75746-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75746-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75746-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75746-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76917B - MUDGUARD, QUARTER PANEL, RH
75873-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75873-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75873-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75873-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75873-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75873-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75873-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76918B - MUDGUARD, QUARTER PANEL, LH
75874-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75874-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75874-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75874-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75874-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75874-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75874-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76923 - RETAINER, SIDE MUDGUARD
61687-97502	S221,231	09/2000 - 12/2999	1
76924C - RETAINER, SIDE MUDGUARD, NO.2
61688-97502	S221,231	09/2000 - 12/2999	1
Common parts
75793-97501
90041-49090
90041-59306
90042-01745
90044-68167
90044-68278
90044-68320
90044-80460
91631-40614
91651-60612
93560-55014
Linked diagrams
5252
5253
6751
7751
8117

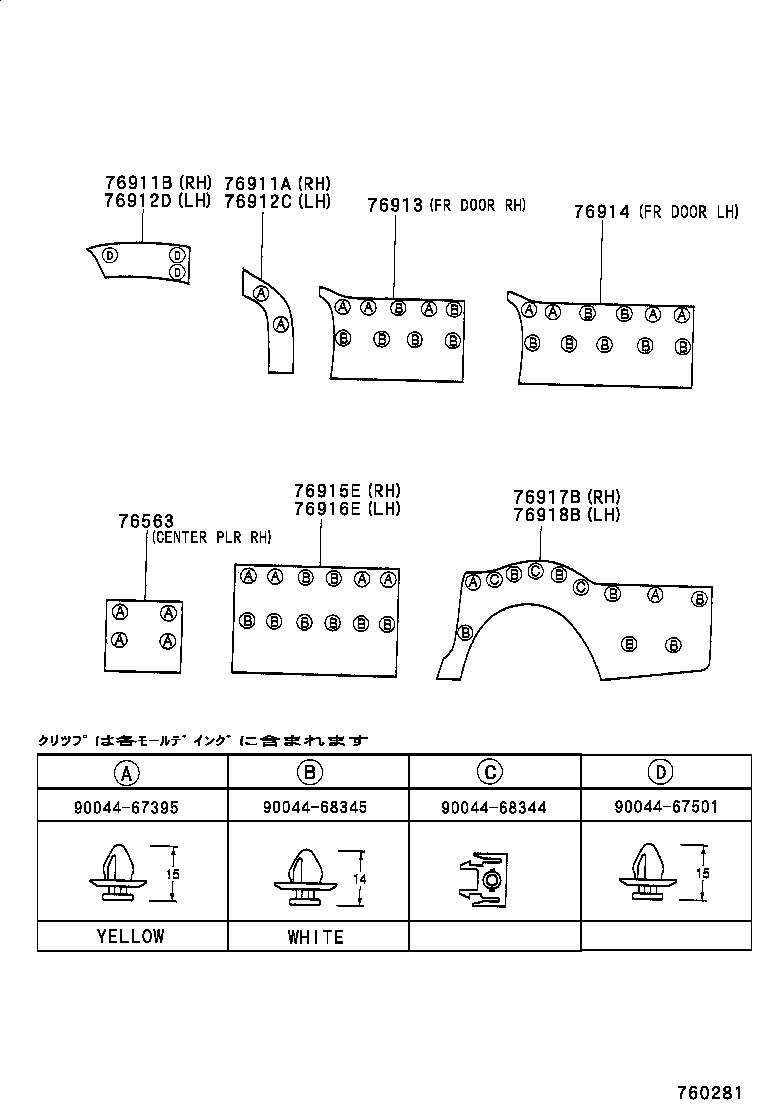

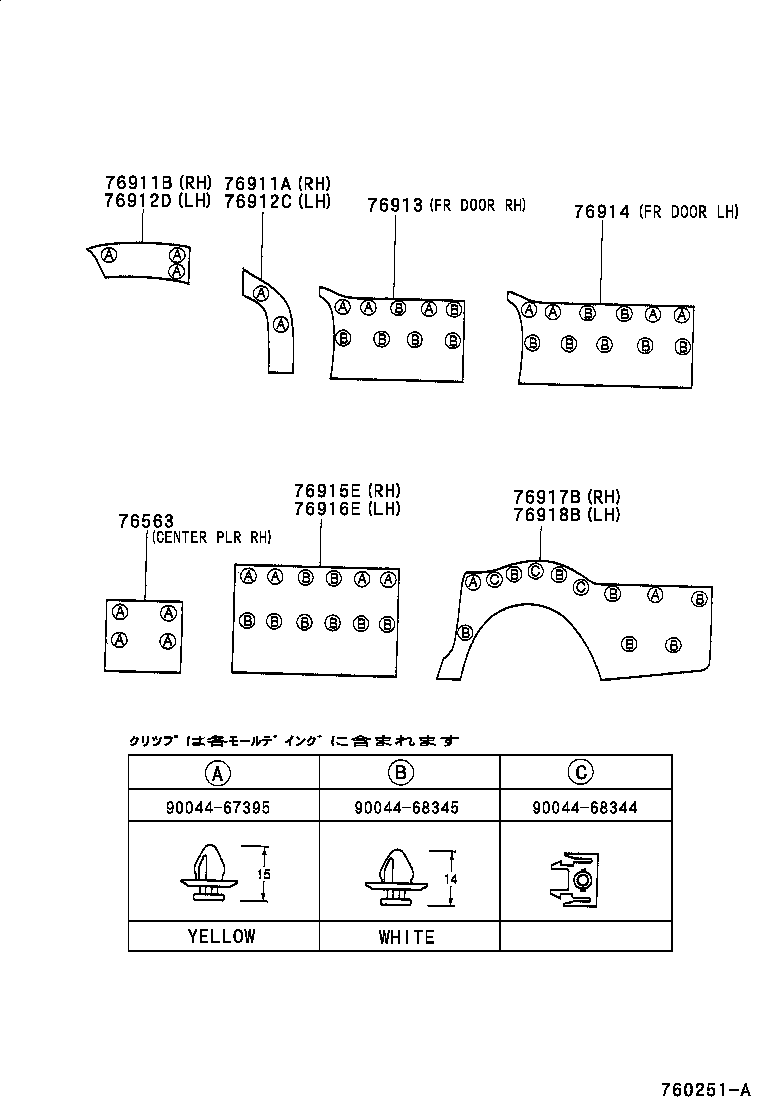

ILLUST NO. 2 OF 2(0009-0204)

Click highlighted areas on diagram

Part #	Description	Period	Qty
76563 - MOULDING, CENTER PILLAR OUTER GARNISH, LOWER RH
76563-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
76563-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
76563-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
76563-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76563-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76563-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76563-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76911A - MUDGUARD, FENDER PANEL, RH
75875-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75875-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75875-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75875-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75875-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75875-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75875-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76911B - MUDGUARD, SIDE, RH
75871-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75871-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75871-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75871-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75871-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75871-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75871-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
76912C - MUDGUARD, FENDER PANEL, LH
75876-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75876-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75876-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75876-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75876-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75876-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75876-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76912D - MUDGUARD, SIDE, LH
75872-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75872-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75872-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75872-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75872-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75872-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75872-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76913 - MUDGUARD, FRONT DOOR, RH
75735-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75735-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75735-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75735-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75735-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75735-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75735-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76914 - MUDGUARD, FRONT DOOR, LH
75736-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75736-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75736-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75736-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75736-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75736-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75736-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76915E - MUDGUARD, SLIDE DOOR, RH
75745-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75745-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75745-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75745-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75745-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75745-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75745-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76916E - MUDGUARD, SLIDE DOOR, LH
75746-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75746-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75746-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75746-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75746-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75746-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75746-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76917B - MUDGUARD, QUARTER PANEL, RH
75873-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75873-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75873-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75873-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75873-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75873-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75873-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76918B - MUDGUARD, QUARTER PANEL, LH
75874-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75874-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75874-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75874-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75874-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75874-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75874-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
Common parts
90044-67395
90044-68344
90044-68345

ILLUST NO. 2 OF 2(0205- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
76563 - MOULDING, CENTER PILLAR OUTER GARNISH, LOWER RH
76563-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
76563-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
76563-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
76563-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76563-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76563-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76563-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76911A - MUDGUARD, FENDER PANEL, RH
75875-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75875-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75875-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75875-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75875-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75875-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75875-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76911B - MUDGUARD, SIDE, RH
75871-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75871-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75871-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75871-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75871-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75871-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75871-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
76912C - MUDGUARD, FENDER PANEL, LH
75876-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75876-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75876-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75876-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75876-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75876-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75876-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76912D - MUDGUARD, SIDE, LH
75872-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75872-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75872-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75872-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75872-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75872-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75872-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
76913 - MUDGUARD, FRONT DOOR, RH
75735-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75735-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75735-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75735-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75735-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75735-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75735-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
76914 - MUDGUARD, FRONT DOOR, LH
75736-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75736-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75736-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75736-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75736-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75736-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75736-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76915E - MUDGUARD, SLIDE DOOR, RH
75745-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75745-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75745-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75745-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75745-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75745-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75745-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76916E - MUDGUARD, SLIDE DOOR, LH
75746-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75746-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75746-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75746-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75746-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75746-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75746-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
76917B - MUDGUARD, QUARTER PANEL, RH
75873-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75873-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
75873-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75873-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75873-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75873-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75873-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
76918B - MUDGUARD, QUARTER PANEL, LH
75874-9750101	S221,231 BLACK M.,6A5	09/2000 - 12/2999	1
75874-9750104	S221,231 DARK BLUE M.M.,B42	09/2000 - 06/2002	1
75874-9750109	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
75874-9750118	S221,231 WHITE PEARL MC.,W16	09/2000 - 12/2999	1
75874-9750103	S221,231 SILVER M.,1C0	09/2000 - 12/2999	1
75874-9750102	S221,231 RED MC.,3K3	09/2000 - 06/2001	1
75874-9750108	S221,231 WHITE,056	09/2000 - 12/2999	1
Common parts
90044-67395
90044-67501
90044-68344
90044-68345

S231E-ZMDF (2000)

ILLUST NO. 1 OF 2(0009- )

ILLUST NO. 2 OF 2(0009-0204)

ILLUST NO. 2 OF 2(0205- )

Part Price Details
