S231E-ZMDF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

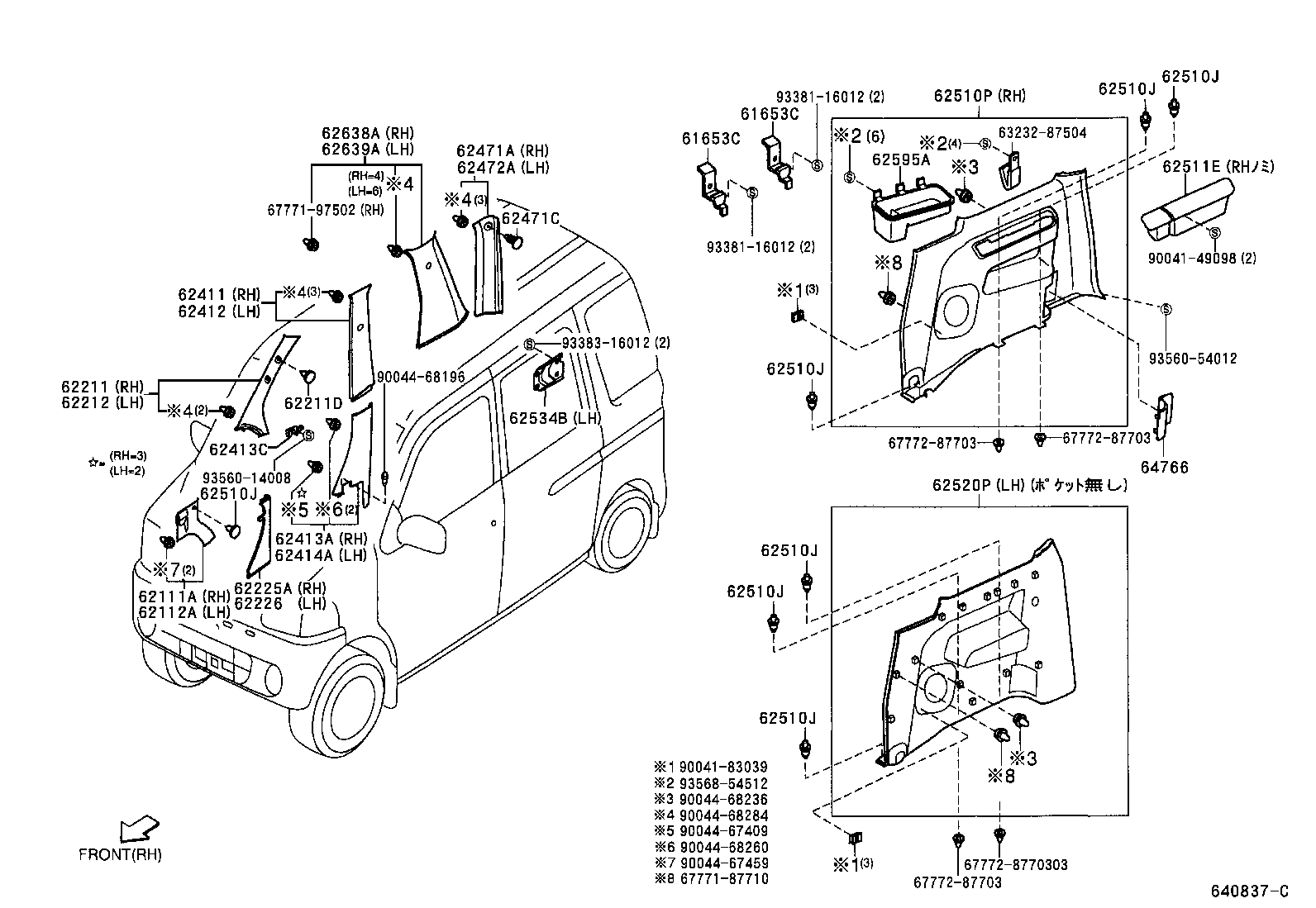

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61653C - BRACKET, DECK SIDE TRIM, RH | ||||
| 61653-97501 |
S221,231 |
2 | ||
| 61653C - BRACKET, DECK SIDE TRIM, RH | ||||
| 61653-97501 |
S221,231 |
2 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62111-9750113 |
S221,231 GRAY |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-9750113 |
S221,231 GRAY |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-9750303 |
S221,231 GRAY |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90044-6815933 |
S221,231 GRAY |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-9750303 |
S221,231 GRAY |
1 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-9750113 |
S221,231 GRAY |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-9750113 |
S221,231 GRAY |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-9750103 |
S221,231 GRAY |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-9750313 |
S221,231 GRAY |
1 | ||
| 62412-9750103 |
S221,231..G ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),GRAY |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-9750203 |
S221,231 GRAY |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 76557-87501 |
S221,231 |
3 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-9750203 |
S221,231 GRAY |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-9750303 |
S221,231..HIR GRAY |
1 | ||
| 62471C - CLIP(FOR REAR PILLAR COVER) | ||||
| 90044-68061A3 |
S221,231 GRAY |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-9750303 |
S221,231..HIR GRAY |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 90044-6816543 |
S221,231 GRAY |
6 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 90044-6816543 |
S221,231 GRAY |
6 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 90044-6816543 |
S221,231 GRAY |
6 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 90044-6816543 |
S221,231 GRAY |
6 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 90044-6816543 |
S221,231 GRAY |
6 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 90044-6816543 |
S221,231 GRAY |
6 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 90044-6816543 |
S221,231 GRAY |
6 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62511-9750403 |
S221,231 GRAY |
1 | ||
| 62511E - POCKET, QUARTER TRIM | ||||
| 62690-9750103 |
S221,231 GRAY |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62512-9750103 |
S221,231 GRAY |
1 | ||
| 62534B - BRACKET, QUARTER TRIM, LH | ||||
| 62534-97501 |
S221,231 |
2 | ||
| 62595A - POCKET, QUARTER TRIM, NO.2 | ||||
| 62595-9750103 |
S221,231 GRAY |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-9750203 |
S221,231 GRAY |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-9750203 |
S221,231 GRAY |
1 | ||
| 64766 - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-9750103 |
S221,231 GRAY |
1 | ||
| Common parts | ||||
| 63232-87504 | ||||
| 67771-87710 | ||||
| 67771-97502 | ||||
| 67772-87703 | ||||
| 90041-49098 | ||||
| 90041-83039 | ||||
| 90044-67409 | ||||
| 90044-67459 | ||||
| 90044-68196 | ||||
| 90044-68236 | ||||
| 90044-68260 | ||||
| 90044-68284 | ||||
| 93381-16012 | ||||
| 93383-16012 | ||||
| 93560-14008 | ||||
| 93560-54012 | ||||
| 93568-54512 | ||||
