S231E-ZMDF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

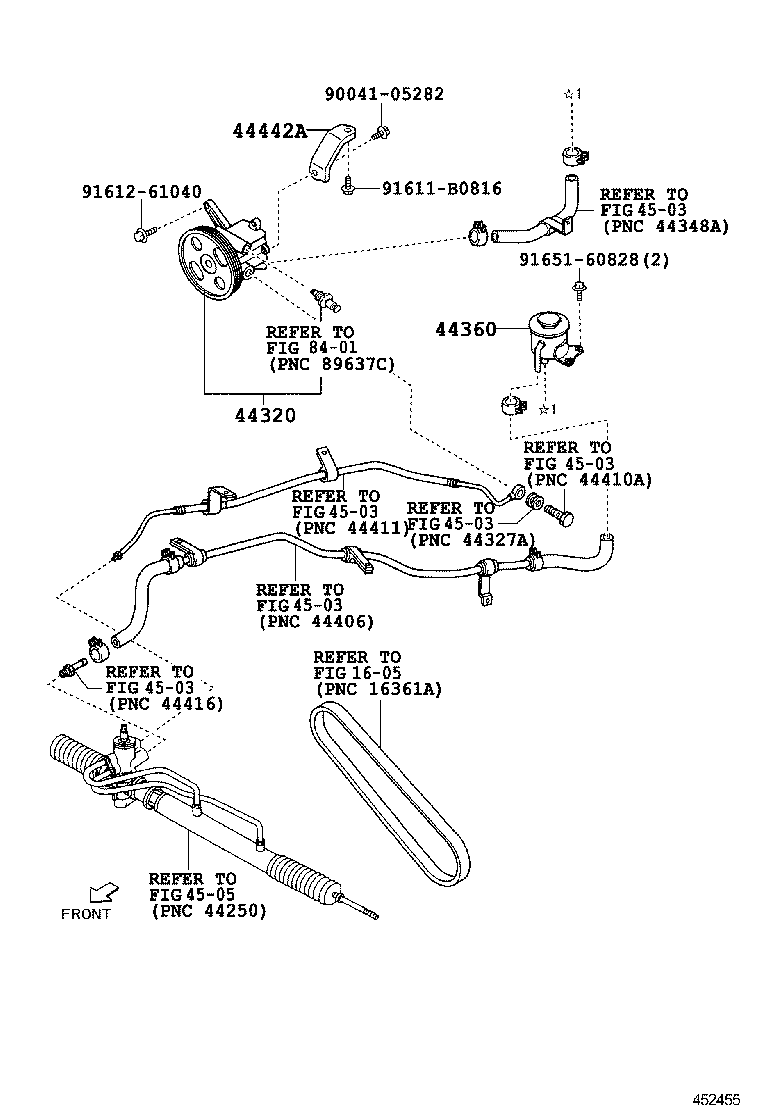

Click highlighted areas on diagram

diagram 1605 44320 44360 44442A 4503 4503 4503 4503 4503 4503 4505 8401 9004105282 91611B0816 9161261040 9165160828
Part # Description Qty Price
44320 - PUMP ASSY, VANE
44310-97503

S221,231

 1
44310-97505

S221,231

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-97503

S221,231

 1
44442A - BRACKET, VANE PUMP, REAR
44442-97502

S221,231

 1
Common parts
90041-05282
91611-B0816
91612-61040
91651-60828
Linked diagrams
1605
4503
4505
8401
