S231E-ZMDF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

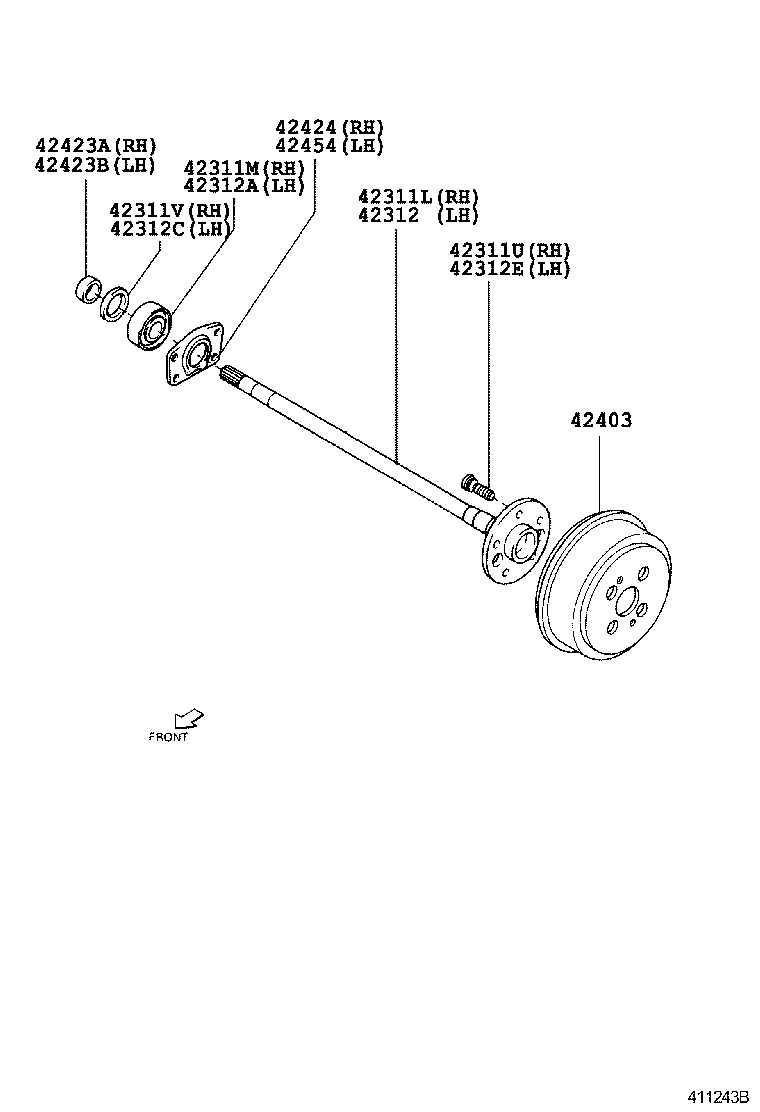

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-97502 |
S221,231 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90043-63248 |
S221,231 NACHI |
1 | ||
| 90043-63263 |
S221,231 NSK |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90049-12055 |
S221,231 |
4 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90043-11291 |
S221,231 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-97503 |
S221,231 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90043-63248 |
S221,231 NACHI |
1 | ||
| 90043-63263 |
S221,231 NSK |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90043-11291 |
S221,231 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90049-12055 |
S221,231 |
4 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-97502 |
S221,231 |
2 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-97502 |
S221,231 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-97502 |
S221,231 |
1 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-97501 |
S221,231 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42424-97501 |
S221,231 |
1 | ||
