S231E-ZMDF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )S231

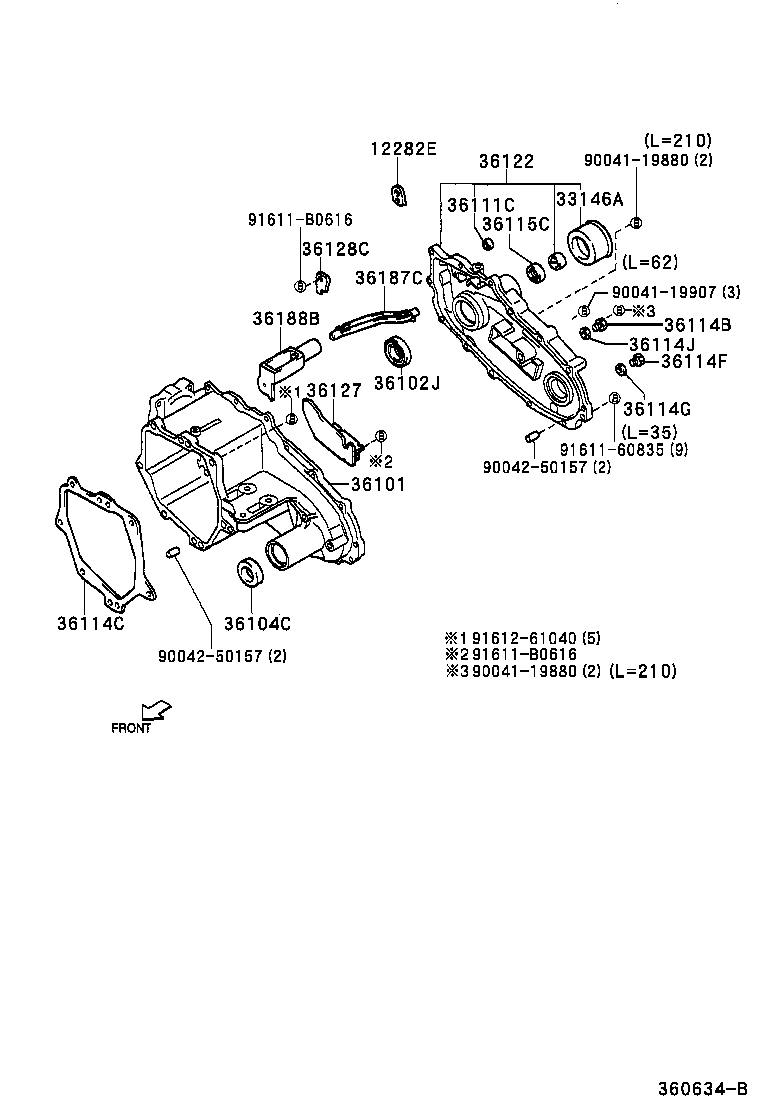

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12282E - HANGER, TRANSFER CASE | ||||
| 12282-87501 |
K3VE..S231 |
1 | ||
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-87402 |
S231 |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36101-97501 |
S231..5MT |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 88364-87501 |
S231 |
1 | ||
| 36104C - SEAL, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90043-11320 |
S231 |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90043-31029 |
S231 |
2 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-16012 |
S231 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 33142-87401 |
S231..5MT |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90043-41068 |
S231 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90044-30055 |
S231 |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 90044-30178 |
S231..4AT,5MT |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90043-11285 |
S231 |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36104-97501 |
S231..4AT,5MT |
1 | ||
| 36127 - PLATE, TRANSFER OIL | ||||
| 36127-87506 |
S231 |
1 | ||
| 36128C - PLATE, TRANSFER OIL SUPPLY | ||||
| 36128-87503 |
S231 |
1 | ||
| 36187C - PIPE, TRANSFER OIL SUPPLY, RH | ||||
| 36187-87502 |
S231 |
1 | ||
| 36188B - PIPE, TRANSFER OIL SUPPLY, LH | ||||
| 36188-87501 |
S231..5MT |
1 | ||
| Common parts | ||||
| 90041-19880 | ||||
| 90041-19907 | ||||
| 90042-50157 | ||||
| 91611-60835 | ||||
| 91611-B0616 | ||||
| 91612-61040 | ||||
