S231E-ZMDF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

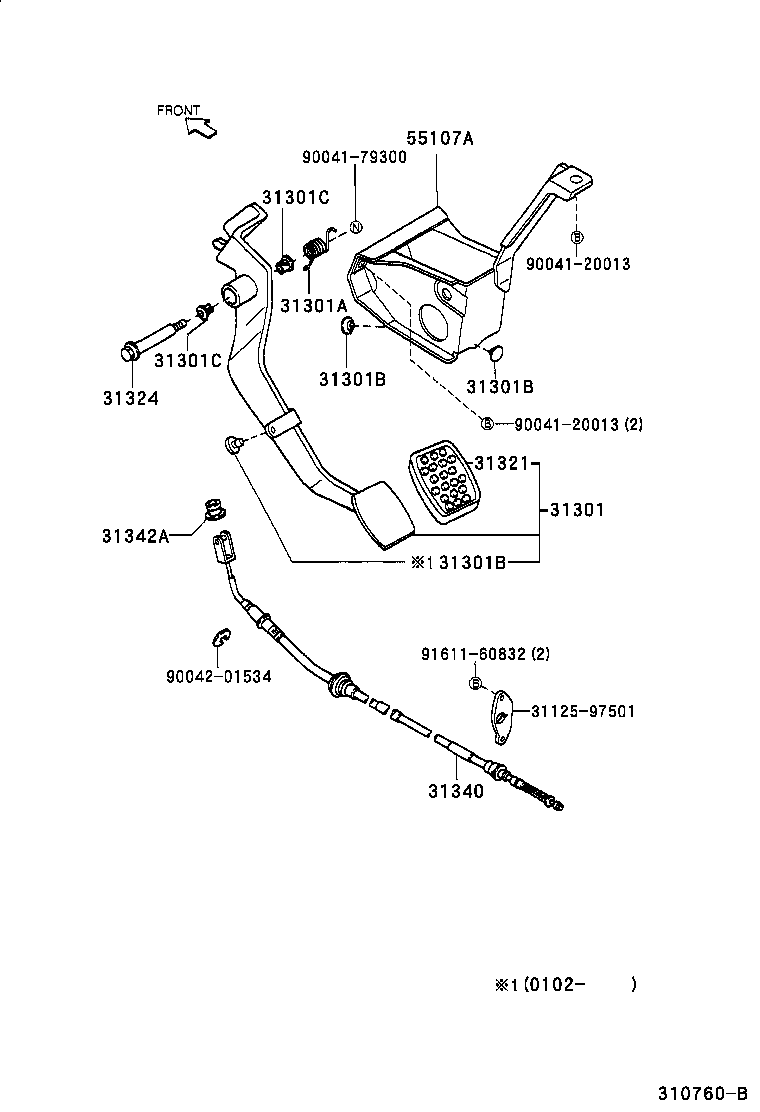

ILLUST NO. 1 OF 2(0009- )5MT

Click highlighted areas on diagram

diagram 3112597501 31301 31301A 31301B 31301B 31301B 31301C 31301C 31321 31324 31340 31342A 55107A 9004120013 9004120013 9004179300 9004201534 9161160832
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-97503

S221,231..5MT

 1
31301A - SPRING(FOR CLUTCH PEDAL)
31394-97505

S221,231..5MT

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90045-40158

S221,231..5MT

 3
90045-40158

S221,231..5MT

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90045-40158

S221,231..5MT

 3
90045-40158

S221,231..5MT

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90045-40158

S221,231..5MT

 3
90045-40158

S221,231..5MT

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90043-86121

S221,231..5MT

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90043-86121

S221,231..5MT

 2
31321 - PAD, CLUTCH PEDAL
31321-87503

S221,231..5MT

 1
31324 - SHAFT, CLUTCH PEDAL
31324-97501

S221,231..5MT

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-97504

S221,231..5MT

 1
31342A - BUSH(FOR CLUTCH RELEASE CABLE)
90043-85162

S221,231..5MT

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-97502

S221,231..5MT

 1
Common parts
31125-97501
90041-20013
90041-79300
90042-01534
91611-60832

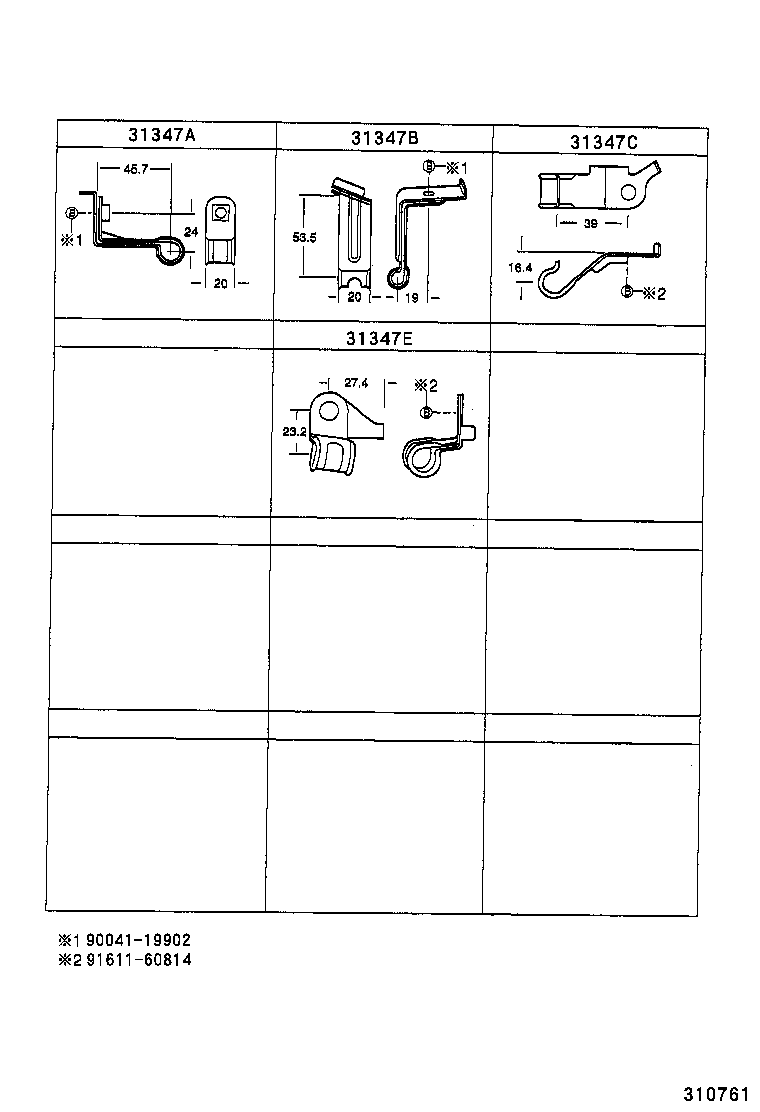

ILLUST NO. 2 OF 2(0009- )5MT

Click highlighted areas on diagram

diagram 31347A 31347B 31347C 31347E 9004119902 9161160814
Part # Description Qty Price
31347A - CLAMP, CLUTCH CABLE, NO.1
31347-97501

S221,231..5MT

 1
31347B - CLAMP, CLUTCH CABLE, NO.2
31347-97502

S221,231..5MT

 1
31347C - CLAMP, CLUTCH CABLE, NO.3
31347-97511

S231..5MT

 1
31347E - CLAMP, CLUTCH CABLE, NO.4
31347-97510

S221,231..5MT

 1
Common parts
90041-19902
91611-60814
