S231E-SQDF (2002)

Toyota Sparky

Production Jun 2002 - Mar 2003
Engine K3VE
Transmission 4ATS ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0009-0303)

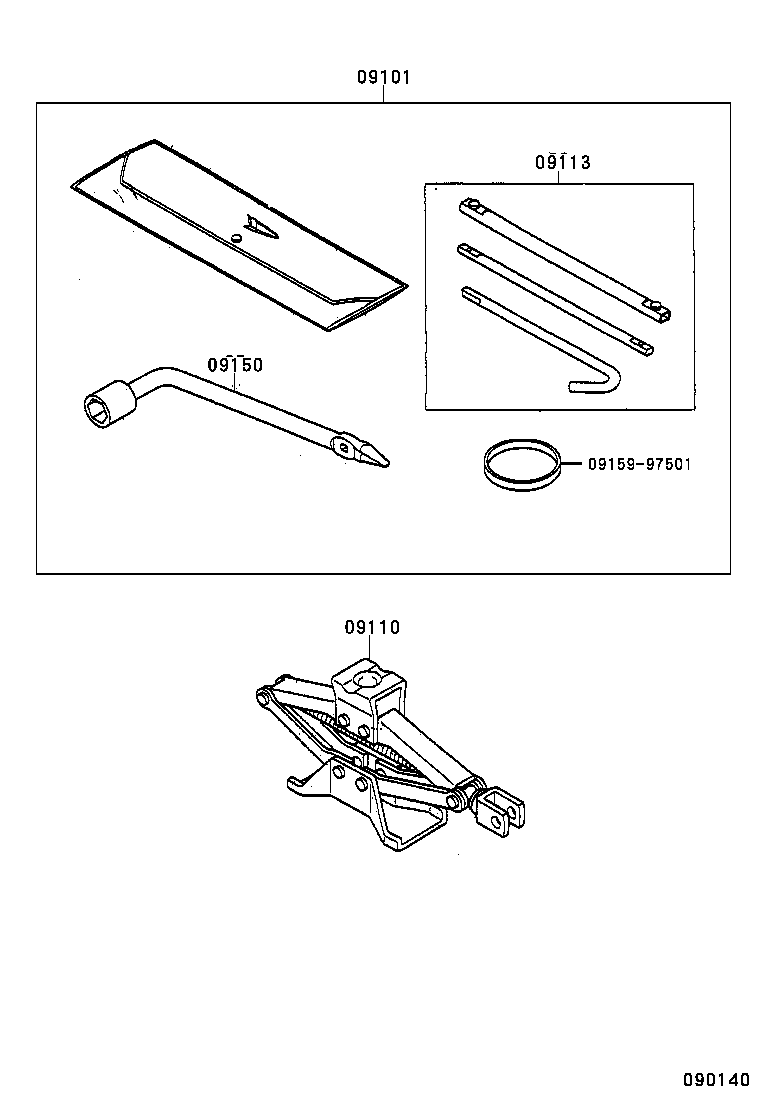

Click highlighted areas on diagram

diagram 09101 09110 09113 09150 0915997501
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-97503

S221,231

 1
09110 - JACK ASSY
09111-97502

S221,231

 1
09113 - HANDLE, JACK
09113-97501

S221,231

 1
09150 - WRENCH, HUB NUT BOX
09151-97501

S221,231

 1
Common parts
09159-97501
