S221E-ZPRF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

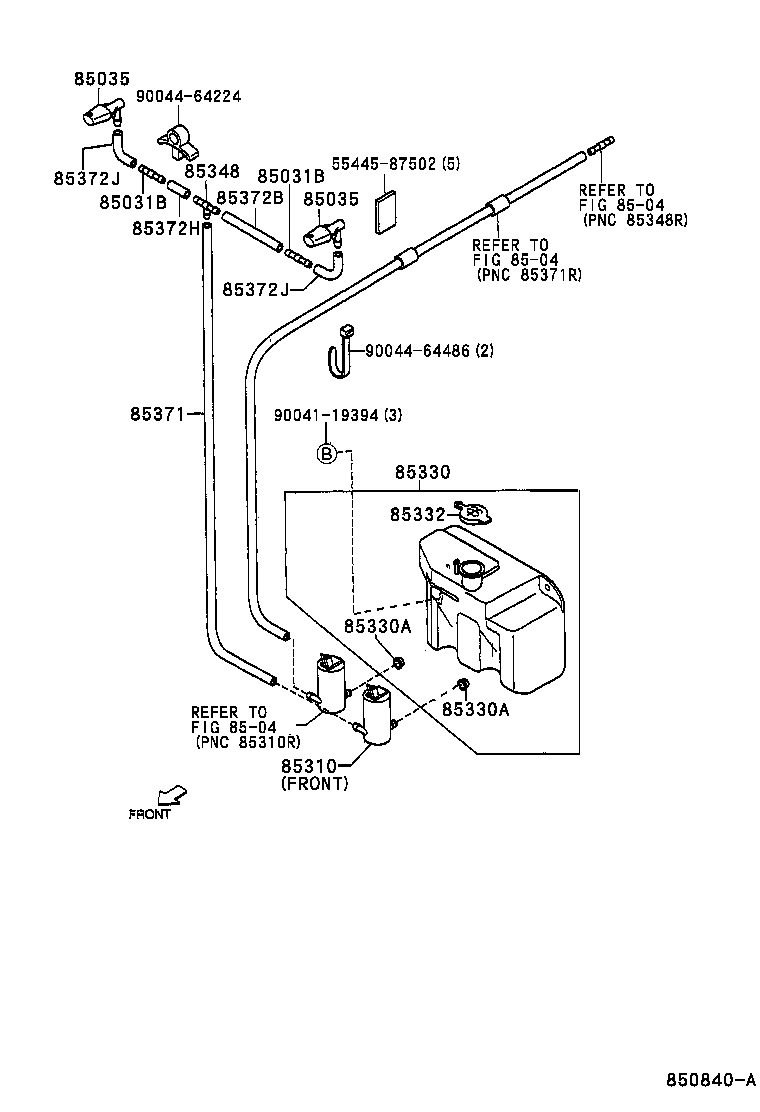

Click highlighted areas on diagram

diagram 5544587502 85031B 85031B 85035 85035 8504 8504 8504 85310 85330 85330A 85330A 85332 85348 85371 85372B 85372H 85372J 85372J 9004119394 9004464224 9004464486
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-87702

S221,231

 2
85031B - VALVE SUB-ASSY, WASHER
85031-87702

S221,231

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-97504

S221,231

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-97504

S221,231

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-97501

S221,231

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-97501

S221,231

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

S221,231

 2
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

S221,231

 2
85332 - CAP, WINDSHIELD WASHER JAR
85332-87203

S221,231

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-87501

S221,231

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85376-87202

S221,231

長さ=1000

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-06286

S221,231

*H,L=400

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33321

S221,231

*H,L=100

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85375-87502

S221,231

長さ=1000

 2
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85375-87502

S221,231

長さ=1000

 2
Common parts
55445-87502
90041-19394
90044-64224
90044-64486
Linked diagrams
8504
